• Model NO.：SMLN-120W
• Illumination Time：12h
• Cell Type：LiFePO4 Lithium
• Charging Time (H)：12
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS, IEC Soncap
• Voltage：12,24V
• With Light Source：With Light Source
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• CRI (Ra>)：90
• Working Lifetime(Hour)：50000
• Beam Angle：145*100°
• Working Mode：Full Power and PIR Sensor
• Lighting Area：100m²
• Lighting Time：Over 4 Nights
• Controller：PWM,MPPT
• Back up Days：4 Days
• Maintenance：9 Years Free Maintenance
• Mounting Height：7m
• Battery：42ah
• Lamp Luminous Flux(Lm)：21600
• Transport Package：1593X450X45mm
• Specification：1593X450X45mm
• Trademark：SunMaster
• Origin：Zhejiang China
• HS Code：9405409000
• Production Capacity：20000,Year

Basic Info.

Model NO. SMLN-120W Illumination Time 12h Cell Type LiFePO4 Lithium Charging Time (H) 12 Usage Garden, Street IP Rating IP65 Certification CE, RoHS, IEC Soncap Voltage 12/24V With Light Source With Light Source Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC CRI (Ra>) 90 Working Lifetime(Hour) 50000 Beam Angle 145*100° Working Mode Full Power and PIR Sensor Lighting Area 100m² Lighting Time Over 4 Nights Controller PWM/MPPT Back up Days 4 Days Maintenance 9 Years Free Maintenance Mounting Height 7m Battery 42ah Lamp Luminous Flux(Lm) 21600 Transport Package 1593X450X45mm Specification 1593X450X45mm Trademark SunMaster Origin Zhejiang China HS Code 9405409000 Production Capacity 20000/Year

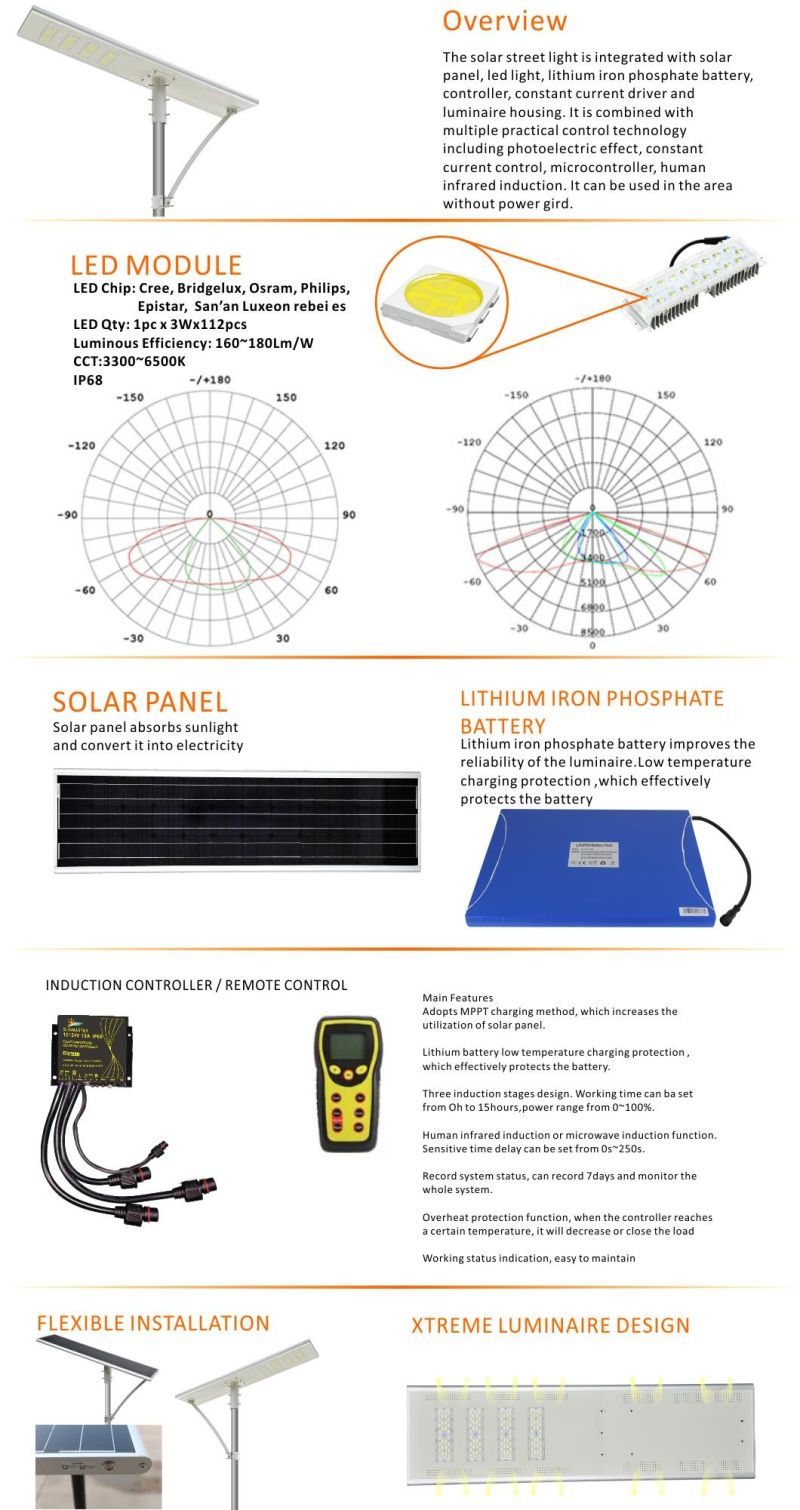

Product Description

1.Excellent quality LED and human induction PIR more senstitive.
2.MPPT Superier controller efficiency more than 96%,time control,light on/off.
3.LiFePO4 battery,good safety performance,high capacity,long life,high and low temperateure protection.
4.Unique lens design,with excellent illumination and light transmittance.
5.IP67 Metal switch,more durable.

Model NO.	SMLN-120W	Battery Type:	LiFePO4 32Ah/25.6V
Power:	120W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1593*450*45mm
Viewing Angle:	120	Packing Dimension:	1640*505*150mm
Working temperature :	,-20 ~ +70	Product Weight	29.74kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	9-12 m
Solar Panel:	18V 130W Mono-crystalalline	Warranty:	3 years
