Esavior Professional Manufacturer 80W Aio Integrated LED Solar Street Garden Light with Lithium Battery with IP67/Ik10/RoHS/CE
Esavior (Guangzhou) Green Energy Co., Ltd.- Warranty：5 Years
- Light Source：LED Lamp
- Lamp Body Material：Aluminum Alloy
- Light Type：Solar
- Color Temperature：2700K-6500K
- Power：120W (195lm,W)
Base Info
- Model NO.：BRZ-120W
- Technics：Electroplating
- Illumination Time：60 Hours
- Cell Type：LiFePO4 Lithium Battery
- Charging Time (H)：6
- Usage：Garden, Street, Highway
- IP Rating：IP66
- Certification：CE, RoHS, TUV-Sud
- Voltage：12,24V
- With Light Source：With Light Source
- Acutal Lumen Efficiency：180lm,W
- Batteries Capacity/Type：25.6V,30ah(768wh),LiFePO4 Lithium
- Discharge Time (Dim Mode)：More Than 60h
- Discharge Time (Bright Mode)：More Than 12h
- Lighting Time：5~7 Cloudy,Rainy Days Autonomy
- Full Charge Time by Solar：6 Hours at 1000W,Square Meter, 25 Celsius
- Monocrystalline Solar Panel：20% Conversion Efficiency
- Batteries Life-Span：8+ Years (2000 Circles)
- Charge Controller：MPPT(IP68)
- MPPT Tracking Efficiency：99.9%
- Viewing Angle：140,Customized Angles,Ies Type Available

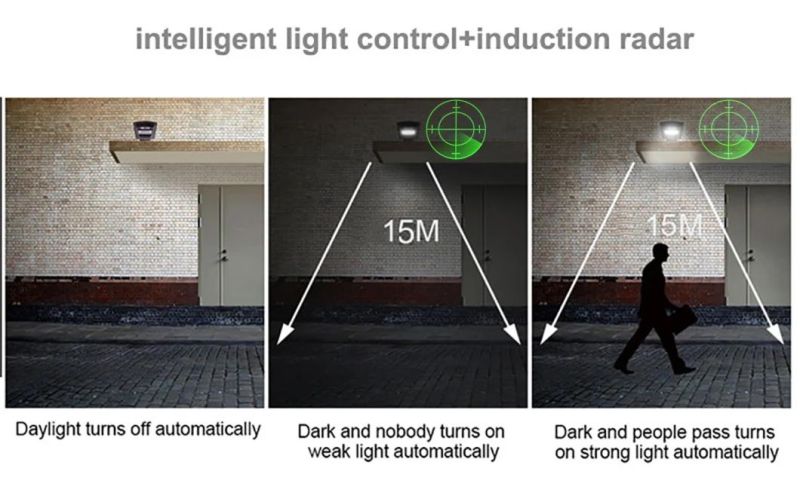

- Smart Function：Remote Control,Iot, Motion,Light Sensor,Timer
- Sensor：Microwave Radar (PIR &Timing as Optional)
- Mounting Height：10~12 Meters
- Transport Package：Customary Carton, OEM Acceptable
- Specification：1350*520*55mm; 17.4 kgs(N. W)
- Trademark：ESAVIOR , OEM
- Origin：China (Mainland)
- HS Code：9405409000
- Production Capacity：50, 000 Sets,Month
Description
Features and Advantages
LONG LIFE-LED-STEET light fixtures Extremely 10000+ hours long life reduces re-lamp frequency.

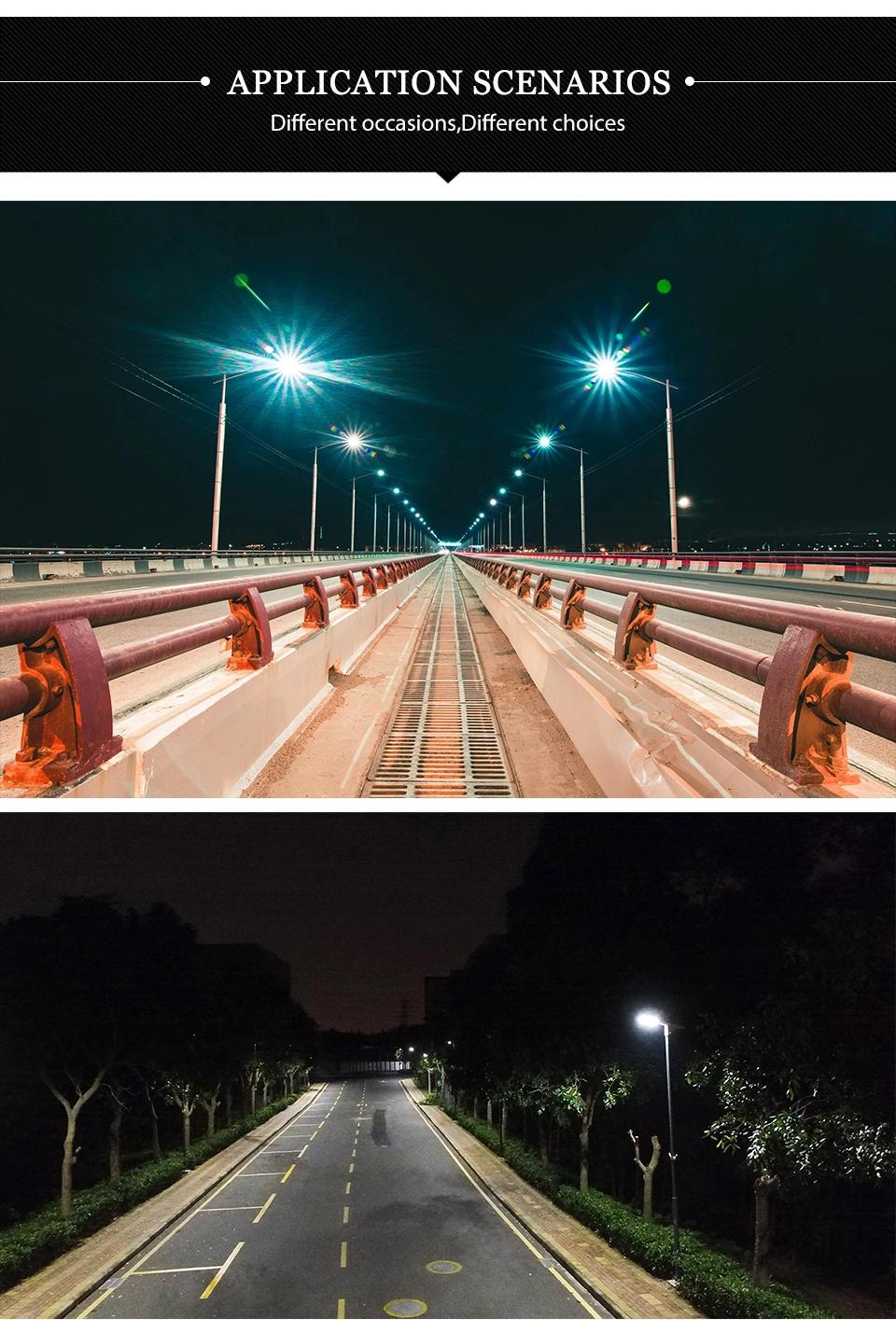

- Applications
LED Light Source
Rated Power
24V/ 120W (36LEDsx4 modules)
LED Brand
3030 (LED Lumen: 195lm/W)
Lumens(LM )
10800-12000lm
Life-span
100,000 hours
Color Temp. (CCT)
5000K (2700~6500K Full range available)
CRI >70
Viewing A ngle
140° (Customized Angles & IES Types Available)
Solar Panel
Power
36V/120Wp (High Efficiency Mono PV)
Life-span
25 years
Batteries
Capacity/Type
25.6V/30AH (768WH) / LiFePO4 Lithium
Life-span
8+ years (3000 circles @60% DoD)
Controller
Type
MPPT / IP68/IoT Online Monitoring as Optional
Sensor
Microwave Radar (PIR & Timing as optional)
Full Charge Time
Discharge Time
By Solar
6 hours (STC: 1000W/Sqm, 25ºC )
Dim Mode
>60 hours
Bright Mode
>12 hours
Working Temp.
-30ºC~+80ºC
Mounting Height/Brackets
10~12 m/ Available Brackets: Post Top
Space Between Lights
35~40m
Materials
Aluminium Alloy
Certificate
CE / ROHS / IP66/ IK08/ TÜV-SUD ISO9001/ ISO14001
Warranty
5 years
Certifications
Company Profile

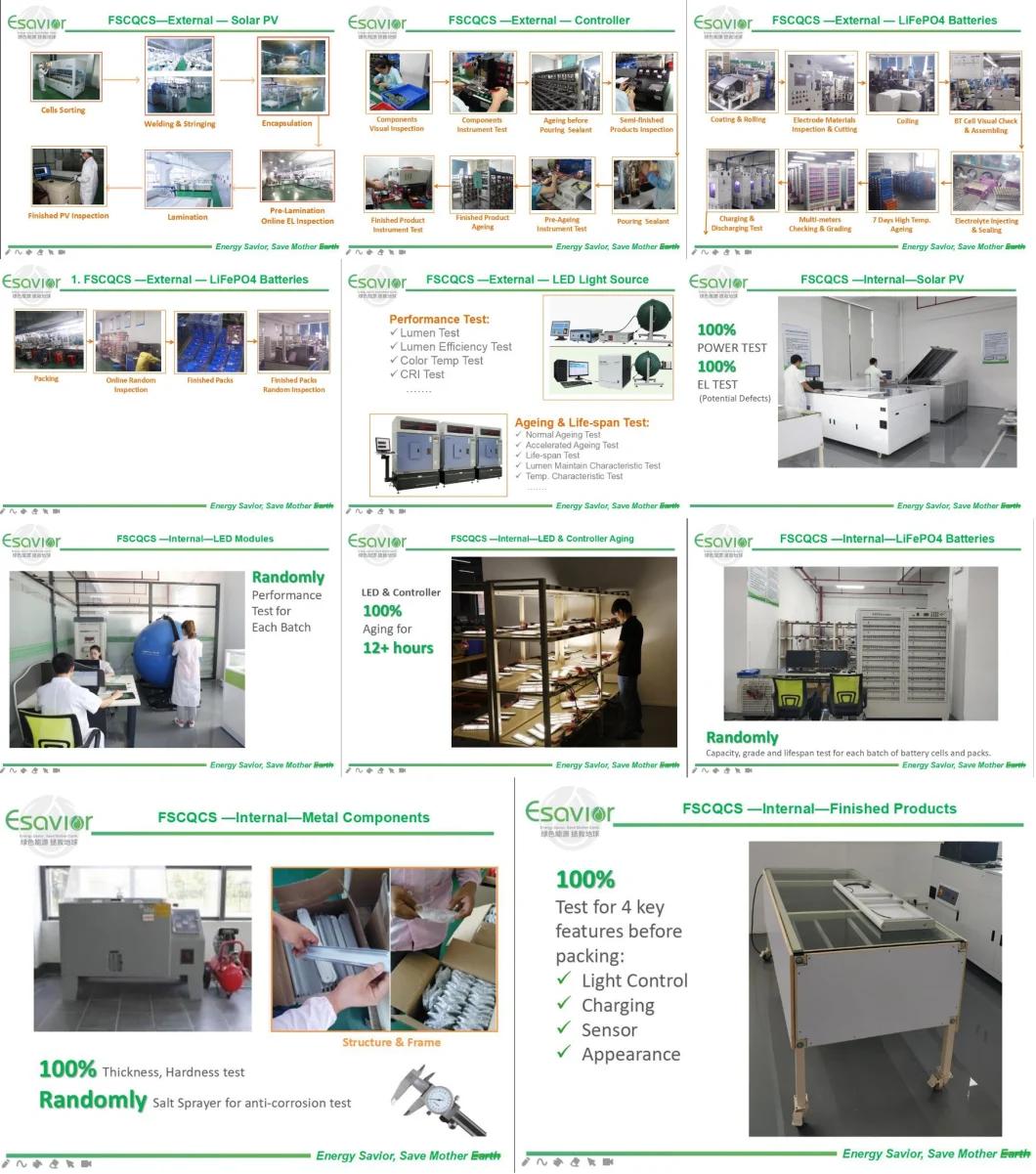

Full Supplier Chain QA System
Communications & Cooperations

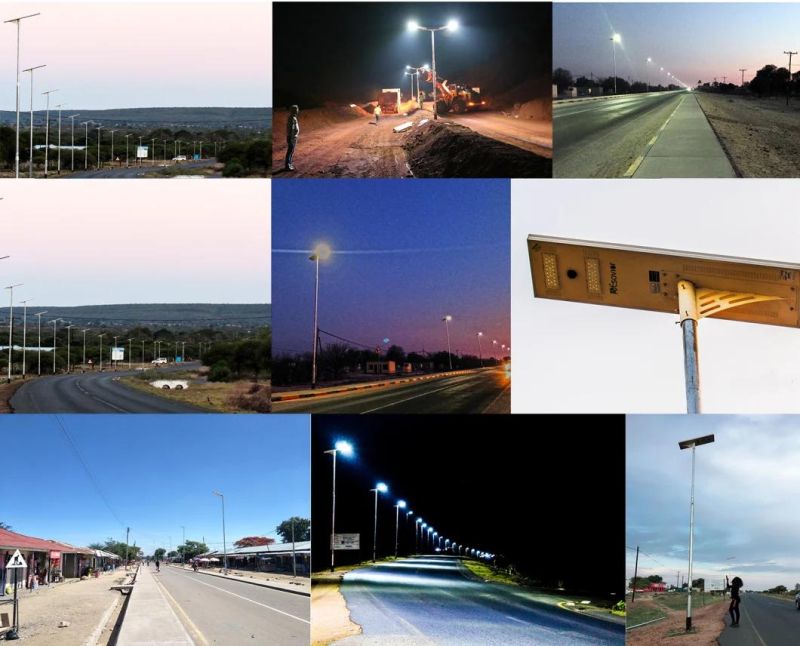

ESAVIOR'S Projects
Costomers' Visits
RFQ:Q1: Does the lamp light on automatically?
A: Yes, it will light on automatically at darkness no matter which mode except "OFF".Q2: Can I order a samples for solar street light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q3: What about the lead time?
A: 3 workdays for sample, 7-15workdays for batch order(more than 100pcs).Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.Q5: Can the lamp be used in strong wind environment?
A: Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.Q6: What's the difference between Motion sensor and PIR sensor?
A: Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement.PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance.But motion sensor can reach 10 meters distance and be more accurate and sensitive.Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.05%.Secondly, during the guarantee period, we will send replacements with new order for small quantity.
Thank you for your attention! Welcome to send us inquiry for more information!
