• Model NO.：SMR-SSL
• Illumination Time：6h
• Cell Type：LiFePO4 Battery
• Charging Time (H)：6
• Usage：Garden, Street, Parking Lot, Highway etc
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Lamp Power：15W ~ 120W Available
• LED Chip Brand：SMD 3030, 5050 or Other
• Initial Luminous Flux：190 Lm , W
• Viewing Angle：140°
• Solar Panel：Monocrystalline or Polycrystalline Available
• Battery Type：Gel Battery, LiFePO4 etc Available
• Rainy Days Back up：3 ~ 5 Days
• Working Temperature：-25° ~ +65°
• Lighting Function：Automatic Light, Time Control, or PIR Control etc
• Working Hours：Customize
• Service Life：>80000h
• OEM/ODM：Available
• Warranty：3 ~ 5 Years Available
• Transport Package：Cartons or Customized
• Trademark：Smile
• Origin：China
• HS Code：9405409000
• Production Capacity：100000 Sets Per Year

Technical ParametersModel No.SMR-AIO-20WSMR-AIO-30WSMR-AIO-40WSMR-AIO-50WSMR-AIO-60WSMR-AIO-80WSMR-AIO-100WSMR-AIO-120WLamp Power20W30W40W50W60W80W100W120WLuminous Flux3200 lumens4800 lumens6400 lumens8000 lumens9600 lumens12800 lumens16000 lumens19200 lumensColor Temperature3000K ~ 6500KOptical DistributionBat WingBeam Angle140°CRI>70LED Lighting SourceLed module designMono Solar Panel5 V, 40W5 V, 65W5 V, 75W18 V, 80W18 V, 100W18 V, 120W18 V, 140W18 V, 170WLiFePO4 Battery3.2V, 40Ah3.2V 60Ah3.2V 80Ah12.8V, 30Ah12.8V, 40Ah12.8V, 50Ah12.8V, 60Ah12.8V, 70AhControllerPWM or MPPT controller optionalPIR SensorIncludedCharging Time5 ~ 6 hoursDischarging Time36 hoursIP RateIP 65Lamp FixtureHigh-Pressure Die-Casting Aluminum. Corrosion ResistantDimension of Product755 x 359 x 43 mm1108 x 359 x 43 mm848 x 519 x 43 mm928 x 519 x 43 mm1195 x 519 x 43 mm1382 x 519 x 43 mm1628 x 528 x 43 mm1945 x 528 x 43 mmNet Weight of Product9 Kg11.7 Kg13.7 Kg18 Kg22 Kg32 Kg43 Kg47 KgWorking ModeTime Control  or  PIR Motion Sensor ControlWorking Temperature -25ºC ~ 65ºCRainy days back up3 ~ 5 days

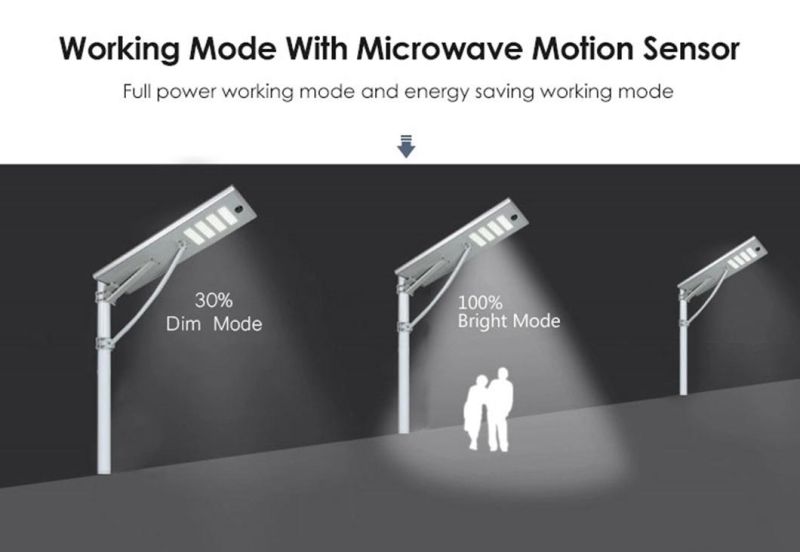

1, There are two working modes for integrated light: full power working mode and energy saving working mode.

2, Energy saving working mode means the light will dim to 30 % working efficiency when nobody passes by. When people or vehicle passe by, the sensor will detect the motion and the light will lighten up to 100% efficiency. The brightness of the light will be reduced gradually to 30% after the people and vehicle pass away.





Q1, Can I have a sample order for led light ?
A : Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2, What about the lead time ?
A : Sample needs 3 ~ 5 days, mass production time needs 1-2 weeks for order quantity more than

Q3, Do you have any MOQ limit for led light order ?
A : Low MOQ, 1pc for sample checking is available

Q4, How do you ship the goods and how long does it take to arrive?
A : We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5, How to proceed an order for led light ?
A : Firstly, let us know your requirements or application.
     Secondly, we quote according to your requirements or our suggestions.
     Thirdly, customer confirms the samples and places deposit for formal order.
     Fourthly, we arrange the production.

Q6, Is it OK to print my logo on led light product ?
A : Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7, Do you offer guarantee for the products ?
A : Yes, we offer 2-5 years warranty to our products.

Q8, How to deal with the faulty ?
A : Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
     Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
