• Model NO.：INL-AIO1
• Cell Type：LiFePO4
• Charging Time (H)：6
• Usage：Garden, Street
• IP Rating：IP67
• Certification：CE, ISO9001
• Voltage：12,24V
• With Light Source：With Light Source
• Application：Street, Road, Highway, Pathway, Sidewalk, Park
• Color：Grey
• Design：LiFePO4 Battery Is Built in Lamp Fixture
• Transport Package：720*340*135mm
• Specification：20W ~120W
• Trademark：INLUX SOLAR
• Origin：China
• HS Code：9405500000
• Production Capacity：200000 Sets, Year

Lighting ParametersLamp Power10WLuminous Flux1200 lumensColor Temperature3000K~ 6000KOptical DistributionBat Wing, TypeIIBeam Angle120°CRI>70Physical ParametersMono Solar Panel10W/5VLiFePO4 Lithium Battery12AH/3.7V (44.4WH)ControllerMPPT controllerPIR SensorincludedCharging Time5 hoursDischarging Time36 hoursIP RateIP 65Lamp FixtureHigh-Pressure Die-Casting Aluminum. Corrosion ResistantLamp Arm AdaptorDiameter 55-65mmDimension of Product478*228*138mmNet Weight of Product6.2kgWorking Mode (PIR Motion Sensor Control)Working Hours per Night12 hoursContinues Rainy Days Backup3 daysEnvironment RequirementsCharge Temperature-5-55ºCDischarge Temperature-20-55ºCStorage Temperature0-50ºC

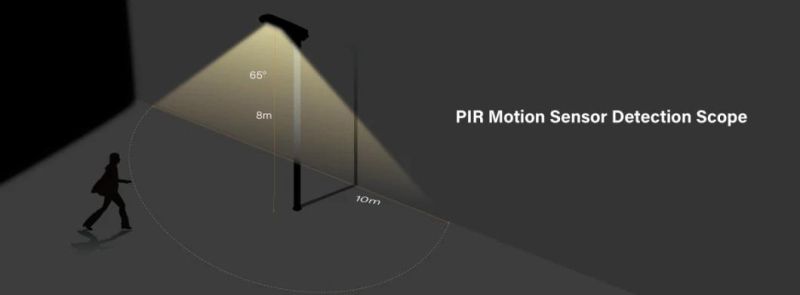

WORKING MODE

12 Lighting Hours/Night +PIR Motion Sensor Control
It is 100% power working when human being detected, and 25% power default setting when no human being detected.


>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days



LIGHTING EFFECT
 INL-AIO1-10W installed on 4 meters pole.



INSTALLATION
