• Model NO.：RB-STC-100W
• Application：Highway, Square, Garden
• IP Rating：IP65
• Certification：CE, RoHS, UL, FCC, EMC
• Voltage：220V
• Chip：SMD3030 Street Outdoor Luminaires
• Driver：Meanwell 100W Street LED Light
• Warranty：5 Year Long Life Time Street LED Light
• Color：Ww,Pw,Cw
• CRI：80
• Power Range：250W 300W LED Parking Lot Light
• Output：130lm,W High Output Streetlight
• CCT：4000K,5000K,6000K,7000K
• Dimmable：0-10V,PMMA,Dali Dimmable
• Grade：IP66 Pole Mounted LED Street Light
• Transport Package：in Carton and Foam
• Specification：CE, EMC, UL
• Trademark：Rayborn
• Origin：China
• HS Code：94054090
• Production Capacity：40000PCS,Month

150W LED Street Light Technical ParametersItem No.:RB-STC-150WInput Voltage:AC 100-277V/480VFreqency Range:50Hz~60HzPower Factor:>0.95Power Efficiency:>90%LED Power150WLED QTY: 156PCS LEDLED Working Voltage:DC 40-48VSystem Consumption:149WLED Luminous FluxWarm White18000LMPure White19000LMCool White19500LMColor TemperatureWarm White3000K~3300KPure White4000K~5700KCool White6000K~6500KCenter Illuminance3 Meter634 lux4 Meter221 lux5 Meter171 luxViewing Angle:90*140 degreeIlluminance Uniformity:>0.6Color Rendering IndexRa>80Light Distribution:LED points visibleLight Design:LED+ReflectorLED Junction Temperature:≤115ºCWorking Temperature:-35ºC~55ºCIP Grade:IP65 Working Life-span:50000 HPower Line:1.0 m three line

LED Street Light/ LED Parking Light Features:

LED Parking lot light adopted optical light distribution, that is no glare, no light pollution, highly directional light and more even luminous beam.

1.Module lens design make the lamp with well suited lighting distributing for LED parking lot lighting.

2.Hollow out heat sink design make the lamp weight lighter and have good heat dissipation.

3.5 kinds of installation brackets.

4.Good-looking appearance. lamp luminous efficiency reaches 120lm/w.,

5.Lighting distribution curve: 85*140

6. Can be with photocell sensor and motion sensor.

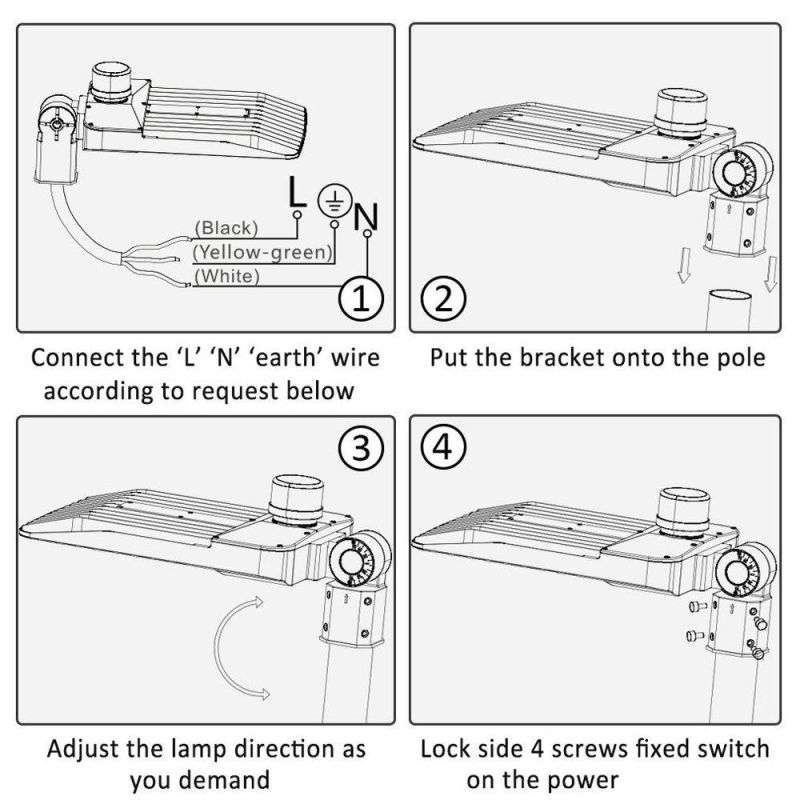

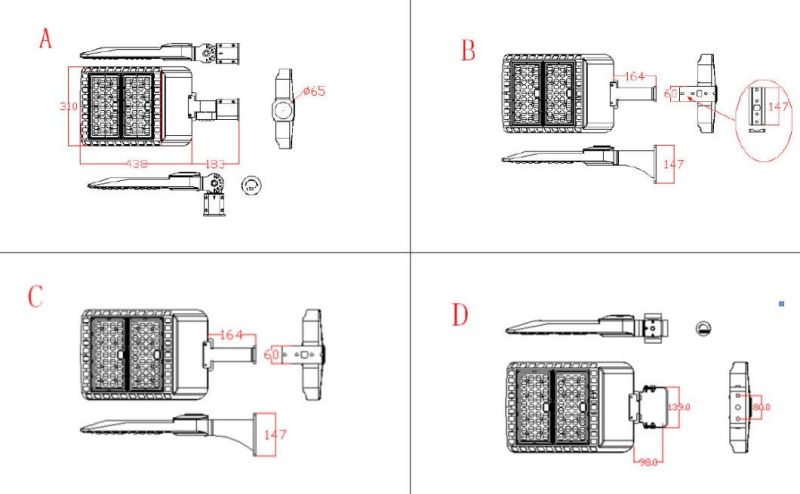

Rayborn LED Street Light/LED Parking Lot Light Size/Install:







Certification:

LED Street Light Transportation:

 Application:


Trade Terms:

1. Payment: T/T, L/C at sight, Western Union available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port: Shenzhen, China
5. Discouts are offered based on order quantities
6. MOQ: 50pcs

Rayborn Services:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. OEM & ODM are welcomed, OEM brand is available.
3. Any defective products within warranty will get maintenance or replacement unconditionally.
4. Protect your sales area
