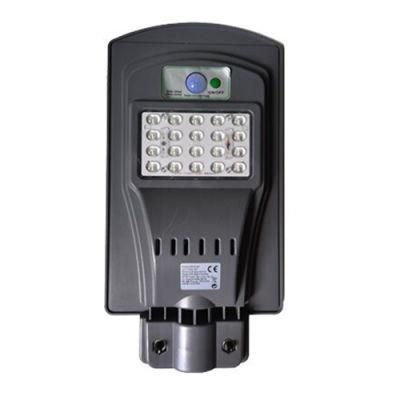

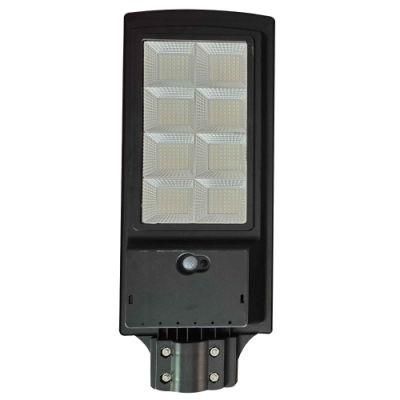

High Performance 30W Solar LED Street Light 140lm/W Luminous with ISO Approved

Yangzhou Phoebus Outdoor Lighting Co., Ltd.
  • Light Luminous Efficiency：>130lm,W
  • Color Rendering Index：Ra>80
  • Power Factor：>0.95
  • Uniformity：>0.8
  • Packing Size：700*310*180mm
  • Weight：6.5kg

Base Info

  • Model NO.：PBLED07-07
  • Install Diameter：48mm - 60mm
  • Transport Package：Carton and Bubble
  • Specification：530*280*156mm
  • Trademark：Phoebus
  • Origin：Jiangsu, China(Mainland)
  • HS Code：9405410000
  • Production Capacity：500000 Pieces,Year

Description

Basic Info.

Model NO. PBLED07-07 Install Diameter 48mm - 60mm Transport Package Carton and Bubble Specification 530*280*156mm Trademark Phoebus Origin Jiangsu, China(Mainland) HS Code 9405410000 Production Capacity 500000 Pieces/Year

Product Description

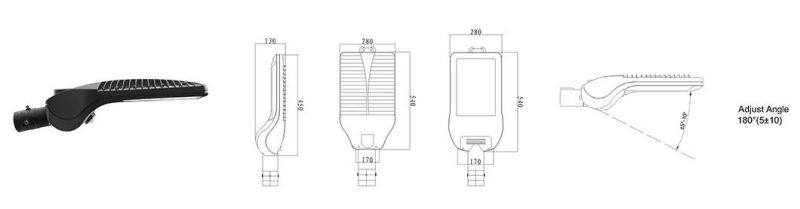

High Performance 30W Solar LED Street Light 140lm/W Luminous with ISO ApprovedTXLED-07 LED Street Light CAD Design
High Performance 30W Solar LED Street Light 140lm/W Luminous with ISO ApprovedEuropean Design 30W LED Street Light Specifications
Power30W
LED SMD chipImported famous brand
Cover MaterialHigh-Pressure Die-Casting Aluminum,corrosion-resistant power coating
Application with Polyester Substance in its Surface
Implement of ReflectMade of High Purity Aluminum
CoverHigh Strength and High Transparent Toughened Glass 3mm
Fastener Bolt and ScrewsStainless Steel
LensPolycarbonate
Heat SinkYes
Light Luminous Efficiency>130lm/W
Chip Luminous Efficiency>150lm/W
Uniformity>0.8
LED Luminous Efficiency>90%
Color temperature3500K~6500K
Color Rendering indexRa>80
Input VoltageAC90~305V,50~60hz
Power Efficiency>90%
Power Factor>0.95
Working environment-60ºC~70ºC
IP ratingIP65
Working life>80000hours
Size530*280*156mm
Warranty5 Years
LED DriverMeanwell
Packing Size(1PC/CTN)730*310*180mm(2PCS/CTN)
Weight6.5KGS
Product Complied withCE(EU),CE(LVD),IEC,RoHS,IK08,IP65,CB,IES,TM21,LM80
Company Complied withISO9001,IS014001,ISO18001,CCC

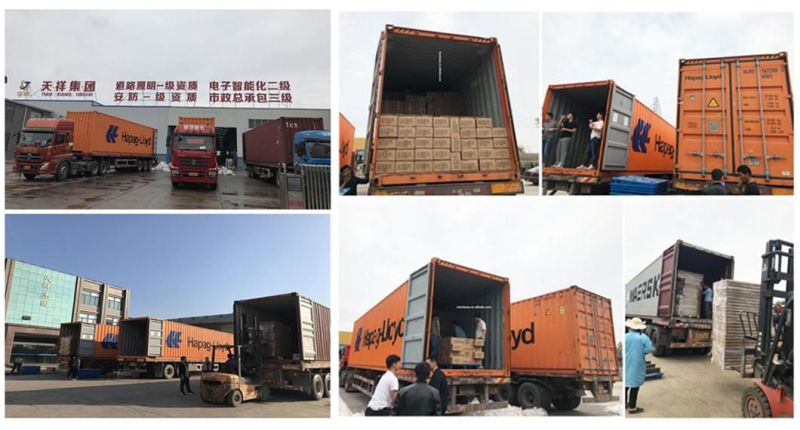

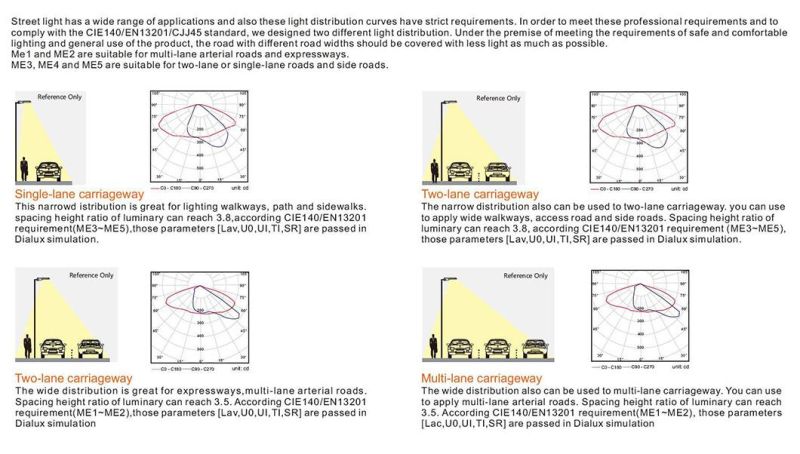

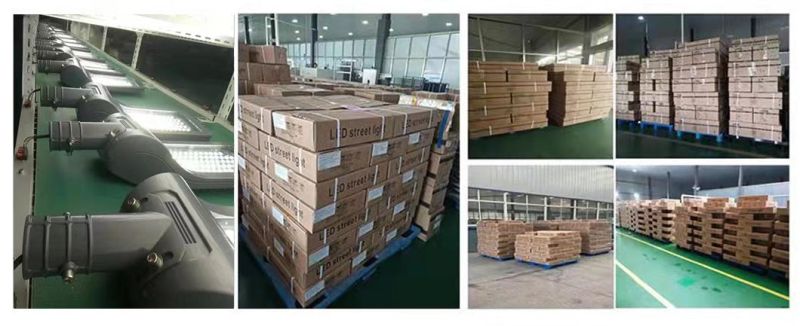

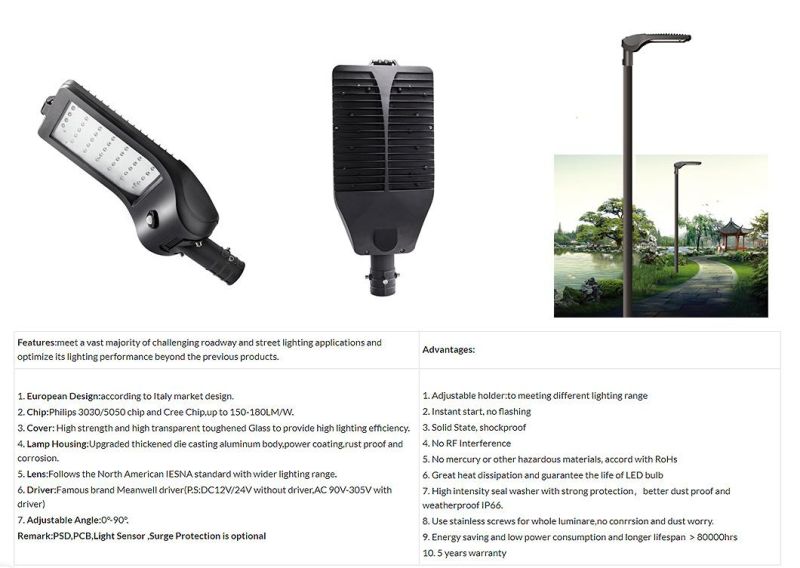

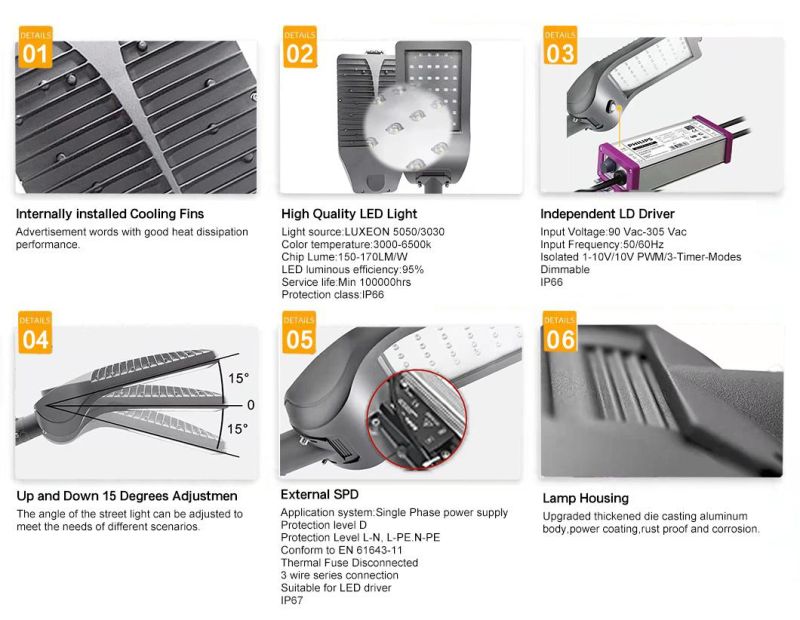

TXLED-07 LED Street Light Parts DetailsHigh Performance 30W Solar LED Street Light 140lm/W Luminous with ISO ApprovedTXLED-07 Lighting SimulationHigh Performance 30W Solar LED Street Light 140lm/W Luminous with ISO ApprovedPhoebus LED Street Light Testing and PackingHigh Performance 30W Solar LED Street Light 140lm/W Luminous with ISO ApprovedHigh Performance 30W Solar LED Street Light 140lm/W Luminous with ISO ApprovedHigh Performance 30W Solar LED Street Light 140lm/W Luminous with ISO ApprovedHigh Performance 30W Solar LED Street Light 140lm/W Luminous with ISO ApprovedHigh Performance 30W Solar LED Street Light 140lm/W Luminous with ISO ApprovedOUR SERVICES
Before- Sales Service:1.Quick Response: 24Hrs Online Service.2.Competitive Quotations: Professional And Competitive Factory Price,Based On Superior Quality.3.Factory Visiting:Online And Offline Factory Tour Guidance. New Factory Workshop Space Of 65000m²,Add Old Factory Space Of 6300m². 4.Value-added Service : Provide CAD Drawings, Project Site DIALUX Analysis, OEM Nameplate.5.Sole And General Agent Service Available:  According To The Details Of The Order.
6.OEM&ODM: Any Your Customized Lighting We Can Help To Design And Apply In Product.
7,Sample Support :1 Piece Sample Support To Do Quality Test And Display.
8,Multiple Payment: Methods by TT, L/C or Cash, Logistics Customs Clearance Services.

Medium-Sales Service:1.Raw Material And Testing: Stick To Superior Quality Famous Brand Raw Material. Scientific Product Testing Management.2.Photo Feedback: Feed Back Of Production Process, Packing And Inspections.3.Quality Control: 100% Product Quality Inspections Before Shipping.4.Provide Certificates: CE, SGS, ROHS, TUV And SONCAP, PVOC, CQC, SASO,etc. 5.Packing: Exquisite Packaging With Export Carton And Protection Foam, Export Pallets Or Wooden Cases.
After-Sales Service:1.Product Warranty: 5-10 Years Warranty. Provide Manufacturer's Quality Warranty Certificate. 100% Quality Questions Follow Up Within Warranty Period.2.Spare Parts: Free 1% As Spare Parts For Replacement In Case Any Defect, Or Replace New Products For Quality Problem Within Warranty Period.3.Loading And Logistics: Detailed Packing And Loading List For The Order Send By Email After Shipping. Timely Logistics Tracking.4.Installation Guide:  One To One Video Guide Or PPT Display, On Site Installation Guide For Big Order.
5. Protection Of Private Information: Your Sales Area, Ideas Of Design And All Your Private Information.
High Performance 30W Solar LED Street Light 140lm/W Luminous with ISO ApprovedFAQ
1.Are Phoebus lighting and TianXiang the same company or not?
A: Yes, they are the same company but different offices. Phoebus lighting are Tianxiang's primary brand.

2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

3. Is it OK to print my logo on led light product?
A: Yes. It's welcomed. We do many OEM and ODM for customers.
Please inform us formally before our production and confirm the design firstly based on our sample.
4. Are Phoebus lights any good? Why choose us?A: Phoebus lighting use all the best material, provide reasonable solar lights solutions with original price. We aim to do long time business and services. Phoebus lighting are your Engineering and installation specialists.
