• Model NO.：SNSTY-240
• Application：Highway, Square, Garden
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12V,24V
• Product Keyword：40watt La Luminaria LED Solar Integrada
• LED Lamp：40W
• Solar Panel Power：70W 18V
• LED Brand：Bridgelux
• Lithium Battery：36ah 12V
• Working Method：3 Options
• Timer Control：Yes
• Human Sensor：Yes
• Cellular Phone Programming：Yes
• Warranty：3 Years
• Transport Package：Strong Carton
• Specification：ISO 9001
• Trademark：SINOLTECH
• Origin：China
• HS Code：94054090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. SNSTY-240 Application Highway, Square, Garden IP Rating IP65 Certification CE, RoHS Voltage 12V/24V Product Keyword 40watt La Luminaria LED Solar Integrada LED Lamp 40W Solar Panel Power 70W 18V LED Brand Bridgelux Lithium Battery 36ah 12V Working Method 3 Options Timer Control Yes Human Sensor Yes Cellular Phone Programming Yes Warranty 3 Years Transport Package Strong Carton Specification ISO 9001 Trademark SINOLTECH Origin China HS Code 94054090 Production Capacity 10000PCS/Month

Product Description

40W LED Integrated ALL IN ONE Solar Powered Street Light (SNSTY-240)
6W-120W All in one integrated solar garden and street light for public square, plaza, courtyard, garden, park, street, roadway, pathway, parking lot, private road, sidewalk, campus, airfield, farm & ranch, perimeter security, wildlife area, military base etc.

The integrated solar street light is an intelligent outdoor lighting system that integrates the best energy saving parts---solar panel, led lamp ,sensor, controller and lithium battery all in one box.
During the day the highly efficient solar panel collects energy from the sun and stores the power in the advanced lithium battery.
At night the powerful Led would automatically be turned on providing light. When motion is detected,the Led would increase in brightness to provide an abundance of extra lighting for anyone in the area.
After 20 seconds or when motion is no longer detected, the light drops down in brightness to conserve power.
This intelligent feature allows the solar powered street light to save power when no one is in range or utilizing the light, meaning a much longer run time than you would expect from a similar size solar lighting.
Features:
a. Integrated design, integrated light source, the new high-capacity lithium batteries, integrated solar modules and automatic controller,motion sensor.
b. Easy to install and maintain, without cables,without equipped with special poles, functional components of a modular design, installation, maintenance,more convenient and   more quick.
c. Using solar power systems, pure green energy, inexhaustible,optimal energy for environment.
d. High-capacity lithium-ion batteries, high energy, long life, light weight, green environmental production, does not produce any harmful substances.
e. Using LED light source, no diffuse effect, with a high light efficiency, coupled with a unique secondary optical design, exposure to the wider region, to improve the efficiency of light once again. And the LED light source has a long life, high luminous efficiency, light color uniform and other advantages, also the best blue green products.
f. Shell is made of aluminum material with light weight, corrosion resistance, abrasion
resistance and other characteristics, to ensure that products meet moist, hydroelectric
acid environment.
g. Control system uses industrial-grade components manufacturing, adapt to harsh environments, and ensure to bright all the night.

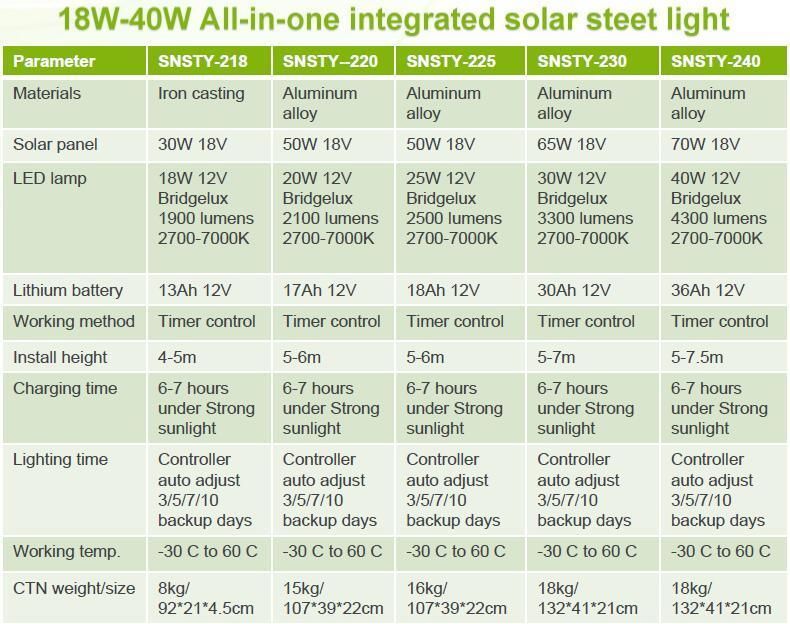

Specification Date for 40W ALL IN ONE SOLAR STREET LIGHT:


How to choose the best suitable products?
a. Installation height 7-10M: normally select SNSTY-230, SNSTY-240, SNSTY-250, SNSTY-260, LED power are 30W, 40W, 50W, 60W characteristics are high brightness, high power, a wide range of lighting.
Ideal for school sports, docks, ports and other places or width of 15-25 meters of road.
b. Installation height 5-7 M: normally select SNSTY-215, SNSTY-218, SNSTY-220, SNSTY-225, LED power are 15W, 20W, 25W characteristics are brightness, medium power, lighting range is suitable for rural, residential, parks. schools and other sidewalk or road width of 10-15M.
c. Installation 3-5M height: normally select SNSTY-208, SNSTY-212, LED power are 8W, 12W, characteristics are low power, cost-effective.suited for rural roads, roadway, residential,garden,or road width of 2-10M.
Mobile APP function:
1.Cellphone Bluetooth APP connect with street lamp build-in controller, exchange data mutually.
2.Loading controller operation data and display on APP page, including controller works normally or abnormally, charging or discharging, current battery capacity, voltage, solar panel voltage, etc.
3.Enable to turn on/off lamp.
4.Enable to reset needed season(spring/summer/autumn/winter), so as to adjust corresponding lamp brightness.
5.Enable to reset needed rainy/cloudy days(3/5/5/10 days), so as to adjust corresponding lamp brightness.
6.Enable to reset needed dawn operating data.  Such as open or close dawn lighting, set the dawn/dusk lighting duration.
7.Enable to reset needed lamp lighting on postpone time.
8.Following optional functions can be chosen:
a.Infrared Motion Sensor
b.Solar/Mains Hybrid
c.Wind/Solar Hybrid
d.Flashing Light Indicator
c.Camera
d.Enable to recover factory original
settings once incorrectly set programs.
e.Related technicians could adjust controller details in engineering mode.
Warranty:
We offer 3 years product warranty for integrated solar garden/street light(including components), starting from the date of sales.
Defect component will be replaced free of charge under the condition that this defect is not caused by any human factors, including but not limited to: rough operation during transportation and installation, improper way of mounting.

Regarding the products which have exceeded warranty period, we will provide replaced components at cost price.
Replacement parts include: LED lamp, Solar controller, Battery, Sensor, Solar panel, Screws & Cable, etc.

Material Description:
Solar Panel: SUNPOWER solar cell, 5 years product warranty, 25 years 80% power output guarantee;
LED lamp: LED chip brand-USA Bridgelux, 50000 hours life time;
MPPT solar controller: 2 years warranty;
Lithium iron phosphate power battery with extra long service life 5 years.

Successful Cases:
--Summer

---Winter

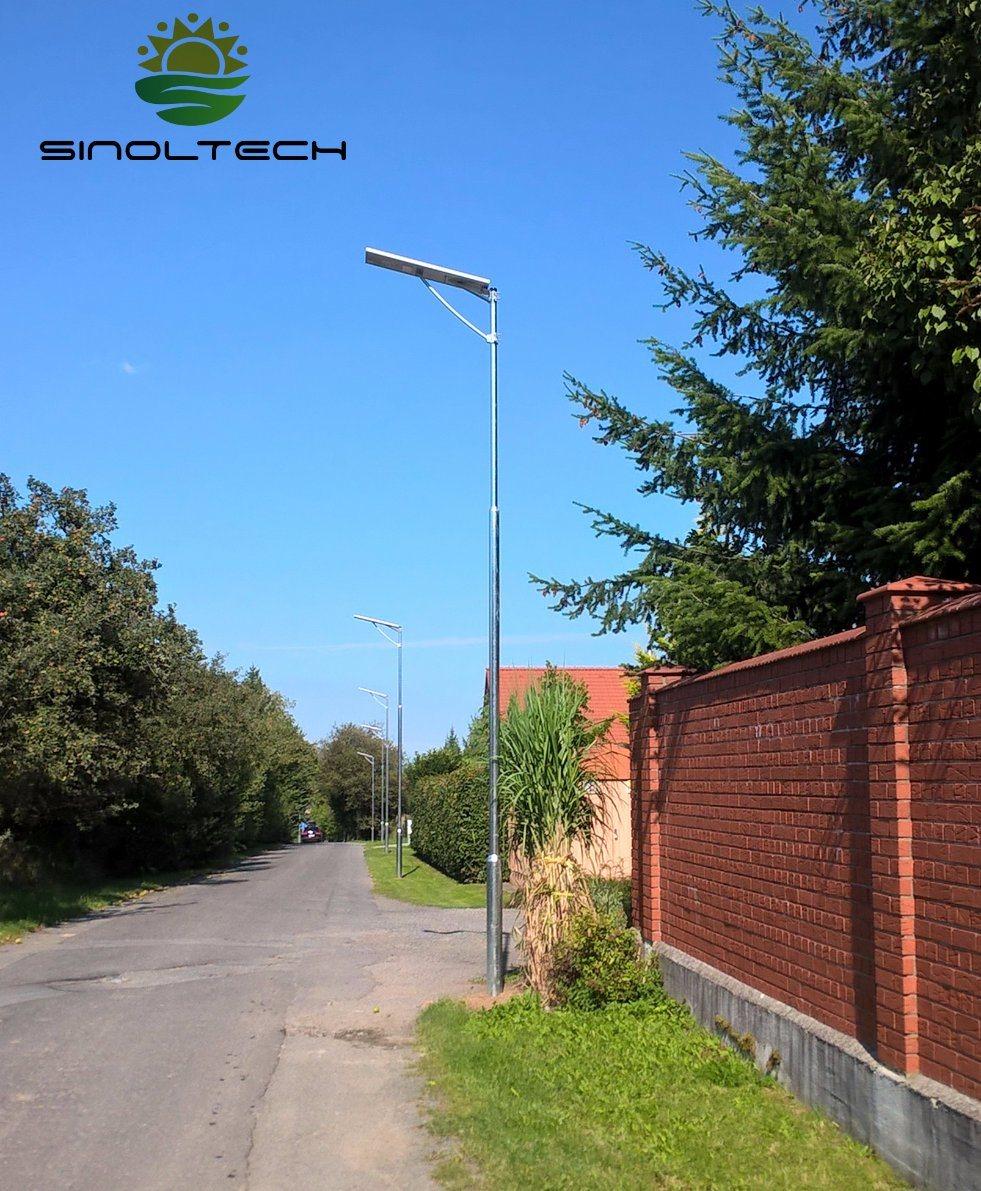

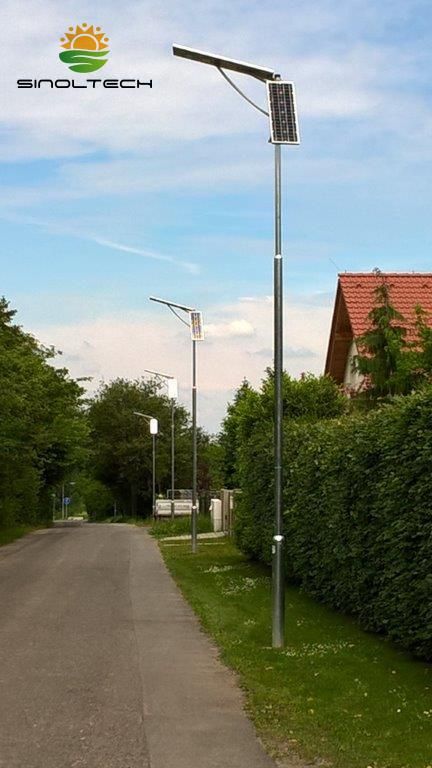

40W LED Solar street light with 60W additional solar panel, in Czech Republic year 2017.

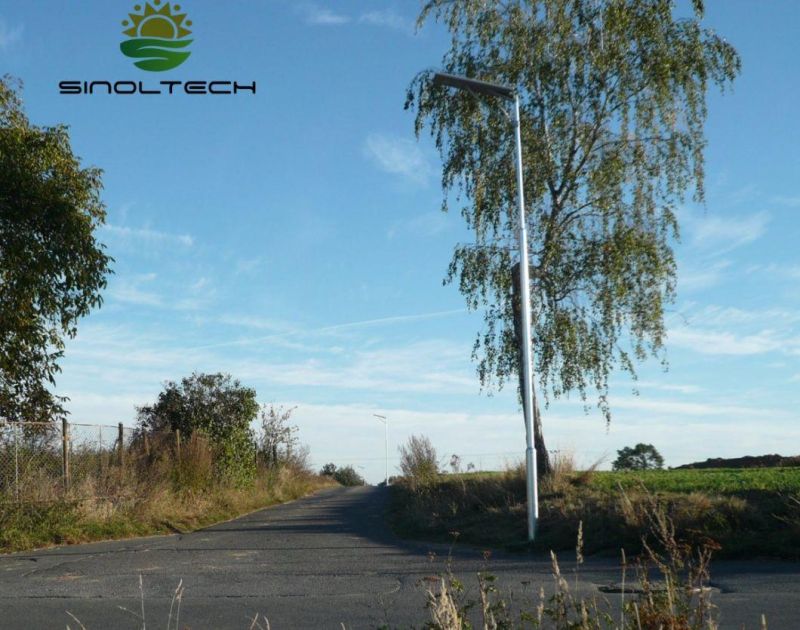

--40W LED SOLAR STREET LIGHT FOR COUNTRY ROAD LIGHTING

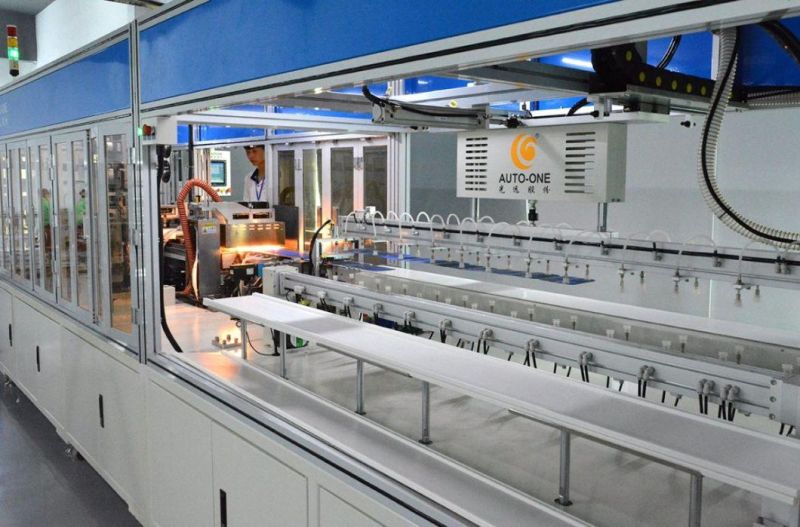

Workshop:
