• Model NO.：INL 09
• Illumination Time：12h
• Cell Type：LiFePO4
• Charging Time (H)：6
• Usage：Garden, Street
• IP Rating：IP67
• Certification：CE, ISO9001
• Voltage：220V
• With Light Source：With Light Source
• Application：Street, Road, Highway, Pathway, Sidewalk, Park
• Color：Grey,White
• Design：LiFePO4 Battery Is Built in Lamp Fixture
• Chip：5050 San′an
• Transport Package：720*340*135mm
• Specification：20W ~120W
• Trademark：INLUX SOLAR
• Origin：China
• HS Code：9405500000
• Production Capacity：200000 Sets, Year

Basic Info.

Model NO. INL 09 Illumination Time 12h Cell Type LiFePO4 Charging Time (H) 6 Usage Garden, Street IP Rating IP67 Certification CE, ISO9001 Voltage 220V With Light Source With Light Source Application Street, Road, Highway, Pathway, Sidewalk, Park Color Grey/White Design LiFePO4 Battery Is Built in Lamp Fixture Chip 5050 San′an Transport Package 720*340*135mm Specification 20W ~120W Trademark INLUX SOLAR Origin China HS Code 9405500000 Production Capacity 200000 Sets/ Year

Product Description

Applications
Street lighting, park lighting, roadway lighting, path lighting…






PARAMETERS



Model No.:	INL-FLED-1
Lamp Power:	30W-200W
Input Voltage:	AC100-277V
Chip Brand:	Lumileds / San'an
Driver Brand	Meanwell/ Inventronics/Moso
LED Luminous Efficiency:	120 lm/W~180 lm/W
Color Temperature:	3000-6500K
Power Factor:	>0.95
CRI (color rendering index):	>70
Life Span:	>50,000 hours
Lamp Fixture:	High-Pressure Die-Casting Aluminum. Corrosion Resistant
Lamp Arm Adaptor:
Working Temp:	-30 °C~+50 °C
IP Grade	IP67
Certification:	CE, ROHS
Warranty:	5 years

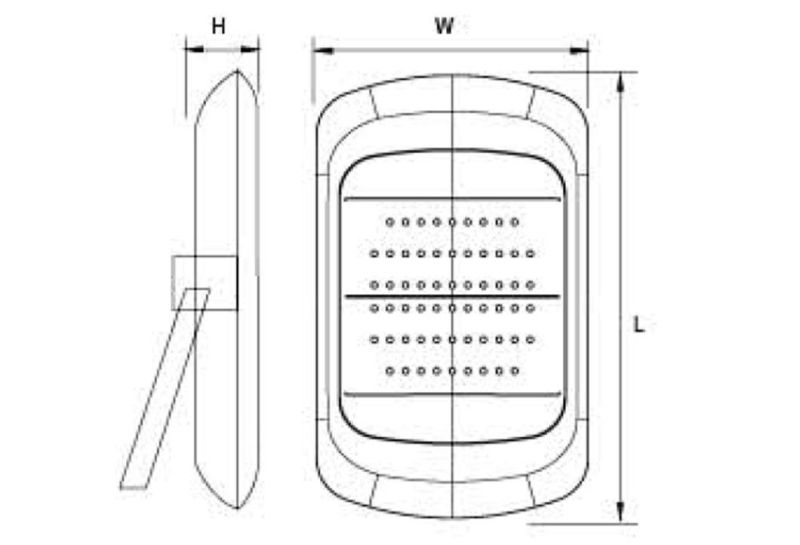

DIMENSIONS



SIZE	L	W	H	Power
A	410	350	120	120
B	495	350	120	180
C	580	350	120	240
D	665	350	120	300

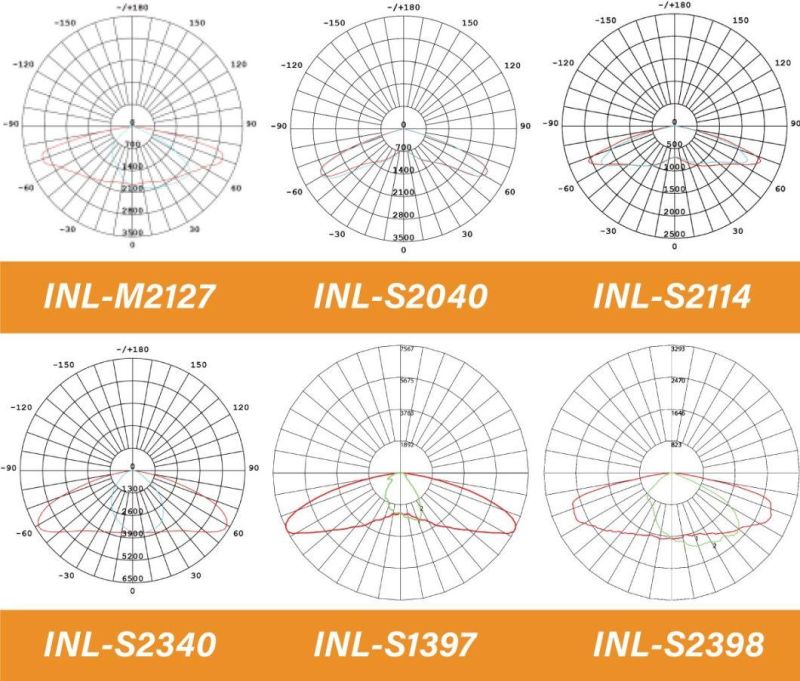

LIGHTING DISTRIBUTION CURVE
