• Model NO.：SMLN-120W

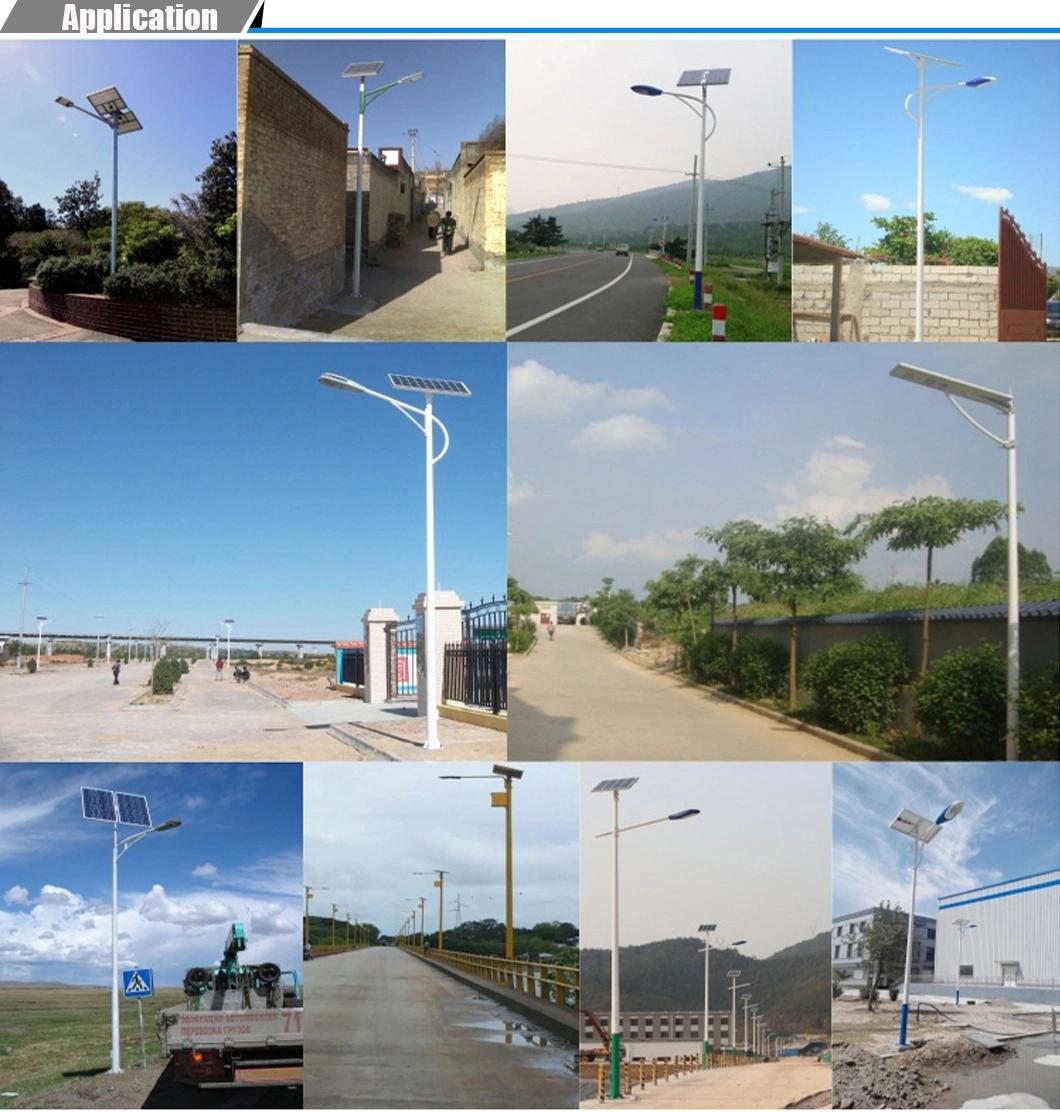

• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)T180lm/W：180lm,W
• Working Temperature(ºC)：′-40ºC - 60ºC
• CRI (Ra>)：75,80,85,90
• Working Lifetime(Hour)：10000
• Beam Angle：150*70°
• Working Mode：Full Power and Dim Mode
• Lighting Area：100m²
• Lighting Time：Over 3 Nights
• Controller：MPPT
• Solar Cells：Mono or Poly High Efficiency A Grade
• Transport Package：Carton
• Specification：1593X450X45mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-120W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 10 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W)T180lm/W 180lm/W Working Temperature(ºC) ′-40ºC - 60ºC CRI (Ra>) 75/80/85/90 Working Lifetime(Hour) 10000 Beam Angle 150*70° Working Mode Full Power and Dim Mode Lighting Area 100m² Lighting Time Over 3 Nights Controller MPPT Solar Cells Mono or Poly High Efficiency A Grade Transport Package Carton Specification 1593X450X45mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

Product Description

1.3-5 rainy /cloudy days backup 2.Dusk-to-Dawn 12 hours with dim energy saving mode 3.Lighting times can be individually adjusted with program switch. 4.Illuminance in operation depending on local site conditions (average daylight available) and customer-specific lighting times.

Model NO.	SMLN-120W	Battery Type:	LiFePO4 32Ah/25.6V
Power:	120W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1593*450*45mm
Viewing Angle:	120	Packing Dimension:	1640*505*150mm
Working temperature :	,-20 ~ +70	Product Weight	29.74kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	9-12 m
Solar Panel:	18V 130W Mono-crystalalline	Warranty:	3 years
