• Model NO.：SMLN-50W
• Illumination Time：12h
• Cell Type：LiFePO4 Lithium
• Charging Time (H)：12

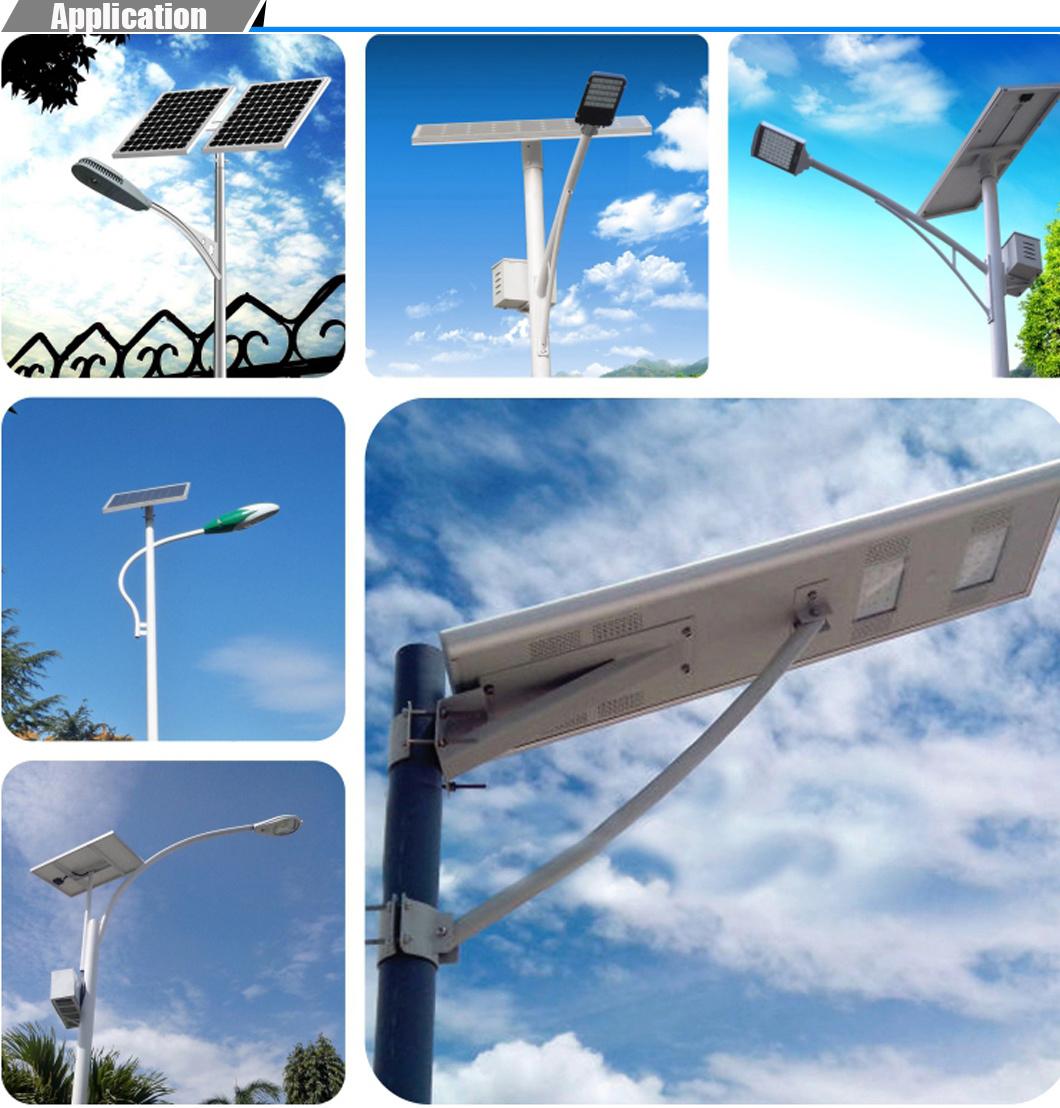

• Usage：Garden, Street, Port Parking Lots Path
• IP Rating：IP65
• Certification：CE, RoHS, IEC Soncap
• Voltage：12,24V
• With Light Source：With Light Source
• Approval：Ce,RoHS,Coc,IEC Soncap
• Dim/Non-Dim：Both Can Do
• Power Supply：Solar, Wind Power or Grid Power Hybrid Availabel
• Back up Days：365 Days
• Lighting Time：12hrs Each Day
• Model Number：70W
• Solar Panel：Mono or Poly High Efficiency A Grade
• Controller：PWM,MPPT Available
• Pole Height：11m
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• Working Lifetime：10000
• Transport Package：Carton, Pallet
• Specification：1144X450X140mm
• Trademark：SunMaster
• Origin：Zhejiang China
• HS Code：9405409000
• Production Capacity：200000

Basic Info.

Model NO. SMLN-50W Illumination Time 12h Cell Type LiFePO4 Lithium Charging Time (H) 12 Usage Garden, Street, Port Parking Lots Path IP Rating IP65 Certification CE, RoHS, IEC Soncap Voltage 12/24V With Light Source With Light Source Approval Ce/RoHS/Coc/IEC Soncap Dim/Non-Dim Both Can Do Power Supply Solar, Wind Power or Grid Power Hybrid Availabel Back up Days 365 Days Lighting Time 12hrs Each Day Model Number 70W Solar Panel Mono or Poly High Efficiency A Grade Controller PWM/MPPT Available Pole Height 11m OEM/ODM/Customized Available Warranty(Year) 10 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC Working Lifetime 10000 Transport Package Carton, Pallet Specification 1144X450X140mm Trademark SunMaster Origin Zhejiang China HS Code 9405409000 Production Capacity 200000

Product Description

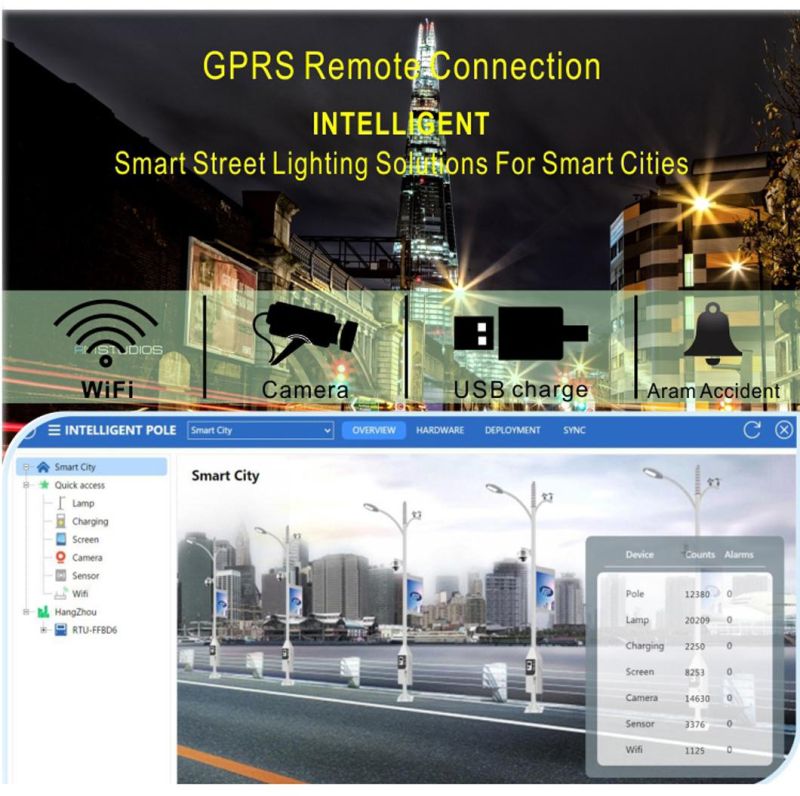

1.Pole mounted for outdoor use,GPRS monitoring remote control.
2.Fmaintance and easy to install.
3.Powered by Solar energy,environment friendly,inexhaustible,without any harmful substance.
4.Bridgelux LED chip available

Model NO.	SMLN-50W	Battery Type:	LiFePO4 33Ah/12.8V
Power:	50W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1144*450*470mm
Viewing Angle:	120	Packing Dimension:	1180*510*200mm
Working temperature :	,-20 ~ +70	Product Weight	19.5KG
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	8-9 m
Solar Panel:	18V 80W Mono-crystalalline	Warranty:	3 years
