- Model NO.：STL-200W
- Illumination Time：12h
- Cell Type：Gel Battery
- Charging Time (H)：10
- Usage：Street
- IP Rating：IP67
- Certification：CE, RoHS
- Voltage：12,24V
- With Light Source：With Light Source
- Maintenance：10 Years Free Maintenance
- Mounting Height：3m 4m 5m 6m 7m
- Solar Panel：180W*2PCS
- IP：66
- CRI：80
- Working Temperature：-10-50
- Working Life Time：100000
- Beam Angle：Type I
- Applicatoin：Garden , Courtyard , Road , Parking Lot, Outdoor,
- Battery：Lead Battery
- Working Mode：Full Power and Dim Mode
- Pole：Q235
- Lighting Area：100m2
- Lighting Time：12 Hours
- LED Chip Brand：USA Bridgelux 210lm,W
- Transport Package：Carton,Plywood Box,Pallet,Bubblefilm,Woven Fabric
- Specification：A Grade
- Trademark：sunmaster
- Origin：Zhejiang, China
- HS Code：9405409000
- Production Capacity：3, 000PCS,Month
Basic Info.
Model NO.
STL-200W
Illumination Time
12h
Cell Type
Gel Battery
Charging Time (H)
10
Usage
Street
IP Rating
IP67
Certification
CE, RoHS
Voltage
12/24V
With Light Source
With Light Source
Maintenance
10 Years Free Maintenance
Mounting Height
3m 4m 5m 6m 7m
Solar Panel
180W*2PCS
IP
66
CRI
80
Working Temperature
-10-50
Working Life Time
100000
Beam Angle
Type I
Applicatoin
Garden , Courtyard , Road , Parking Lot, Outdoor,
Battery
Lead Battery
Working Mode
Full Power and Dim Mode
Pole
Q235
Lighting Area
100m2
Lighting Time
12 Hours
LED Chip Brand
USA Bridgelux 210lm/W
Transport Package
Carton,Plywood Box,Pallet,Bubblefilm,Woven Fabric
Specification
A Grade
Trademark
sunmaster
Origin
Zhejiang, China
HS Code
9405409000
Production Capacity
3, 000PCS/Month
Product Description
1.Excellent quality LED and human induction PIR more senstitive.
2.MPPT Superier controller efficiency more than 96%,time control,light on/off.
3.LiFePO4 battery,good safety performance,high capacity,long life,high and low temperateure protection.
4.Unique lens design,with excellent illumination and light transmittance.
5.IP67 Metal switch,more durable.

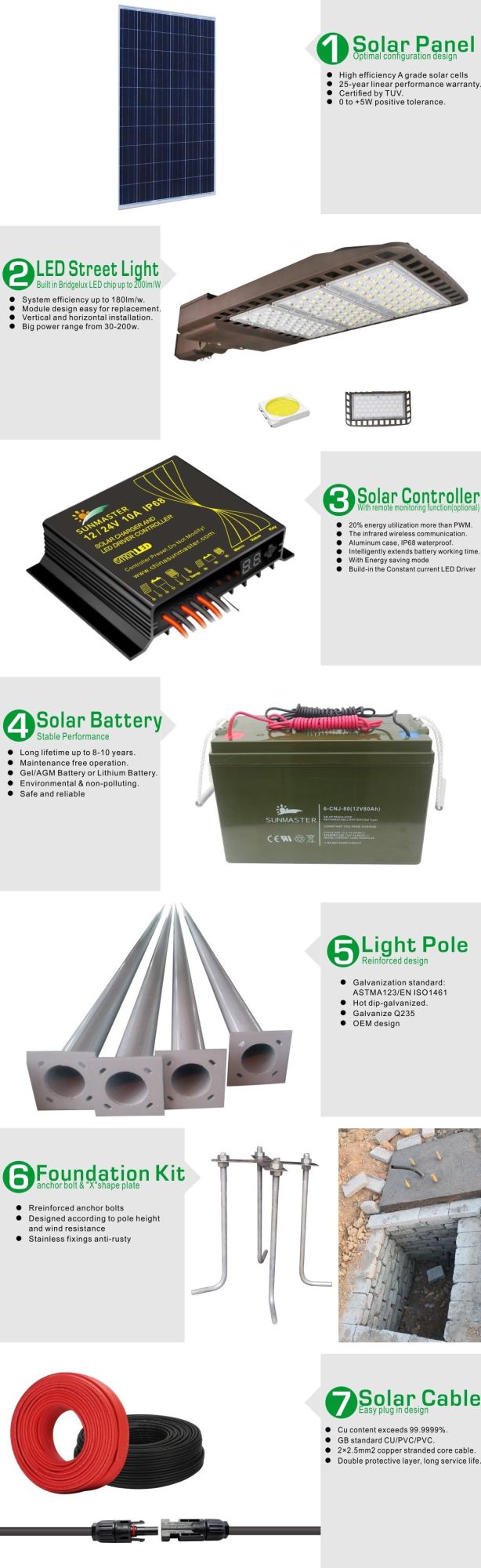

| Lighting Time | 10-14hrs/day(adjustable),3-7 rainy days back-up |
| Solar Panel | Poly solar panel 220W(optional)*2pcs,high efficiency,life span >25years 80% rated output power |
| Gel Battery | Capacity 160Ah/12v(optional)*2pcs,free maintenance,better weather-ability(-20ºC to +55ºC)
Deep cycle 3500 times @ 30% DOD,low self discharge rate,life span>8 years |
| Solar Controller | MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP68 over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years |
| LED Lamp | LED power 160w,USA Bridgelux LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w, IP65 or higher,CRI>70Ra,C.T. 3000-6500k(optional),life span>100,000hrs |
| Light Pole | Q235 steel material,hot-dip galvanized and powder coating,equipped with lamp arm/solar panel mounting bracket/flange/fittings/foundation kit,wind resistance>150km/h,life span>20 years |
| Solar Battery Installtion Position |
| Recommended configurations |
| Lamp | Pole | Solar Panel | GEL Battery | Lighting Space | Controller | Working Hours | Backup |
| 20w | 3-4m | 50w*1pcs | 40Ah*1pcs | >12m | MPPT | 10-14 hours | 3-5days |
| 30w | 4-5m | 80w*1pcs | 60Ah*1pcs | >14m | MPPT | 10-14 hours | 3-5days |
| 40w | 5-6m | 100w*1pcs | 80Ah*1pcs | >15m | MPPT | 10-14hours | 3-5 days |
| 50w | 6-7m | 120w*1pcs | 50Ah*2pcs | >17m | MPPT | 10-14 hours | 3-5days |
| 60w | 7-8m | 150w*1pcs | 60Ah*2pcs | >20m | MPPT | 10-14 hours | 3-5 days |
| 70w | 7-8m | 180w*1pcs | 70Ah*2pcs | >22m | MPPT | 10-14 hours | 3-5 days |
| 80w | 8-9m | 200w*1pcs | 80Ah*2pcs | >24m | MPPT | 10-14 hours | 3-5 days |
| 90w | 8-9m | 120w*2pcs | 90Ah*2pcs | >24m | MPPT | 10-14 hours | 3-5 days |
| 100w | 9-10m | 130w*2pcs | 100Ah*2pcs | >27m | MPPT | 10-14 hours | 3-5 days |
| 120w | 10-11m | 150w*2pcs | 120Ah*2pcs | >30m | MPPT | 10-14 hours | 3-5 days |
| 140w | 11-12m | 180w*2pcs | 140Ah*2pcs | >33m | MPPT | 10-14 hours | 3-5 days |
| 150w | 11-12m | 200w*2pcs | 150Ah*2pcs | >33m | MPPT | 10-14 hours | 3-5 days |
| 180w | 12-13m | 250w*2pcs | 180Ah*2pcs | >35m | MPPT | 10-14 hours | 3-5 days |
| 200w | 12-13m | 280w*2pcs | 200Ah*2pcs | >35m | MPPT | 10-14 hours | 3-5 days |
