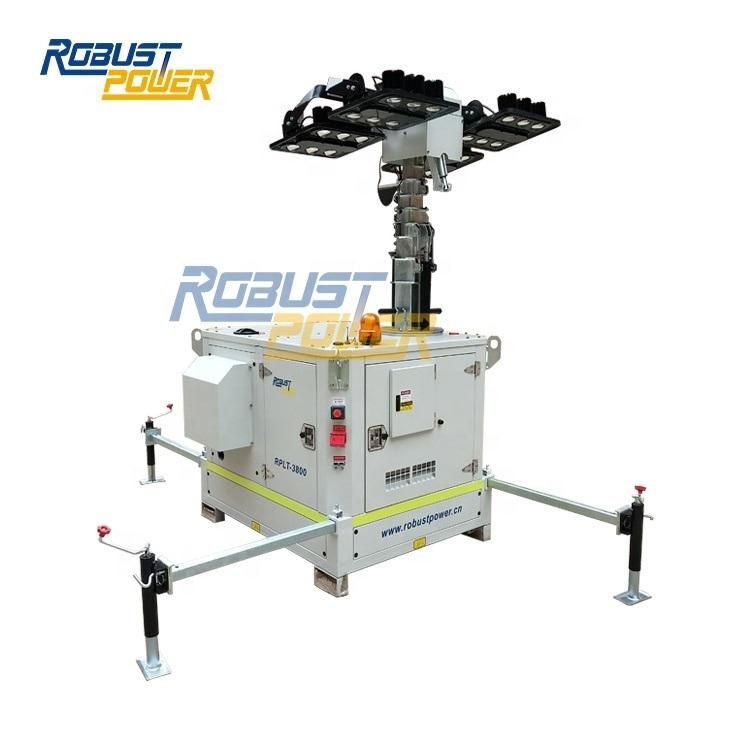

• Model NO.：RPLT-3800
• Trademark：Robust Power
• Origin：China
• HS Code：9405409000
• Production Capacity：250set,Month

Basic Info.

Model NO. RPLT-3800 Trademark Robust Power Origin China HS Code 9405409000 Production Capacity 250set/Month

Product Description

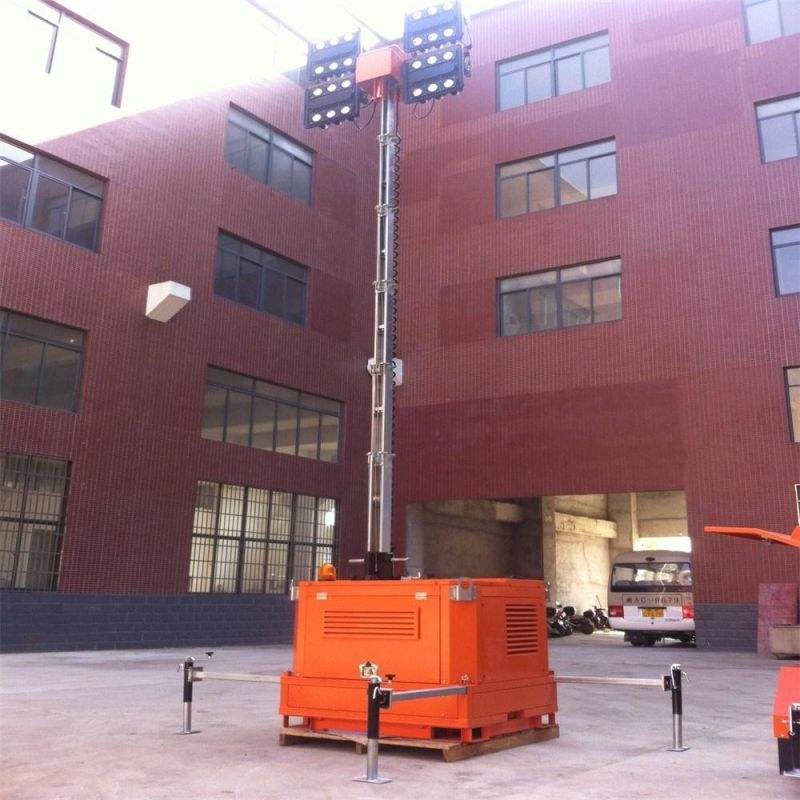

 Key Features Include:
-7m hydraulical operated telescopic mast
-340 mast rotation
-Available in 4 x 480W SAA Certified Robust Power LED lamp
-Galvanized mast and powder coated canopy
-Electronic controlled hydraulic system with sustaining valves and hydraulic locks
-Fault protection
-Heavy-duty, weather-protective enclosure
Fully bunded

Technical Data:


Light
Housing Material	Aluminium die cast
Type of lights	LED Lamp
Power of lights	4*480W SAA certified Robust Power LED lamps
Lumen Output	4*62,400lm ( total )
Voltage	AC 110V-240V, DC 48V
Frequency	50/60Hz
Longevity	3 years
Waterproof grade	IP65
Color temperature	2100K-5700K
Mast
Material of mast	Galvanized iron
Mast lifting type	Hydraulic mast
Mast section	4-section telescopic
Mast rotation system	340° manual operation
Max. height of mast	7meters
Engine
Engine model	Kubota D905 3 cylinder or Z482 2 cylinder
Start system	Electric (Battery start)
Alternator	Sinocox
Engine speed	2200rmp
Rated power	4kW continuous (DC)
Insulation	H
Fuel tank capacity	150L
Fuel consumption	0.75L/hr
Maximum Working Hours	200H
Controller system	Digital control panel HGM1790N
Waterproof grade	IP54
Engine shutdown protection	Low oil pressure, over speed, over current, high-temperature detection, low fuel level
Trailer
Stabiliser Supports	4*Manual
Packing
Net weight	1800/1700 kg
Dimension	1540X1400X2000 MM

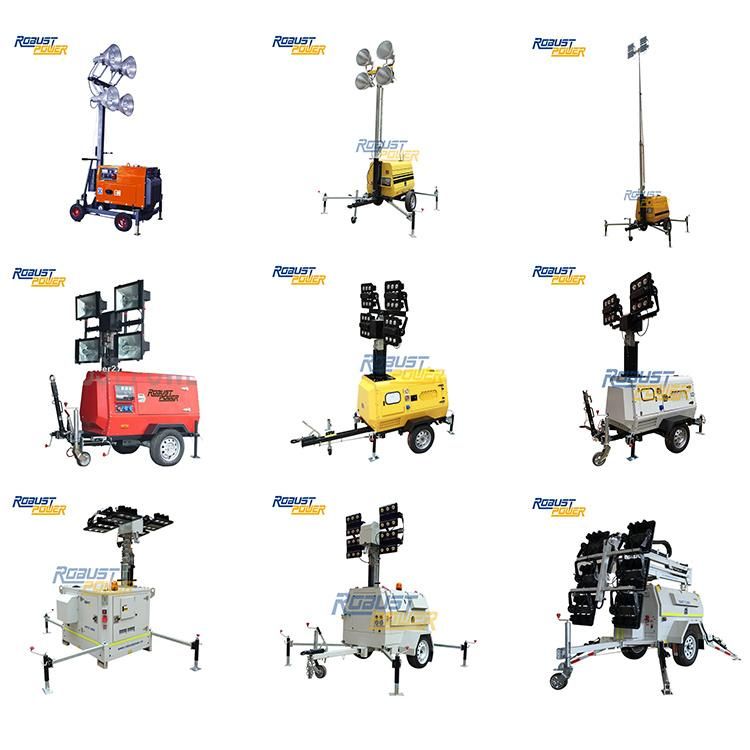

Robust Power Models:

No.	Model	Mast	Power of Lamps	Engine Model
1	RPLT1600	4.8M Manual	4*400W Metal Halide Lamp	RP186FA
2	RPLT1600	4.8M Manual	4*160W LED	RP186FA
3	RPLT1600	4.8M Manual	2*1000W Metal Halide Lamp	RP186FA
4	RPLT6000	9M Manual	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
5	RPLT6000	9M Manual	4*240W LED	Kubota D905 (Japan)
6	RPLT6800	8.6M Hydraulic	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
7	RPLT6800	8.6M Hydraulic	4*1500W Metal Halide Lamp	Kubota D1105 (Japan)
8	RPLT6800	8.6M Hydraulic	4*480W LED	Kubota D905 (Japan)
9	RPLT3800	7M Hydraulic	4*480W LED	Kubota Z482 (Japan)
10	RPLT6900	8.5M Hydraulic	4*480W LED	Kubota D1105 (Japan)
11	RPLT7200	10M Hydraulic	6*480W LED	Kubota D1105 (Japan)
12	RPLT7200	10M Hydraulic	4*720W LED	Kubota D1105 (Japan)
13	RPLT7600	9M Hydraulic	6*480W LED	Kubota D1105 (Japan)
14	RPLT7600	9M Hydraulic	4*720W LED	Kubota D1105 (Japan)
