• Model NO.：PE Series
• Voltage：12V
• With Light Source：Without Light Source
• Light Material：Stainless Steel
• Housing Material：PC
• Thickness：53
• Diameter：230*230*53mm
• Cable Length：2m
• Transport Package：Package
• Specification：CE
• Trademark：LASWIM
• Origin：China
• HS Code：94054090
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. PE Series Voltage 12V With Light Source Without Light Source Light Material Stainless Steel Housing Material PC Thickness 53 Diameter 230*230*53mm Cable Length 2m Transport Package Package Specification CE Trademark LASWIM Origin China HS Code 94054090 Production Capacity 1000PCS/Month

Product Description

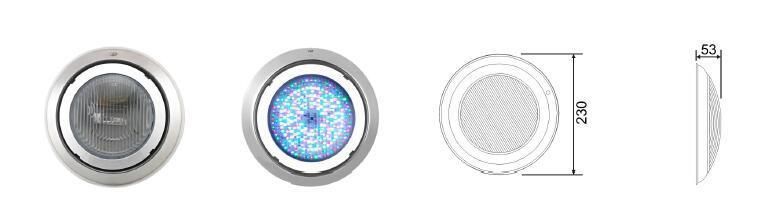

WL-PE features
Laswim PE series lights features stainless steel material with gliding and elegant design and good heat radiation. Compatible to different lamp source: high quality DIP led lamp, SMD led lamp and halogen bead.
1.Material: Stainless steel
2.Lens: PC
3.Safety low voltage: AC12V
4.Installation mode: wall-mounted type
5.Color: cool white, warm white, RGB and single blue
6.Cable: 2.0meters



PE Parameter table

Model	Description	Power(W)	Voltage(V)	Lumination(lux)	Installation type
WL-PE-LED072	Stainess steel flat light,72 leds white color/RGB color	6W	12V	150(cool/warm white)88(RGB)	Wall mounted type
WL-PE-LED144	Stainess steel flat light,144 leds white color/RGB color	12W	12V	302(cool/warm white)168(RGB)	Wall mounted type
WL-PE-LED252	Stainess steel flat light,252 leds white color/RGB color	18W	12V	500(cool/warm white)245(RGB)	Wall mounted type
WL-PE-LED006JTB	Stainess steel flat light,18 leds cool white/warm white	6W	12V	485(cool/warm white)	Wall mounted type
WL-PE-LED006JTC	Stainess steel flat light,18 leds RGB color/single color	6W	12V	85(RGB)	Wall mounted type
WL-PE-LED012JTB	Stainess steel flat light,36 leds cool white/warm white	12W	12V	903(cool/warm white)	Wall mounted type
WL-PE-LED013JTC	Stainess steel flat light,36 leds RGB color/single color	12W	12V	215(RGB)	Wall mounted type
WL-BPE075	Stainess steel flat light with lamp bead and PC lens	75W	12V	none	Wall mounted type
WL-BPE100	Stainess steel flat light with lamp bead and PC lens	100W	12V	none	Wall mounted type

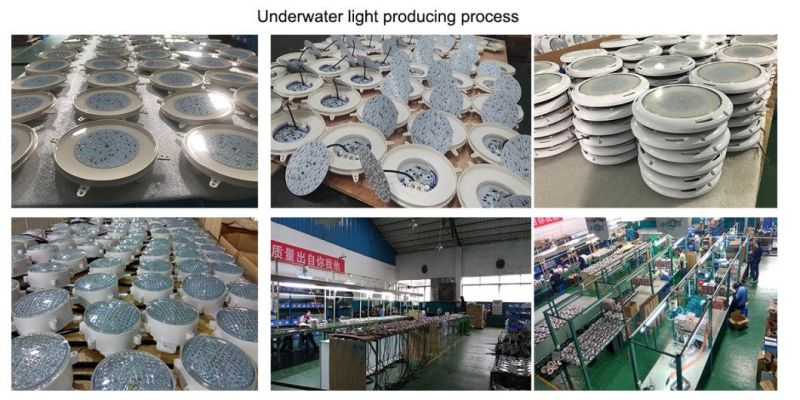

PRODUCTING  PROCESS



PACKING


ABOUT  LASWIM
Guangdong LASWIM Water Environment Equipment Co.,Ltd. set up in 1989,is one of the leading enterprises in Pool & Spa field in China.The production base is covered more than 40000m2 in Zhongshan city, and has the advanced production equipment and technical strength,which has complete quality control systems.It is installed the advanced test equipment for production lines from Europe; and the overall test process adopts computer control. The high-quality raw materials,professional and technical personnel and effective management systems are employed.Through an ongoing effort to diversify products, a complete line of energy efficient residential and commercial pool products are developed, including endless pool units, pumps, filters, chlorinators, lighting, heat pumps, ladders, starting blocks, racing lane, underwater observation windows, white goods, Jacuzzi and SPA Pool.
