• Model NO.：STL12-110W
• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, CCC, UL, ISO, FCC, GS
• Voltage：DC12V
• Solar Panel：110W*2PCS
• Battery：Lead Battery
• Working Mode：Full Power and Dim Mode
• Lighting Area：100m²
• Lamp Pole：Q235
• Lighting Time：Over 3 Nights
• LED Chip Brand：USA Bridgelux 210lm,W
• Controller：MPPT
• Back up Days：3 Days
• Maintenance：8 Years Free Maintenance
• Transport Package：Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric
• Specification：A Grade
• Trademark：SunMaster
• Origin：Zhejiang, China.
• HS Code：9405409000
• Production Capacity：3, 000PCS ,Month

Basic Info.

Model NO. STL12-110W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, CCC, UL, ISO, FCC, GS Voltage DC12V Solar Panel 110W*2PCS Battery Lead Battery Working Mode Full Power and Dim Mode Lighting Area 100m² Lamp Pole Q235 Lighting Time Over 3 Nights LED Chip Brand USA Bridgelux 210lm/W Controller MPPT Back up Days 3 Days Maintenance 8 Years Free Maintenance Transport Package Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric Specification A Grade Trademark SunMaster Origin Zhejiang, China. HS Code 9405409000 Production Capacity 3, 000PCS /Month

Product Description

1.3- 5 rainy /cloudy days backup
2. Dusk-to-Dawn 12 hours with dim energy saving mode
3.Lighting times can be individually adjusted with program switch.
4.Illuminance in operation depending on local site conditions (average daylight available) and customer-specific lighting times.

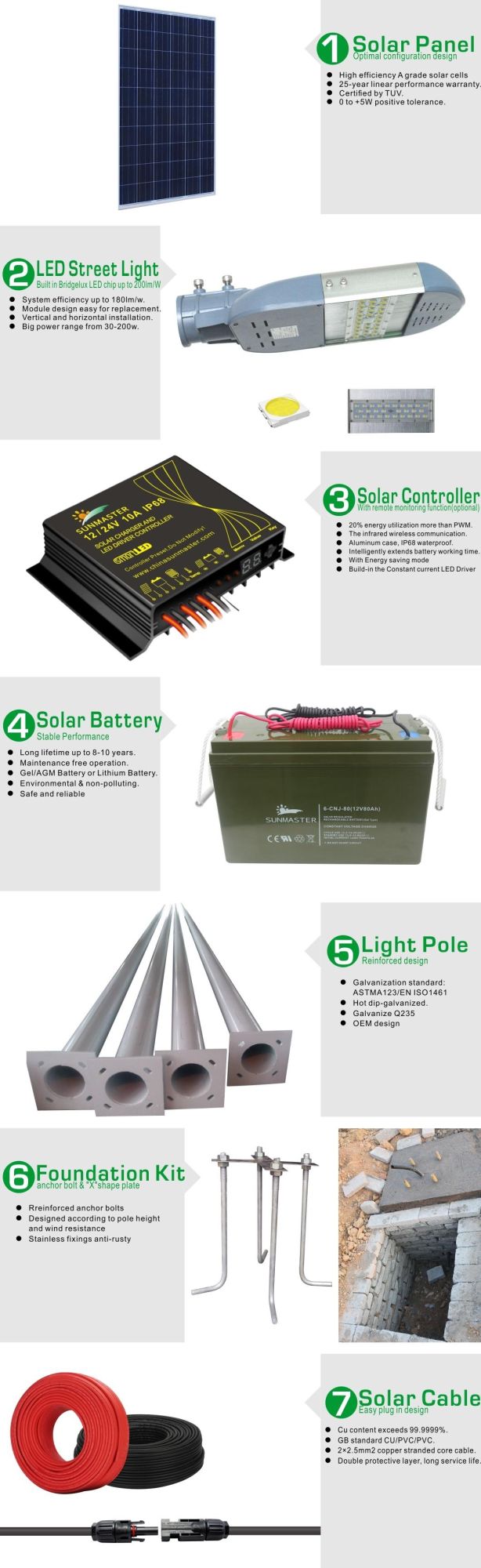

Specification



Lighting Time	10-14hrs/day(adjustable),3-7 rainy days back-up
Solar Panel	Poly solar panel 140W(optional)*2pcs,high efficiency,life span >25years 80% rated output power
Gel Battery	Capacity 110Ah/12v(optional)*2pcs,free maintenance,better weather-ability(-20ºC to +55ºC) Deep cycle 3500 times @ 30% DOD,low self discharge rate,life span>8 years
Solar Controller	MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP68 over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years
LED Lamp	LED power 1100w,USA Bridgelux LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w, IP65 or higher,CRI>70Ra,C.T. 3000-6500k(optional),life span>100,000hrs
Light Pole	Q235 steel material,hot-dip galvanized and powder coating,equipped with lamp arm/solar panel mounting bracket/flange/fittings/foundation kit,wind resistance>150km/h,life span>20 years



Solar Battery Installtion Position



Working Mode



Product Benefits

Recommended configurations



Lamp	Pole	Solar Panel	GEL Battery	Lighting Space	Controller	Working Hours	Backup
20w	3-4m	50w*1pcs	40Ah*1pcs	>12m	MPPT	10-14 hours	3-5days
30w	4-5m	80w*1pcs	60Ah*1pcs	>14m	MPPT	10-14 hours	3-5days
40w	5-6m	100w*1pcs	80Ah*1pcs	>15m	MPPT	10-14hours	3-5 days
50w	6-7m	120w*1pcs	50Ah*2pcs	>17m	MPPT	10-14 hours	3-5days
60w	7-8m	150w*1pcs	60Ah*2pcs	>20m	MPPT	10-14 hours	3-5 days
70w	7-8m	180w*1pcs	70Ah*2pcs	>22m	MPPT	10-14 hours	3-5 days
80w	8-9m	200w*1pcs	80Ah*2pcs	>24m	MPPT	10-14 hours	3-5 days
90w	8-9m	120w*2pcs	90Ah*2pcs	>24m	MPPT	10-14 hours	3-5 days
100w	9-10m	130w*2pcs	100Ah*2pcs	>27m	MPPT	10-14 hours	3-5 days
120w	10-11m	150w*2pcs	120Ah*2pcs	>30m	MPPT	10-14 hours	3-5 days
140w	11-12m	180w*2pcs	140Ah*2pcs	>33m	MPPT	10-14 hours	3-5 days
150w	11-12m	200w*2pcs	150Ah*2pcs	>33m	MPPT	10-14 hours	3-5 days
180w	12-13m	250w*2pcs	180Ah*2pcs	>35m	MPPT	10-14 hours	3-5 days
200w	12-13m	280w*2pcs	200Ah*2pcs	>35m	MPPT	10-14 hours	3-5 days
