• Model NO.：SMLN-90W
• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• Working Mode：Full Power and Motion Sensor
• Lighting Area：100m²
• Lighting Time：Over 5 Nights
• Controller：PWM,MPPT
• Back up Days：4 Days
• Maintenance：9 Years Free Maintenance
• Mounting Height：7m
• Battery：56ah
• LED Chip Brand：USA Bridgelux 210lm,W
• Solar Panel：140W
• Lamp Luminous Flux(Lm)：21600
• Distance Between Poles：10-15m
• Pole Height：7m
• Solar Cells：Mono or Poly High Efficiency A Grade
• Dim/Non-Dim：Both Can Do
• Transport Package：Carten
• Specification：1593X450X45mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-90W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Working Mode Full Power and Motion Sensor Lighting Area 100m² Lighting Time Over 5 Nights Controller PWM/MPPT Back up Days 4 Days Maintenance 9 Years Free Maintenance Mounting Height 7m Battery 56ah LED Chip Brand USA Bridgelux 210lm/W Solar Panel 140W Lamp Luminous Flux(Lm) 21600 Distance Between Poles 10-15m Pole Height 7m Solar Cells Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do Transport Package Carten Specification 1593X450X45mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

Product Description

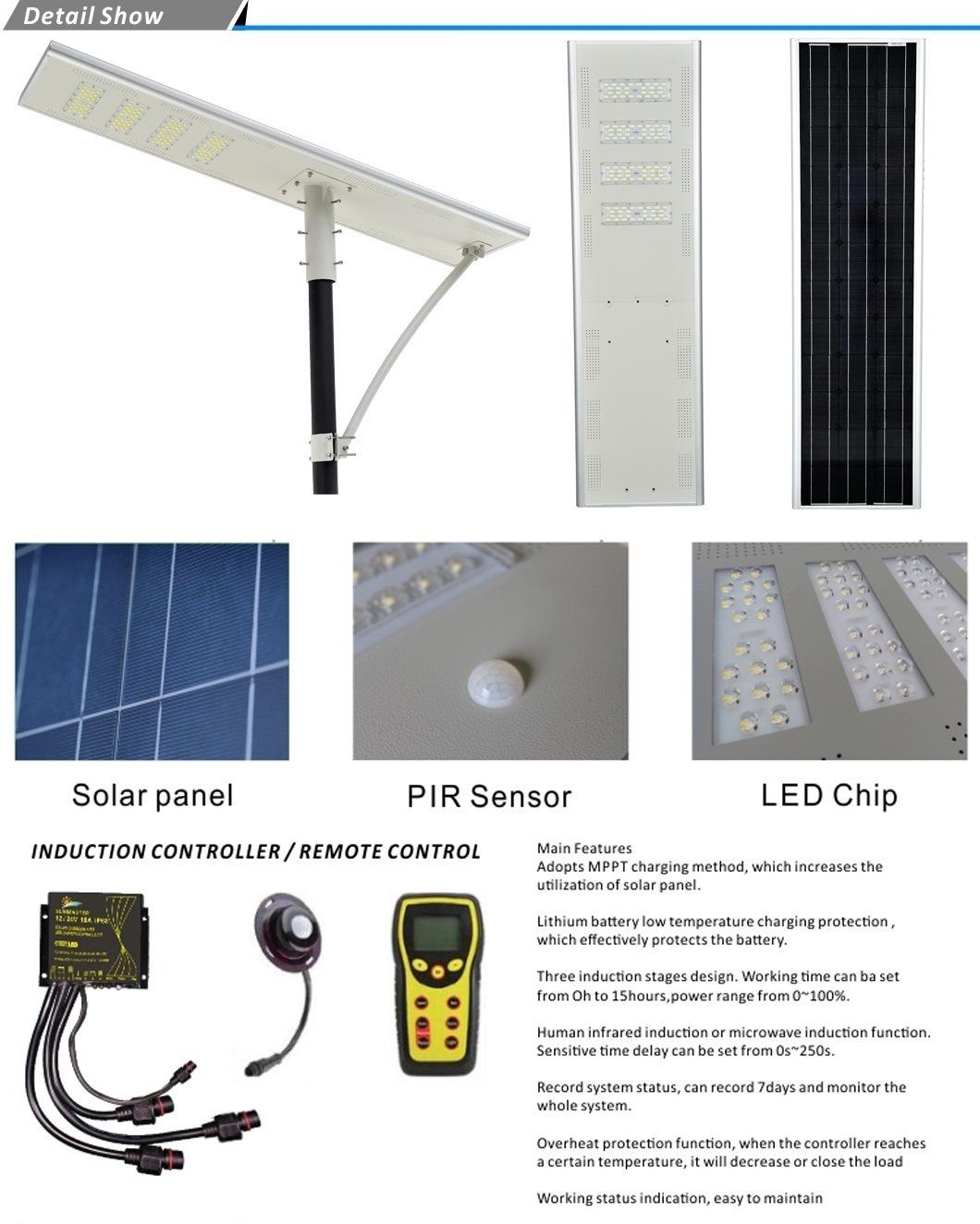

1.Consisting of solar panel,battery,controller and LED light.
2.Large capacity lithium battery,standby time is longer by PIR sensor.

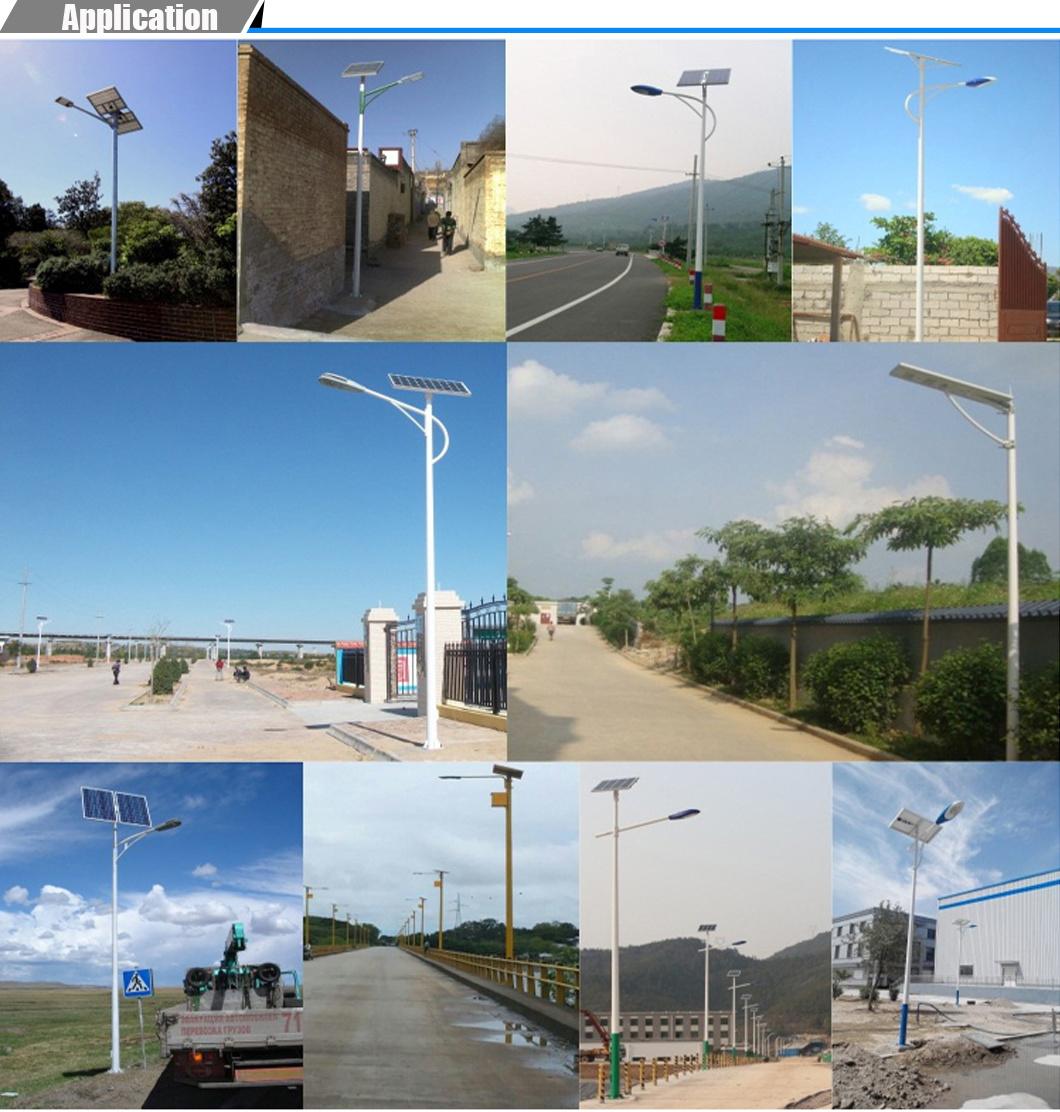

3.Can be installed in public road,private garden,villiage road,parking lot,walkway etc.
4.High illumination flux up to 180lm/watt.

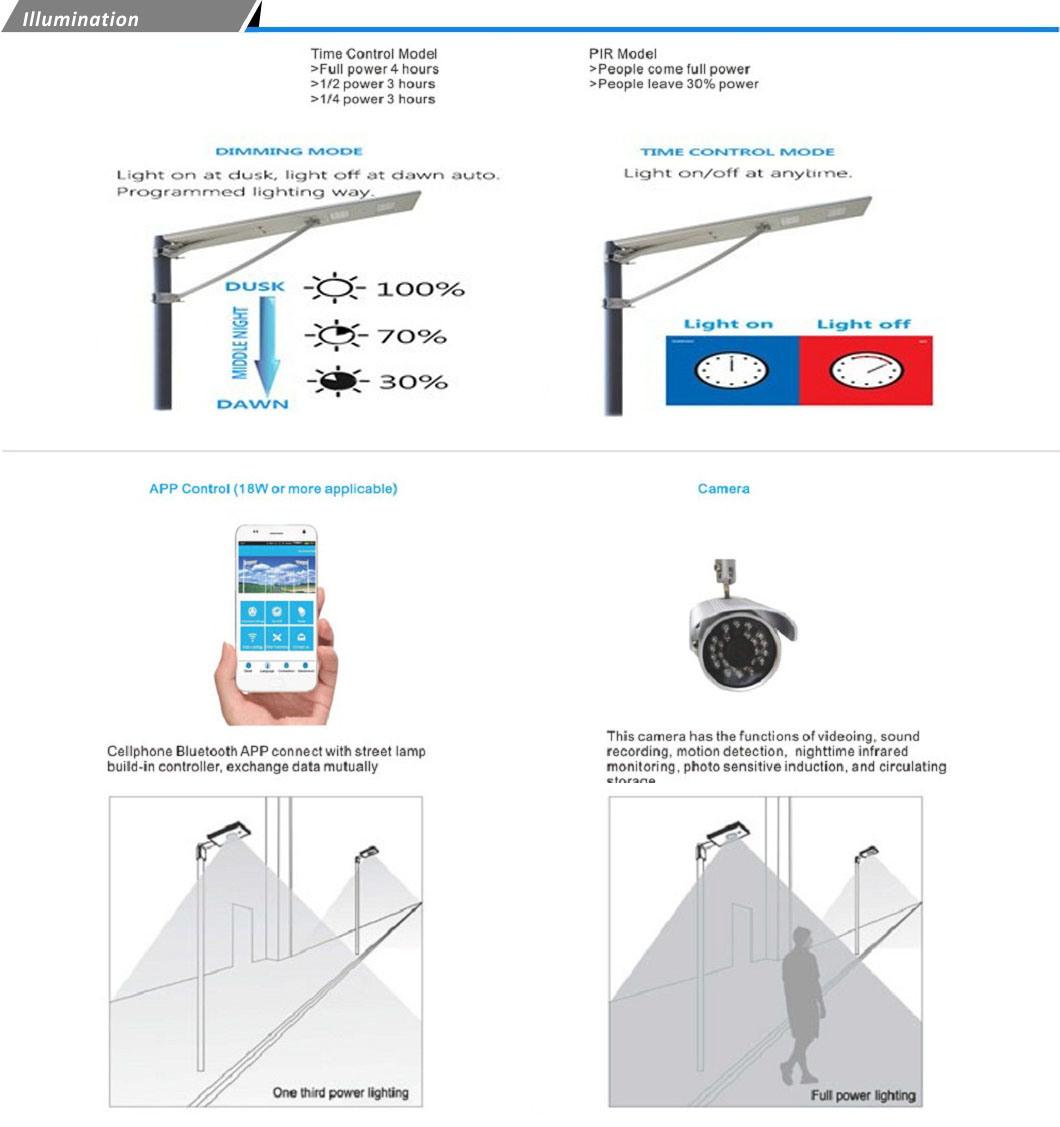

5.MPPT Controller  built in PIR motion sensor.

Model NO.	SMLN-90W	Battery Type:	LiFePO4 27Ah/25.6V
Power:	90W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1593*450*45mm
Viewing Angle:	120	Packing Dimension:	1640*505*150mm
Working temperature :	-20 ºC~ +70ºC	Product Weight	25.4kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	9-12m
Solar Panel:	18V 120W Mono-crystalalline	Warranty:	3 years
