• Model NO.：bdaio-008
• Power：21W-30W
• Technics：Painted Matte
• Illumination Time：10h
• Cell Type：Gel Battery
• Charging Time (H)：10
• Usage：Garden, Street
• IP Rating：IP67
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Color：According to The Client
• Working Lifetime(Hour)：50000
• Controler：10A15A20A
• Battery：Gel Battery
• Solar Panel：Polycrystal Monocrystal
• Height of Pole：3m-12m
• Cable：2.5mm2
• Allocation Design：According to The Client
• Shape：Round or Polygon
• Transport Package：Bubble
• Specification：CE ISO airport certificate
• Trademark：LUYOU
• Origin：Yangzhou China
• HS Code：940540900
• Production Capacity：1000set One Month

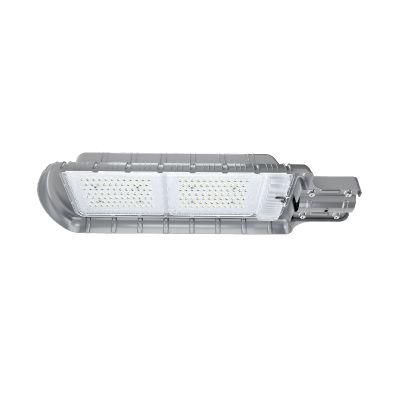

ParametersSolar ModulePmax(W)30-400WVmp (V)35.0VImp (A)2.86ALight FixtureMaterialAluminum die casting & Toughened glassOperating Temperature-40°C~75°CProtection LevelIP65LED Light SourceLED ChipBRIDGELUX / Cree (Top brand in U.S.A.)Color Temperature3800-6500K(white)Luminous flux5300 LMOperating temperature-40°C~75°CCurrent SourceDC 12V/24VPower15W/18W/21W/24W/30W/36W/42W/48W/54W/60WLighting PoleHeight3m/ 4m/ 5m/ 6m/ 7m/ 8m/ 9m/ 10m/ 11m/ 12 mMaterialBAOSTEEL GROUP Q235/345/GR60Surface TreatmentHot-dip galvanizing, Static spray,Sizeφ60-φ200,δ3-5m, vary according to modelsFlange Plate300*300*16, vary according to modelsBatteryCapacity200AH (100AH*2pcs) TypeGel/AGM BatteryDimension546*1203*30Weight28KgControllerRated voltage and current12V/10A or 24V/10A waterproof Weight0.165KgTwo times rainy day backup
&Protective FunctionTwo times of rainy day backup.
Good protection: overcharging, discharging, voltage surge, reverse polarity, etc.AccessoriesCable2.5 mm2, 15mBattery Box200AH ABS battery box or metal box with hot-dip galvanizing spray treatmentFoundation KitDismountable foundation kit, saving in shipping


After Sales
BAODE will offer technical guidance and repair service for the whole life time of her products.
BAODE promises to respond with customer's questions within 24 working-hours.

Payment terms: 30% in advance and 70% before shipment.
Lead time: 2~3 weeks upon receipt of payment for 50 poles.
Shipping: Generally, solar lights are shipped by sea. Battery and pole are not available to ship by air.
Package: Individual package for each component of solar light. Wooden box for LED lamp and solar panel for LCL goods. 80 poles load a 40 HP container for 8M solar street lights and 60-3.5m solar garden lights in a 20 container.
Why Us

One-stop Service

 You can find solutions for almost all outdoor lighting from us, like street lighting, square lighting, landscape lighting, traffic lighting and commercial lighting and so on.

Vertically Integrated Production System

 You will enjoy high-quality product with cost-effective price from us because we manufacture most of the main components from LED source, light fixture, solar panel, pole and even painting powder to control the cost and quality.

15 Years Manufacturing Experience

 Since 1998, we have started manufacturing street lighting. The 15 years' experiences have been a persuasive insurance for us to offer reliable products.

Large Factory with Complete Facility

We have 400 staffs with factory area 6000 m2.  We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .

Advanced Technology

 Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.

Cost Efficiency

 Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.

 Factory outlet. There's no middleman between the manufacturer BAODE and domestic and oversea buyers.











we proud of our product
