• Model NO.：HG-P56-18X3W-C-T
• Application：Swimming Pool
• Certification：CE, RoHS, ISO, FCC, EMC
• Voltage：12V
• With Light Source：No
• Style：Modern Chinese Style
• IP Rating：IP68
• Wattage：18W
• Input Voltage：AC12V
• Material：SS316L + Anti-UV PC Cover
• Warranty：2 Years
• Transport Package：Carton
• Specification：177mmx102mm
• Trademark：Birmate
• Origin：Shenzhen China
• HS Code：9405409000
• Production Capacity：5000050000pieces,Year

HG-P56-18W-C-TLamp parameterMaterialSS316L + Anti-UV PC coverLight dimensionΦ177×102mmInput voltageAC12VWattage17W±10%Light lumen520LM±10%Halogen replacement150WBeam angle120°BASEtwo screws terminalCCTPure White: 6500±10% Warm White:3000K±10% costomizedSpecificsOperating Temperature (ºC) -20~40ºCIP RatingIP68CertificateCE, ROHS,FCC, IP68,VDELife-span50,000 hoursWarranty2 Years!!! RemarksConnect coil transformermust be coil transformerWaterproof ring of housingmust do right to get IP68Test positionLED PAR56 swimming pool lights (Min)Working temperature 28ºCWorking temperature 40ºCUnderwater test time(Min)480480LED edge temperature(ºC)6770 Advantages

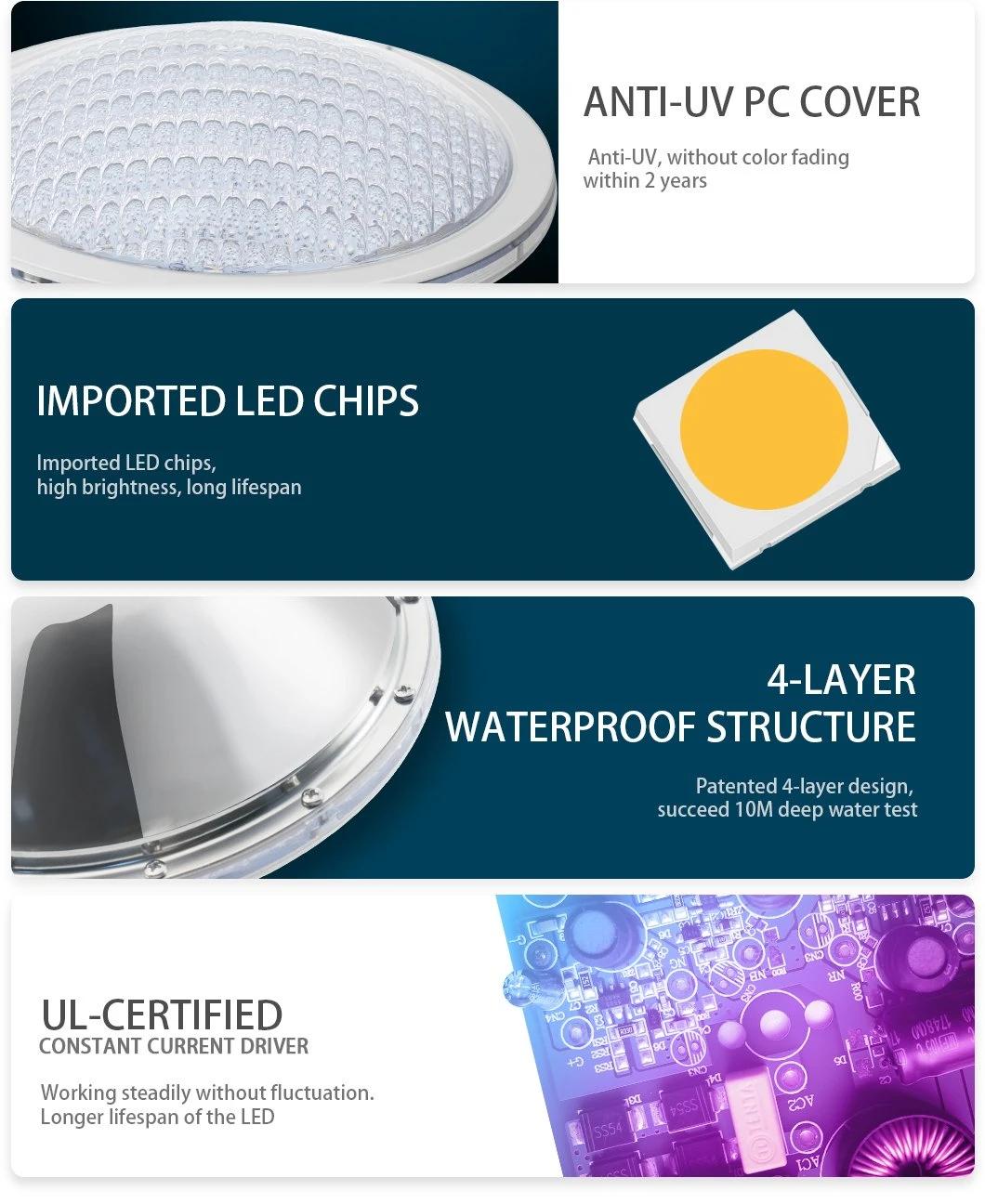

swimming pool rgb lamp Features:

1. The same dimension as the traditional PAR56 bulb, can completely match the various niches in the market.

2. 316L stainless steel material shell, strong corrosion resistance.

3. Anti-UV transparent PC cover, won't turn yellow within 2 years

4. Constant current driver, comply with CE & EMC standard.

5. All products succeeded in 10m deep water testing before delivery.

6. 8 hours aging testing, 30 steps quality inspections, assure the great quality pool light.

7. The lens with PC material bracket, high-temperature resistance, and better light concentration

8. 2-3MM aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity.

9. Various wattages, 12W-70W for optional.

10. Connected 2 screw terminals, never loose.

11. IP68 structural waterproof, not resin filled.

12.Patent design RGB 100% synchronous control, switch control, external control, wifi control, DMX512 control.

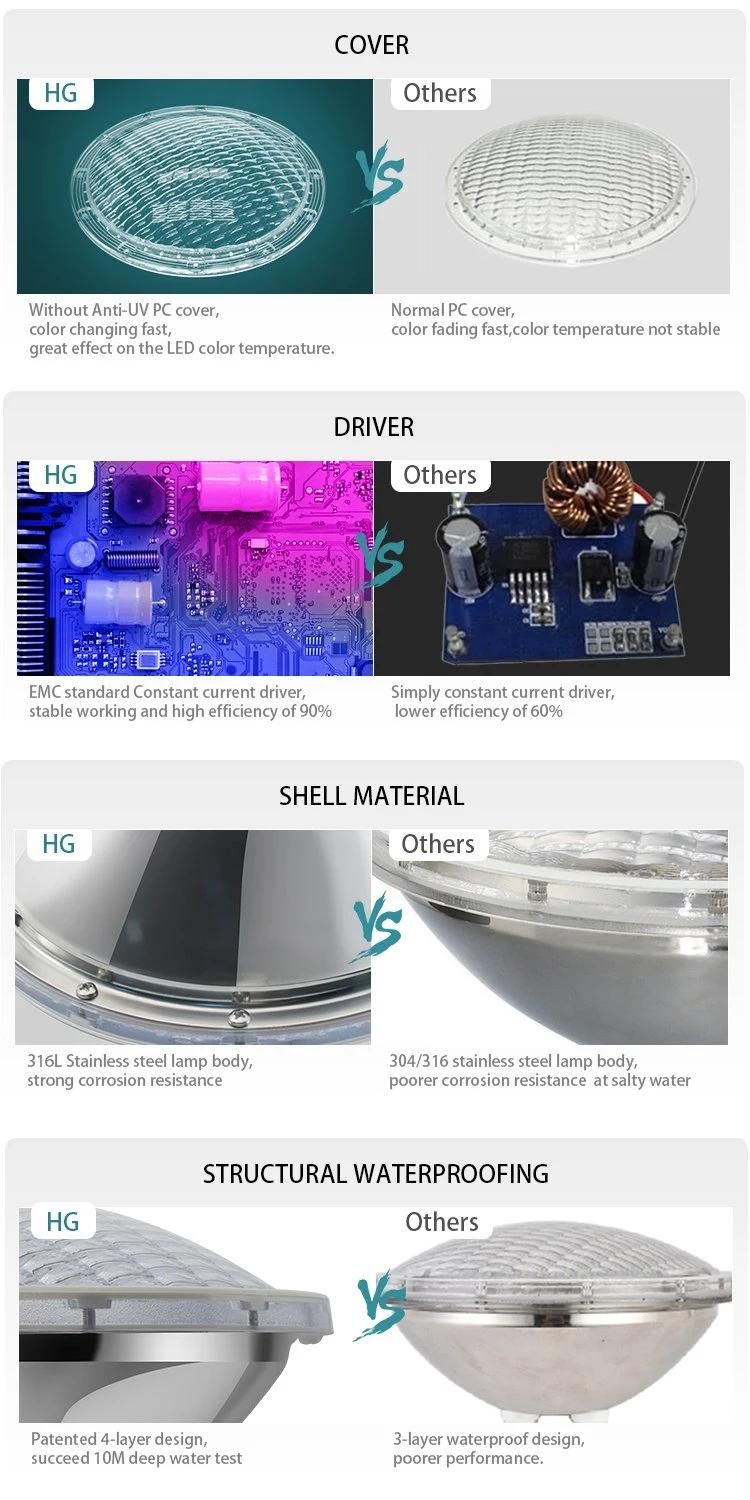

Compare to others:

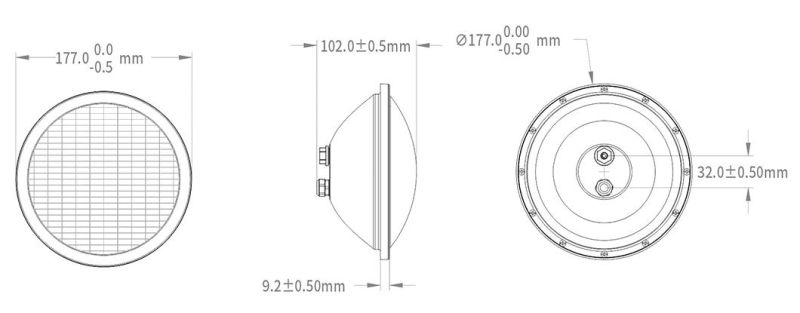

Product size:

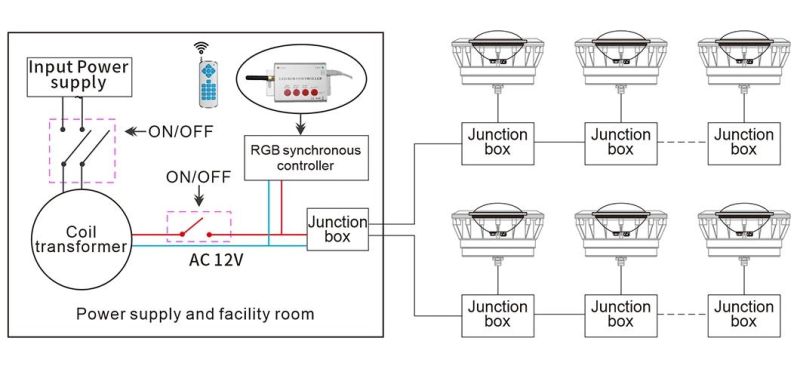

Connection Diagram:


Light fixture installation:

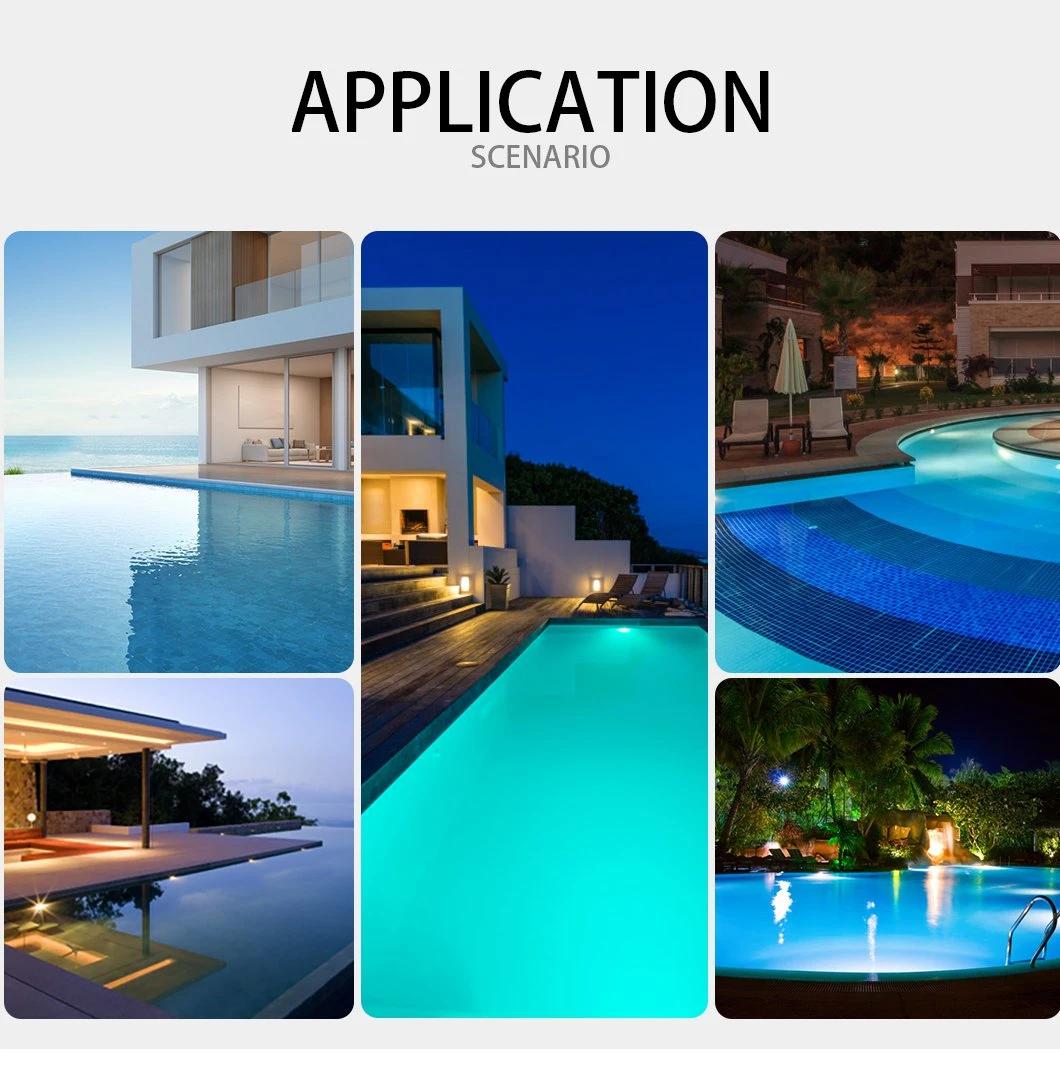

Application scenarios:



About Company:

In 2006, we began working in LED Underwater product development and production.Factory area of 2,000 square meters, we are a high-tech enterprise also the only one China supplier who is

Listed in UL certificate in Led Swimming pool light industry.



MAIN PRODUCTS
1.UL Certificated pool light
2.LED PAR56 pool light
3.LED Surface Mount LED Pool light
4.LED Fiberglass pool lights
5.LED Vinyl pool lights
6.LED Underwater Spot light
7.LED Fountain Light
8.LED Ground lights
9.IP68 Led Strip light
10.RGB Led Controller
11.IP68 par56 housing/Niche/fixture


Heguang LED pool lighting Certification :



Heguang Exhibitions :
We attend the lighting fair/spa fair all over the world ,such as the Germany lighting fair,US-LAS VEGAS lighting fair ,HK lighting fair ,Spain lighting fair ,France lighting fair ,etc .we aim to a win-win cooperation from all of our clients!


Why Choose Us


1.Heguang with 14 years experience specialized in LED pool light/IP68 underwater lights
2.Professional R&D team,Patent design with private mold, structure waterproof technology instead of glue filled
3.Experienced in different OEM/ODM project, artwork design for free
4.Strict quality control: 30 Steps inspection before shipment,reject ratio ≤0.3%
5.Quick response to the complains ,worry-free after-sale service
6.The only one pool light China supplier who listed in UL (for US and Canada)

FAQ

Some tips for you

Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.

Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.

Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip should be ≤120ºC, so the center temperature at the LED bottom of light board should be ≤ 80 ºC.

4 Q: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices, please call us directly or leave us the messge ,we will give priority to your inquiry.

5Q: May I get samples to test quality and how long can I get them?

A: Yes, samples can be ready in 3-5 days.

6Q: What is the MOQ?

A: NO MOQ,the more you order ,the cheaper price you will get .

7Q: Can you accept small trial order?

A: Yes

8Q: Do you accept the OEM&ODM?

A: Yes, OEM/ODM acceptable
