25years Solar Panel Lifespan Street Lighting with Solar
Jinhua SunMaster Solar Co., Ltd.- Light Source：LED Light
- Color Temperature(CCT)：Cool White
- Lamp Body Material：Aluminum Alloy
- Lamp Power：40W
- Power Supply：Solar
- Average Life：>8000h
Base Info
- Model NO.：SMLN-40W

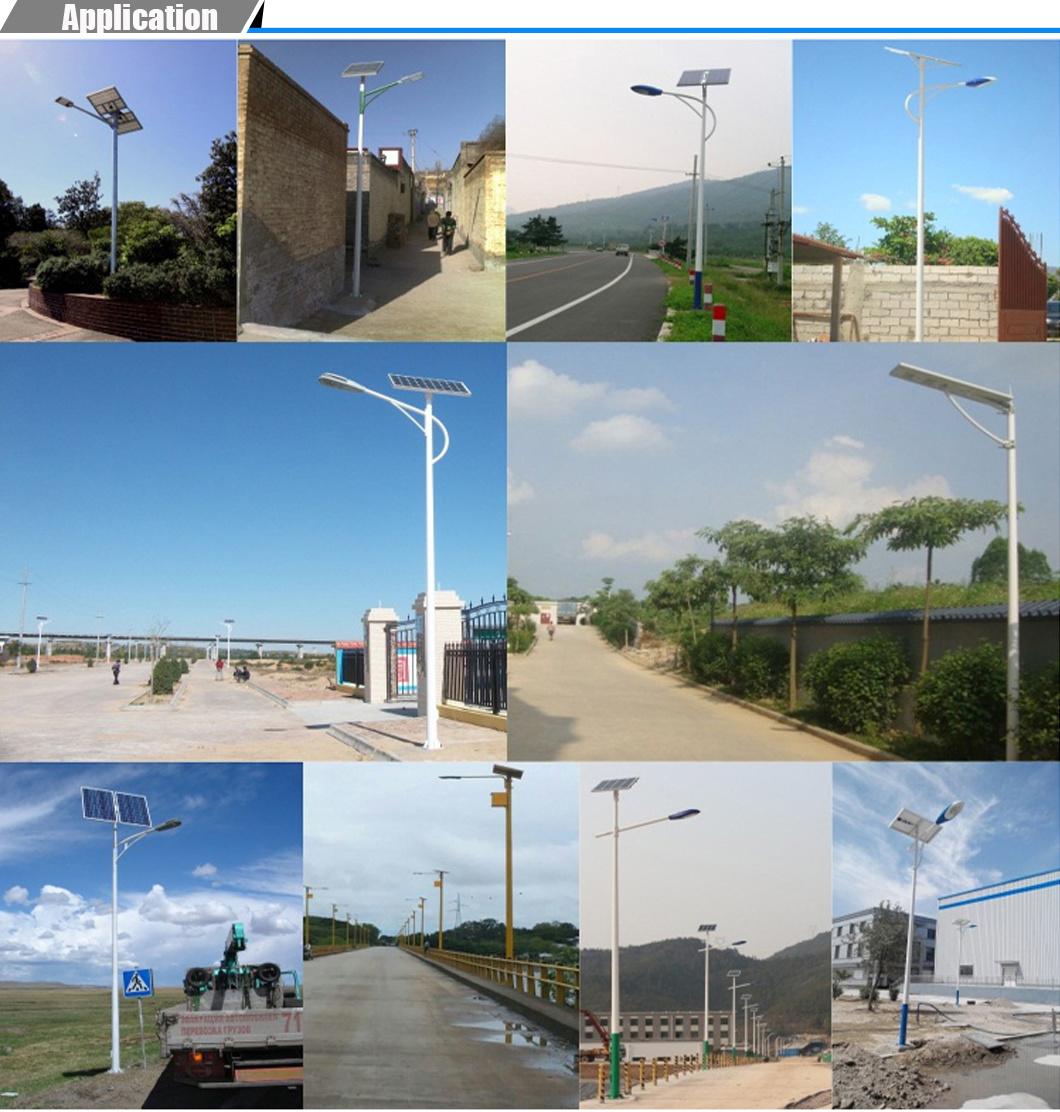

- Application：Highway, Square, Garden
- IP Rating：IP66
- Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
- Voltage：12V
- Lamp Luminous Flux(Lm)：2700
- Distance Between Poles：10-15m
- Pole Height：5m
- Solar Cells：Mono or Poly High Efficiency A Grade
- Dim/Non-Dim：Both Can Do
- Approval：Ce,RoHS,Coc,IEC Soncap
- OEM/ODM/Customized：Available
- Warranty(Year)：5 Years
- Lighting Area：100m²
- Lighting Time：Over 3 Nights
- Controller：MPPT
- Back up Days：3 Days
- Maintenance：8 Years Free Maintenance
- Mounting Height：3m 4m 5m 6m 7m
- LED Chip Brand：USA Bridgelux 210L
- Transport Package：Carten
- Specification：886x450x140mm
- Trademark：sunmaster
- Origin：Zhejiang, China
- HS Code：9405409000
- Production Capacity：1000PCS,Week
Description
Basic Info.
Model NO. SMLN-40W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Lamp Luminous Flux(Lm) 2700 Distance Between Poles 10-15m Pole Height 5m Solar Cells Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 5 Years Lighting Area 100m² Lighting Time Over 3 Nights Controller MPPT Back up Days 3 Days Maintenance 8 Years Free Maintenance Mounting Height 3m 4m 5m 6m 7m LED Chip Brand USA Bridgelux 210L Transport Package Carten Specification 886x450x140mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/WeekProduct Description
1.3-5 rainy /cloudy days backup 2.Dusk-to-Dawn 12 hours with dim energy saving mode 3.Lighting times can be individually adjusted with program switch. 4.Illuminance in operation depending on local site conditions (average daylight available) and customer-specific lighting times.
| Model NO. | SMLN-40W | Battery Type: | LiFePO4 27Ah/12.8V |
| Power: | 40W | Charging Time: | 6-10 hours |
| Color Temperature: | 6000-6500K | Discharging Time: | 10-12 hours |
| Certificate: | CE/ROHS/IP65 | Product Dimension: | 886*450*140mm |
| Viewing Angle: | 120 | Packing Dimension: | 940*510*200mm |
| Working temperature : | ,-20 ~ +70 | Product Weight | 19kg |
| Lamp Efficiency: | 70 lm/w | Material: | Aluminum Alloy |
| Led chip brand: | USA Bridgelux LED chip | Install Height: | 6-7 m |
| Solar Panel: | 18V 60W Mono-crystalalline | Warranty: | 3 years |
