Factory Price Outdoor Waterproof IP67 LED Solar Street Lighting with Panel
BAODE LIGHTING GROUP CO., LTD.- Light Source：LED Light
- Color Temperature(CCT)：Warm White
- Lamp Body Material：Aluminum Alloy
- Lamp Power：21-30W
- Power Supply：Solar
- Average Life：>8000h
Base Info
- Model NO.：BD-0168
- Application：Garden, Street
- IP Rating：IP67
- Certification：CE, RoHS
- Voltage：12,24V
- Controler：10A15A20A
- Color：According to The Client
- Charging Time (H)：10
- Illumination Time：10h
- Solar Panel：Polycrystal Monocrystal
- Surface Treatment：Galvanized Powder Coating
- LED Chips：Bridgelux CREE
- Tolerance：+-2%
- Working Lifetime(Hour)：50000
- Transport Package：Bubble
- Trademark：LUYOU
- Origin：Yangzhou Jiangsu China
- HS Code：940540900
- Production Capacity：1000set One Month
Description
ParametersSolar Module Pmax(W) 30-400W Vmp (V) 35.0V Imp (A) 2.86A Light Fixture Material Aluminum die casting & Toughened glass Operating Temperature -40°C~75°C Protection Level IP65 LED Light Source LED Chip BRIDGELUX / Cree (Top brand in U.S.A.) Color Temperature 3800-6500K(white) Luminous flux 5300 LM Operating temperature -40°C~75°C Current Source DC 12V/24V Power 15W/18W/21W/24W/30W/36W/42W/48W/54W/60W Lighting Pole Height 3m/ 4m/ 5m/ 6m/ 7m/ 8m/ 9m/ 10m/ 11m/ 12 m Material BAOSTEEL GROUP Q235/345/GR60 Surface Treatment Hot-dip galvanizing, Static spray, Size φ60-φ200,δ3-5m, vary according to models Flange Plate 300*300*16, vary according to models Battery Capacity 200AH (100AH*2pcs) Type Gel/AGM Battery Dimension 546*1203*30 Weight 28Kg Controller Rated voltage and current 12V/10A or 24V/10A waterproof Weight 0.165Kg Two times rainy day backup
&Protective Function Two times of rainy day backup.
Good protection: overcharging, discharging, voltage surge, reverse polarity, etc. Accessories Cable 2.5 mm2, 15m Battery Box 200AH ABS battery box or metal box with hot-dip galvanizing spray treatment Foundation Kit Dismountable foundation kit, saving in shipping
A GRADE high efficient solar panel
Mono: 18% convert efficiency
Poly: 17% convert efficiency
5 years warranty for solar panels
USA BRAND LED and Aluminum Section Bar Light Fixture
LED: BRIDGELUX/CREE
Long life time: 1W LED with 1 heat sink, fast heat dissipation makes it 100, 000 hours long life time
STRONGER POLE with 20 years life time
Larger diameter: Our pole is 10% larger in diameters
Thicker wall: We offer 0.25mm thicker pole than that of the market. For example, we offer 3mm thickness for 6m pole, while other, 2.5-2.75mm
Bigger foundation kits: For example, we offer M18-20*1000mm bolts for 6m light, while others, M16-18*800mm
Thicker zinc galvanization and painting: We offer 100 μ M zinc and coating than the standard 80 μ M
TWO TIMES rainy day backup waterproof controller
Rainy day backup: 2 times more rainy day backup, savings in battery
Combined LED driver and controller as one, easy to maintain
IP67: Ideal for high humidity and dust areas
Energy saving mode: THREE periods of power adjustment available
All metal shell: High strength and fast heat dissipation, giving long life time
BAODE guarantees the purchaser for the period of two (2) years that BAODE's new lighting systems will be free from defects in materials and workmanship. BAODE will, at its option, repair or replace any BAODE's system that is defective for a minimum of two (2) years after the date of purchase.
Installation
BAODE offers detailed instructions and videos for installation. Besides, BAODE can provide onsite installation training and technical assistance free of charge in initial period for large projects more than 100 poles because we has developed her experienced technical team.
Spare Parts Policy
BAODE provides 0.5% to 1% of spare parts for free based on the transaction amount.
After Sales
BAODE will offer technical guidance and repair service for the whole life time of her products.
BAODE promises to respond with customer's questions within 24 working-hours.
Payment terms: 30% in advance and 70% before shipment.
Lead time: 2~3 weeks upon receipt of payment for 50 poles.
Shipping: Generally, solar lights are shipped by sea. Battery and pole are not available to ship by air.
Package: Individual package for each component of solar light. Wooden box for LED lamp and solar panel for LCL goods. 80 poles load a 40 HP container for 8M solar street lights and 60-3.5m solar garden lights in a 20 container.
Company Information 21 Years Manufacturing Experience
Since 1998, we have started manufacturing street lighting. The 21 years' experiences have been a persuasive insurance for us to offer reliable products.
Large Factory with Complete Facility
We have 400 staffs with factory area 6000 m2. We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .
Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.

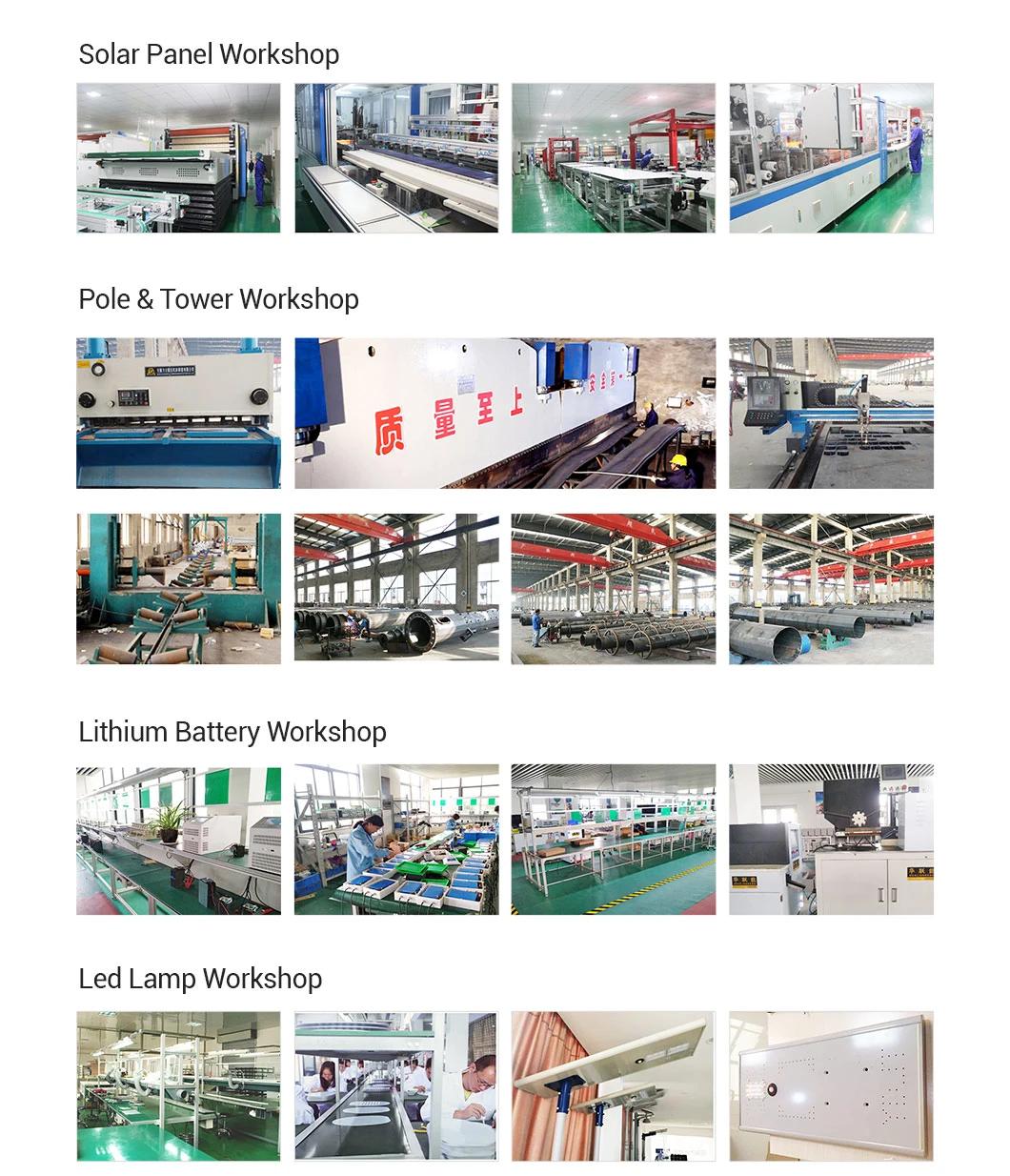

Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.
Factory outlet. There's no middleman between the manufacturer BAODE and domestic and oversea buyers.
