• Model NO.：DL-SLPAD-100W
• Illumination Time：12h
• Cell Type：LiFePO4 or Ternary Lithium
• Charging Time (H)：6
• Usage：Garden, Street, Highway
• IP Rating：IP65
• Certification：CE, RoHS, ISO
• Voltage：12,24V
• With Light Source：With Light Source
• Battery：12.8V 35ah LiFePO4,12V 30ah Ternary Lithium Batter
• LED Chips：Osram with High Brightness
• Lumen：7000-8000lm
• Lifetime：>=50,000 Hours
• Viewing Angle：120*120,150*80
• Charge Time：6 Hours in Strong Sunshine
• Working Temperature：-30~60 Celsius
• Colour Temperature：6000-6500K(Standard),2800-3300K,4000-4500K
• Height of Installation：6-8m
• Distance of Installation：20-25m
• Lamp Size：90*34*6(Cm)
• Carton Size：94*39*24(Cm)
• Net Weight：15kg
• Gross Weight：16kg

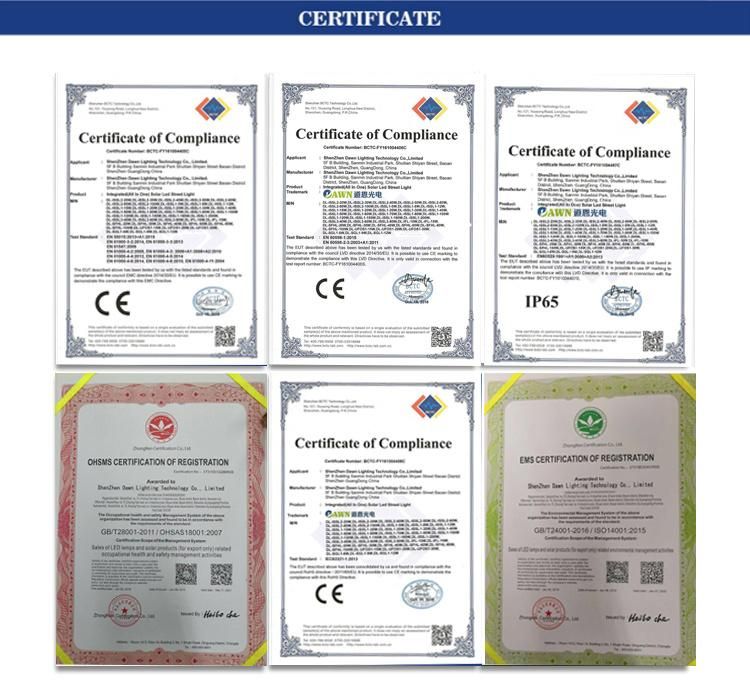

• Certificate：Ce(EMC&LVD) & RoHS & IP65
• Transport Package：Carton,Wooden Frame
• Specification：131*34*6cm
• Trademark：DAWN
• Origin：China
• HS Code：9405409000
• Production Capacity：60000units,Year

Model NO.DL-SLPAD-20WDL-SLPAD-30WDL-SLPAD-40WDL-SLPAD-50WDL-SLPAD-60WDL-SLPAD-80WDL-SLPAD-100WDL-SLPAD-120W

DL-SLPAD

150W

Lamp Power20W30W40W50W60W80W100W120W150WLed ChipsNichiaLumen2800-3200lm4200-4800lm5600-6400lm7000-8000lm8400-9600lm11200-12800lm14000-16000lm16800-19200lm21000-24000lmSolar Panel Power18V 40W18V 70W18V 70W18V 90W18V 90W18V 120W18V 120W18V 140W36V 160WSolar Panel Type High Efficiency Monocrystalline SiliconSolar Panel Lifetime25 YearsBattery TypePowerful Lithium Battery with 5-8 Years LifetimeInstalling Height5-6m5-6m5-6m6-8m6-8m8-9m9-10m9-10m10-12mInstalling Distance 15-18m15-18m18-20m20-25m20-25m25-30m25-30m25-30m25-30mWarranty3-5 Years

Product Features

1.Integrated design,all in one solar LED street light, solar panel,Led chips, battery,cotroller,motion sensor,etc, all in(on) a light,without extra cable, save shipping cost and labour cost.

2.Easy to ship,carry and install.

3.Energy saving and environment friendly by perfect combination of solar power and LED lighting.

4.High capacity and long life Lithium battery,5-year theoretical working life and high-temperature resistance, make the whole light a longer life.

5.Safe and reliable rain-proof & water-proof design.

6.Alumina Alloy is used for main structure in order to preventing dusty and corrosion,is also good for heat dissipation.

7.Different power control according to time period, lower brightness when less people after midnight, in order to saving energy and improve practicability.

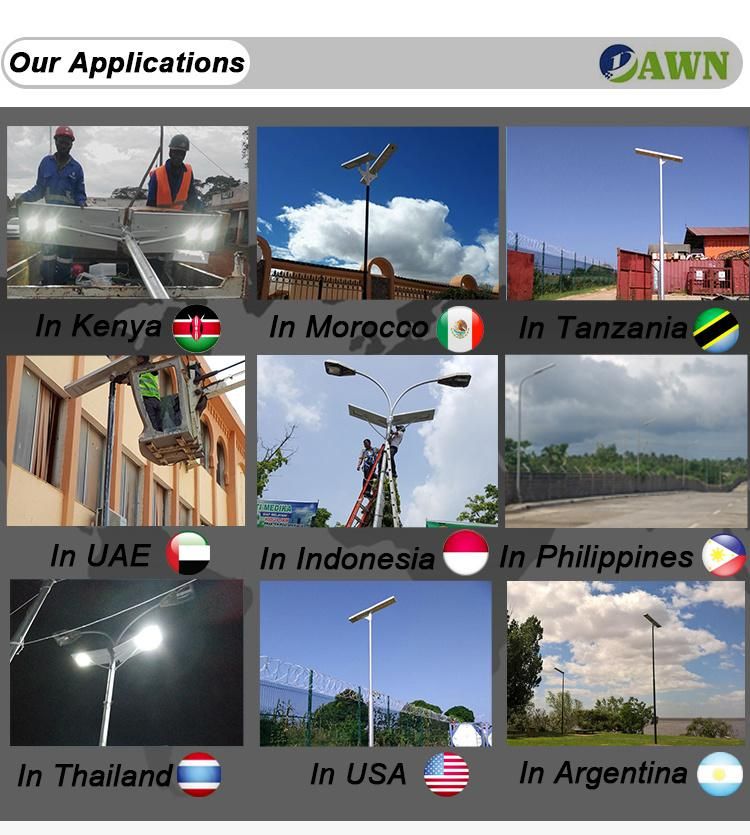

Our Integrated All In One Solar LED Street Lights are widely used for          following situations:



A:Street & Highway                    B:Garden                        C:Jogging and Bike Path

D:Entrance                                  E:Park Lot                       F:Perimeter Security

G:Yard                                          H:Boat Dock                   I:Sidewalk

J:Farm & Ranch                          K:Fence                          L:Private Road

M:Park                                          N:Campus                      O:Lakeside

P:outside of Museum,Library,Stadium,Music Hall           Q:Remote Area
