• Model NO.：DL-ISSL1C-70W
• Power：70W
• Technics：Electroplating
• Illumination Time：12h
• Cell Type：Ternary Lithium
• Charging Time (H)：6
• Usage：Garden, Street, Highway
• IP Rating：IP65
• Certification：CE, RoHS, ISO
• Voltage：12,24V
• With Light Source：With Light Source
• Solar Panel：18V 90W Monocrystalline Silicon
• Lifetime：25years
• Battery：12V 33ah Ternary Lithium Battery
• LED Chips：Bridgelux From USA
• Lumen：9800-11200lm
• Charge Time：6 Hours in Strong Sunshine
• Working Time：3-5 Continuous Rainy and Cloudy Days
• Working Temperature：-30~60 Celsius
• Colour Temperature：6000-6500K(Standard),2800-3300K,4000-4500K
• Height of Installation：7-9m
• Distance of Installation：20-25m
• Certificate：CE(EMC&LVD) & RoHS & IP65, ISO
• Carton Size：122*50*22(Cm)
• Net Weight：19kg
• Gross Weight：20kg
• Transport Package：Carton,Wooden Frame
• Specification：107*42*14(cm)
• Trademark：DAWN
• Origin：China
• HS Code：9405409000
• Production Capacity：60000units,Year

Model NO.

DL-ISSL1C-12W

DL-ISSL1C-15W

DL-ISSL1C-20W

DL-ISSL1C-30W

DL-ISSL1C-40W

DL-ISSL1C
-50WDL-ISSL1C-60W

LampPower

12W15W20W30W40W50W60WLumen1680-1920lm2100-2400lm2800-
3200lm4200-
4800lm5600-
6400lm7000-
8000lm8400-
9600lmSolar Panel Power18V 18W18V 30W18V 35W18V 40W18V 50W18V 70W18V 80WModel NO.DL-ISSL1C-70WDL-ISSL1C-80WDL-ISSL1C-100WDL-ISSL1C-120WDL-ISSL1C-150WDL-ISSL1C-180WDL-ISSL1C-200W

LampPower

70W80W100W120W150W180W200WLumen9800-
11200lm11200-12800lm14000-
16000lm16800-19200lm21000-
24000lm25200-
28800lm28000-
32000lmSolar Panel Power18V 90W18V 100W18V 120W36V 140W36V 220W36V 240W36V 240WSolar Panel Type High Efficiency Mono SiliconLED ChipsBridgelux/or other brandsSolar Panel Lifetime25 YearsBattery TypeLiFePO4 Battery with 5-8 Years LifetimeWarranty Years3-5 Years

Product Features

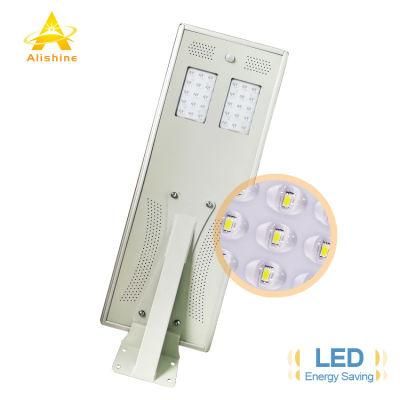

1.Integrated design,all in one solar LED street light, solar panel,Led chips, battery,cotroller,motion sensor,etc,
   all in(on) a light,without extra cable, save shipping cost and labour cost.

2.Easy to ship,carry and install.

3.Energy saving and environment friendly by perfect combination of solar power and LED lighting.

4.High capacity and long life Lithium battery,5-year theoretical working life and high-temperature resistance,
   make the whole light a longer life.

5.Safe and reliable rain-proof & water-proof design.

6.Alumina Alloy is used for main structure in order to preventing dusty and corrosion,is also good for heat dissipation.

7.Different power control according to time period, lower brightness when less people after midnight, in order to saving
   energy and improve practicability.

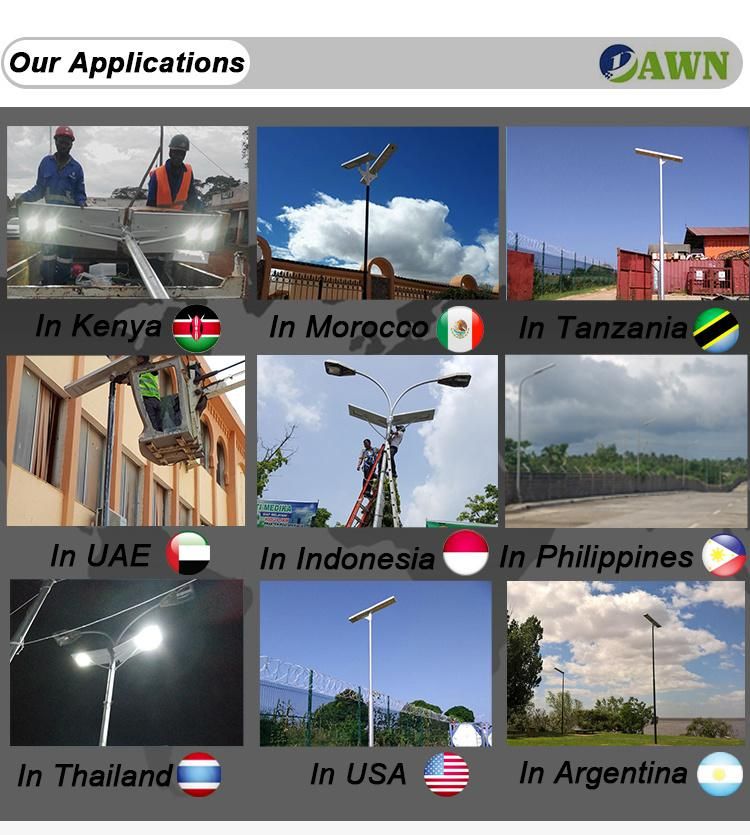

Our Integrated All In One Solar LED Street Lights are widely used for
ollowing situations:



A:Street & Highway                    B:Garden                        C:Jogging and Bike Path

D:Entrance                                  E:Park Lot                       F:Perimeter Security

G:Yard                                          H:Boat Dock                   I:Sidewalk

J:Farm & Ranch                          K:Fence                          L:Private Road

M:Park                                          N:Campus                      O:Lakeside

P:outside of Museum,Library,Stadium,Music Hall           Q:Remote Area
