High Quality IP65 Waterproof Outdoor LED Street Light
Ningbo Sunle Lighting Electric Co., Ltd.- Light Source：LED Light
- Color Temperature(CCT)：Cool White
- Lamp Body Material：Aluminum
- Lamp Power：25W-240W
- Power Supply：AC
- Average Life：>50000h
Base Info
- Model NO.：SLR06
- Application：Highway, Square, Garden
- IP Rating：IP66
- Certification：CE, RoHS
- Voltage：100V-265V
- Warranty：5 Years
- Finishes：White,Black,Gray
- System Light Effect：130 Lm,W
- Color Temperature：2700-6500K
- LED Chip：a Variety of Chips Can Be Selected
- Item：LED Street Light
- Working Temperature：-22 Degrees Fahrenheit to +122 Degrees Fahrenheit
- Specification：A variety of specifications can be selected
- Trademark：sunle
- Origin：Ningbo
- Production Capacity：10000 Pieces,Year
Description

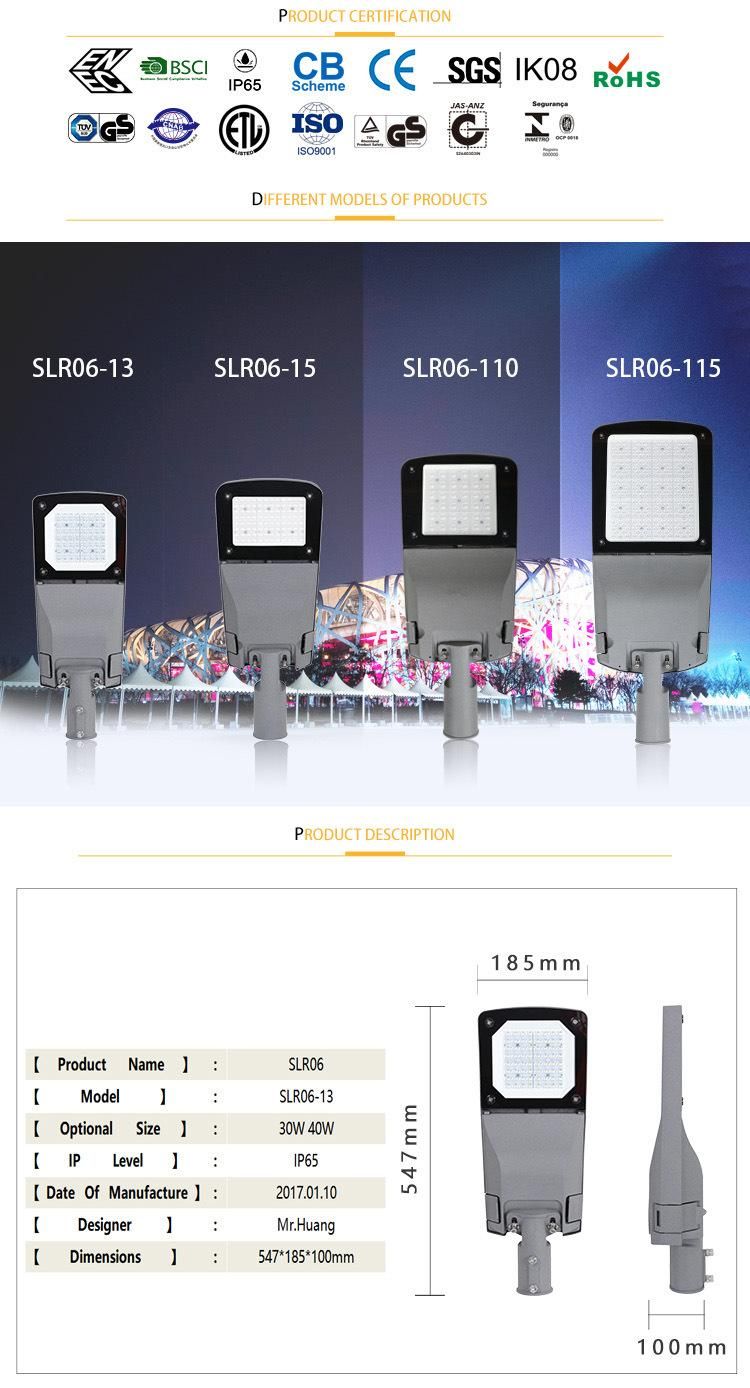

200W (R06-115)7.73KG/8.9KG L(MM) W(MM) H(MM) Product size (R06-13) 488 185 101 Product size (R06-15) 577 232.6 103.2 Product size (R06-110) 627 271.5 103.2 Product size (R06-115) 768 301 103.5 Packing size (R06-13) 520 210 120 Packing size (R06-15) 630 280 163 Packing size (R06-110) 670 310 160 Packing size (R06-115) 820 340 160
Application site
City road / tunnel lighting
Commercial lighting control
Solar street smart lighting control
Features
IP66 waterproof/dust proof/explosion proof/IK09
Aluminum shape good at heat dissipation
The lamp post can be adjusted to plus or minus 15 degrees
It can also be installed vertically
SMD 3030/ 5050/ Ra>70/SDCM<6
100,000 times switching cycle before failure
Total harmonic distortion(THD)<10%

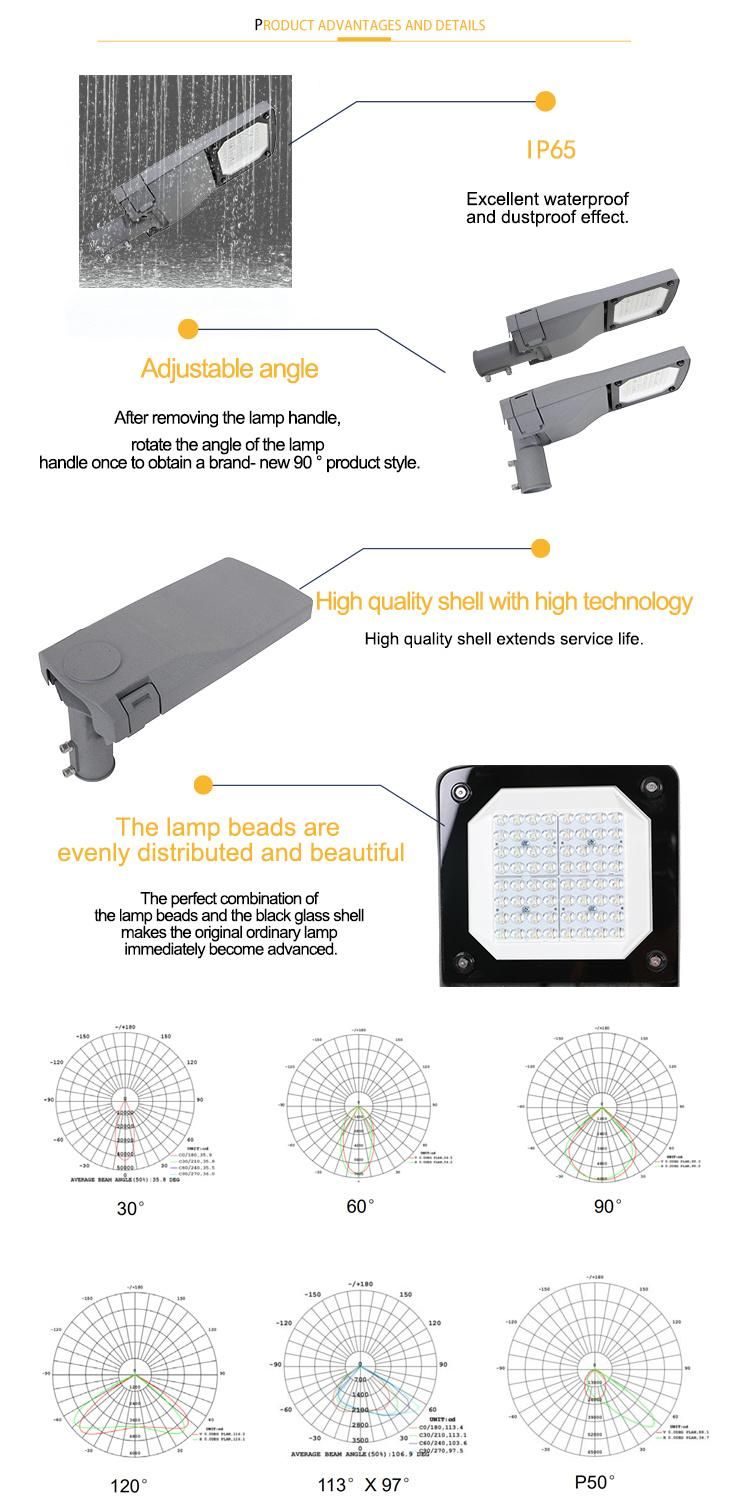

Excellent post light control design, the whole lamp can achieve T II-M, T III-M,That's our advantage
Pass 3G vibration test
Advantage
Easy to install
Strong system expansion ability and increase sensor devices
Low power consumption, large capacity , high stability
Matters needing attention
Before installing the lighting fixtures, please read this instruction manual carefully.
The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.
Lamps should always be installed or replaced carefully.
Please check the local voltage in accordance with the product requirements before installation.
Revamping only can be done when the power is off and the lamp is completely cooled down.
When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.
Don't cover the fixtures with flammable materials.
Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.
Application siteCity road / tunnel lighting
Commercial lighting control
Solar street smart lighting control
Features
IP66 waterproof/dust proof/explosion proof/IK09
Aluminum shape good at heat dissipation
The lamp post can be adjusted to plus or minus 15 degrees
It can also be installed vertically
SMD 3030/ 5050/ Ra>70/SDCM<6
100,000 times switching cycle before failure
Total harmonic distortion(THD)<10%
Excellent post light control design, the whole lamp can achieve T II-M, T III-M,That's our advantage
Pass 3G vibration test
Advantage
Easy to install
Strong system expansion ability and increase sensor devices
Low power consumption, large capacity , high stability
Matters needing attention
Before installing the lighting fixtures, please read this instruction manual carefully.
The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.
Lamps should always be installed or replaced carefully.
Please check the local voltage in accordance with the product requirements before installation.
Revamping only can be done when the power is off and the lamp is completely cooled down.
When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.
Don't cover the fixtures with flammable materials.
Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.
