• Model NO.：BD-0143
• Illumination Time：10h
• Cell Type：Ni-MH Battery
• Charging Time (H)：6
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：220V
• With Light Source：With Light Source
• Transport Package：Carton and Crate
• Specification：8-10m Pole
• Trademark：luyou
• Origin：Yangzhou Jiangsu China
• HS Code：94054090
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. BD-0143 Illumination Time 10h Cell Type Ni-MH Battery Charging Time (H) 6 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 220V With Light Source With Light Source Transport Package Carton and Crate Specification 8-10m Pole Trademark luyou Origin Yangzhou Jiangsu China HS Code 94054090 Production Capacity 5000PCS/Month

Product Description

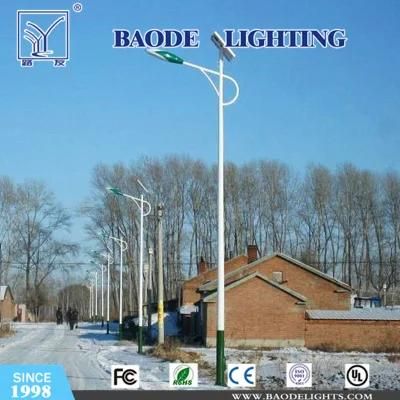

Outdoor 30W/40W/50W/60W/80W/100W/120W  Solar Street Light with Lithium Battery

Specifications



30-400W solar street lights

Light Fixture

Material

Aluminum die casting & Toughened glass

Operating Temperature

-40°C~75°C

Protection Level

IP65

LED Chip

BRIDGELUX / Cree (Top brand in U.S.A.)

Color Temperature

3800-6500K(white)

Luminous flux

5300 LM

Operating temperature

-40°C~75°C

Current Source

DC 12V/24V

Power

15W/18W/21W/24W/30W/36W/42W/48W/54W/60W

Lighting Pole

Height

3m/ 4m/ 5m/ 6m/ 7m/ 8m/ 9m/ 10m/ 11m/ 12 m

Material

BAOSTEEL GROUP Q235/345/GR60

Surface Treatment

Hot-dip galvanizing, Static spray,

Size

φ60-φ200,δ3-5m, vary according to models

Flange Plate

300*300*16, vary according to models

Battery

Capacity

200AH (100AH*2pcs)

Type

Gel/AGM Battery

Dimension

546*1203*30

Weight

28Kg

Controller

Rated voltage and current

12V/10A or 24V/10A waterproof

Weight

0.165Kg

Two times rainy day backup

&Protective Function

Two times of rainy day backup.

Accessories

Cable

2.5 mm2, 15m

Battery Box

200AH ABS battery box or metal box with hot-dip galvanizing spray treatment

Foundation Kit

Dismountable foundation kit, saving in shipping

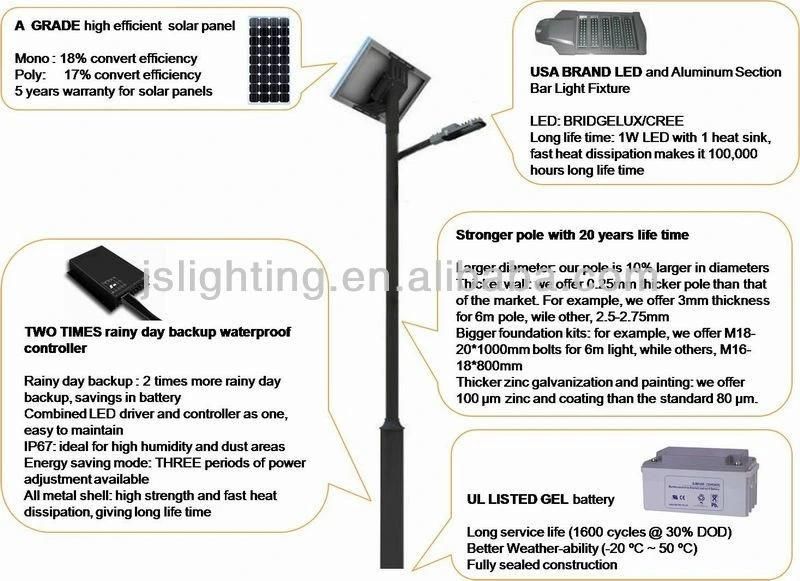

Solar LED Light Details





A GRADE high efficient solar panel

Mono: 18% convert efficiency

Poly: 17% convert efficiency

5 years warranty for solar panels



USA BRAND LED and Aluminum Section Bar Light Fixture

LED: BRIDGELUX/CREE

Long life time: 1W LED with 1 heat sink, fast heat dissipation makes it 100,000 hours long life time



STRONGER POLE with 20 years life time

Larger diameter: our pole is 10% larger in diameters

Thicker wall: we offer 0.25mm thicker pole than that of the market. For example, we offer 3mm thickness for 6m pole, while other, 2.5-2.75mm

TWO TIMES rainy day backup waterproof controller

Rainy day backup: 2 times more rainy day backup, savings in battery

Combined LED driver and controller as one, easy to maintain

IP67: ideal for high humidity and dust areas

UL LISTED GEL battery

Long service life (1600 cycles @ 30% DOD)

Better Weather-ability (-20 ºC ~ 50 ºC)

Fully sealed construction

 Standard Features

- Solar panel: 20 years power generation capacity

- LED light: ultra bright LEDs that last up to 50,000 hours

- Controller: typical operating life of 10 year, auto ON/OFF operation

- Pole: up to 25 years long life time

- Battery: long life of up to 5 years

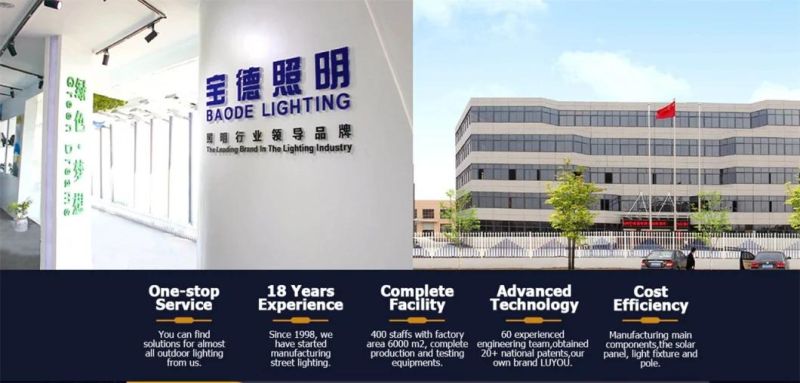

Company Information 21 Years Manufacturing Experience
 Since 1998, we have started manufacturing street lighting. The 21 years' experiences have been a persuasive insurance for us to offer reliable products.

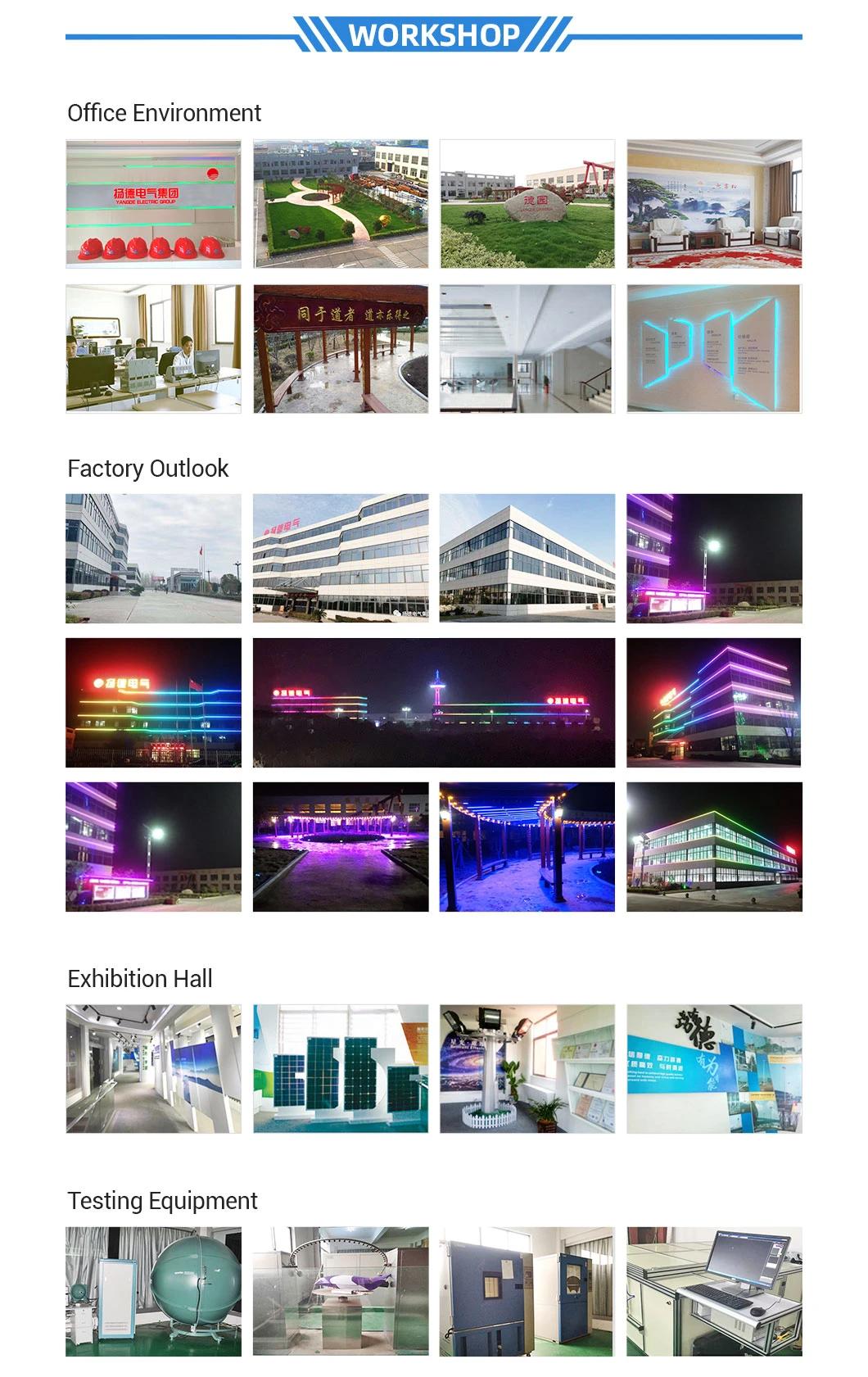

 Large Factory with Complete Facility

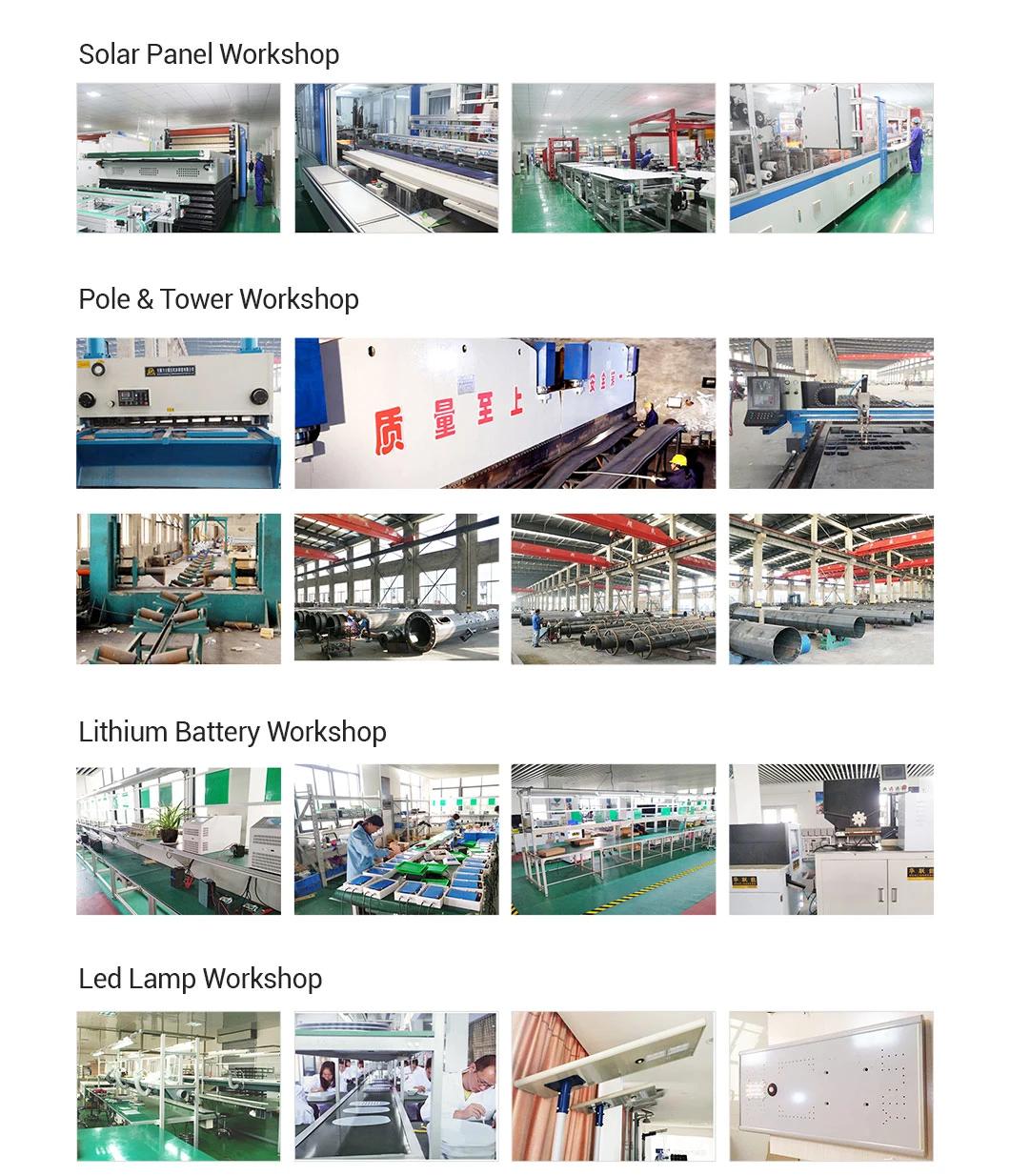

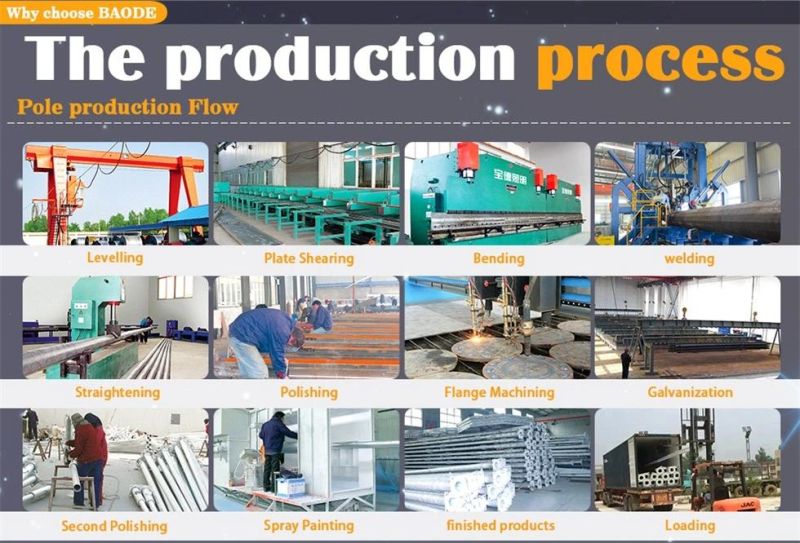

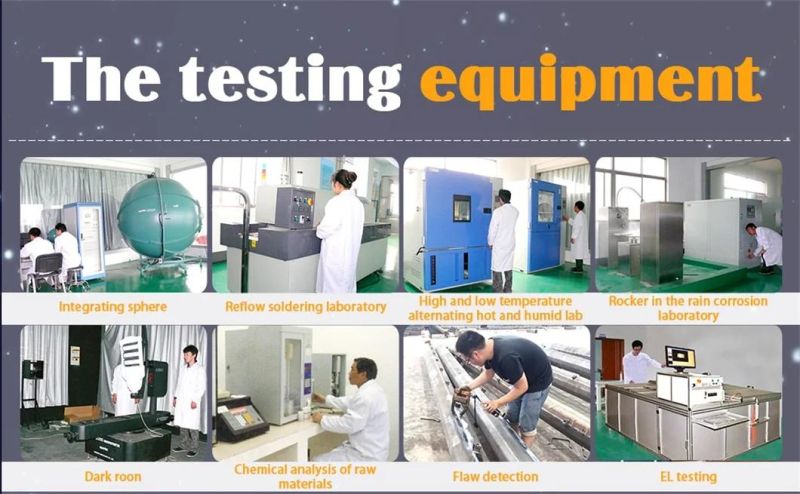

 We have 400 staffs with factory area 6000 m2.  We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .
  Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.
  Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.
  Factory outlet. There's no middleman between the manufacturer BAODE and domestic and oversea buyers.
