• Model NO.：SMLN-100W
• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• Warranty(Year)：10 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• CRI (Ra>)：90
• Working Lifetime(Hour)：10000
• Beam Angle：150*70°
• Working Mode：Full Power and Motion Sensor
• Lighting Area：100m²
• Lighting Time：Over 5 Nights
• Controller：PWM,MPPT
• Back up Days：4 Days
• Maintenance：9 Years Free Maintenance
• Mounting Height：7m
• Battery：56ah
• Transport Package：Carten
• Specification：1593X450X45mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-100W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Warranty(Year) 10 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC CRI (Ra>) 90 Working Lifetime(Hour) 10000 Beam Angle 150*70° Working Mode Full Power and Motion Sensor Lighting Area 100m² Lighting Time Over 5 Nights Controller PWM/MPPT Back up Days 4 Days Maintenance 9 Years Free Maintenance Mounting Height 7m Battery 56ah Transport Package Carten Specification 1593X450X45mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

Product Description

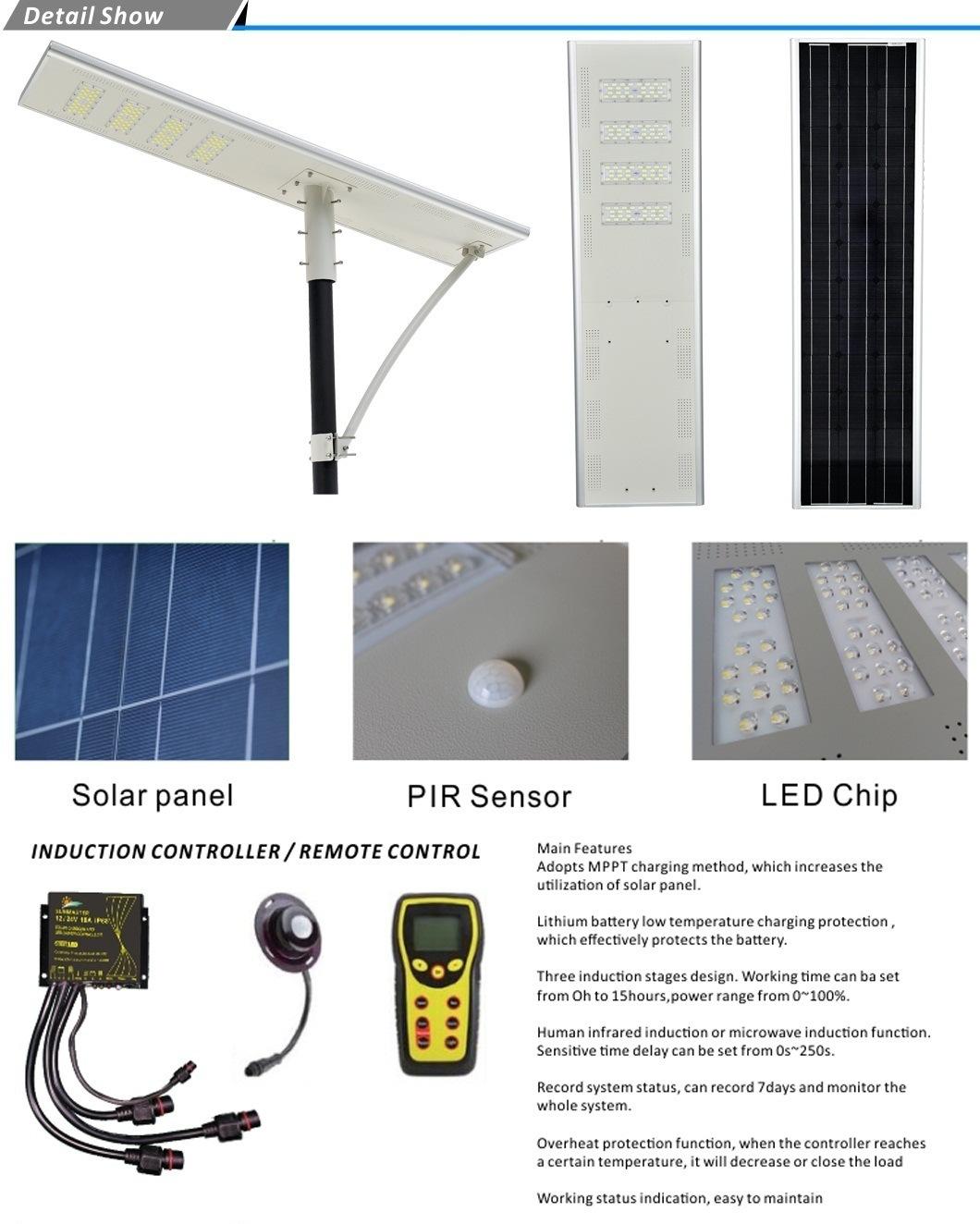

1.Consisting of solar panel,battery,controller and LED light.
2.Large capacity lithium battery,standby time is longer by PIR sensor.

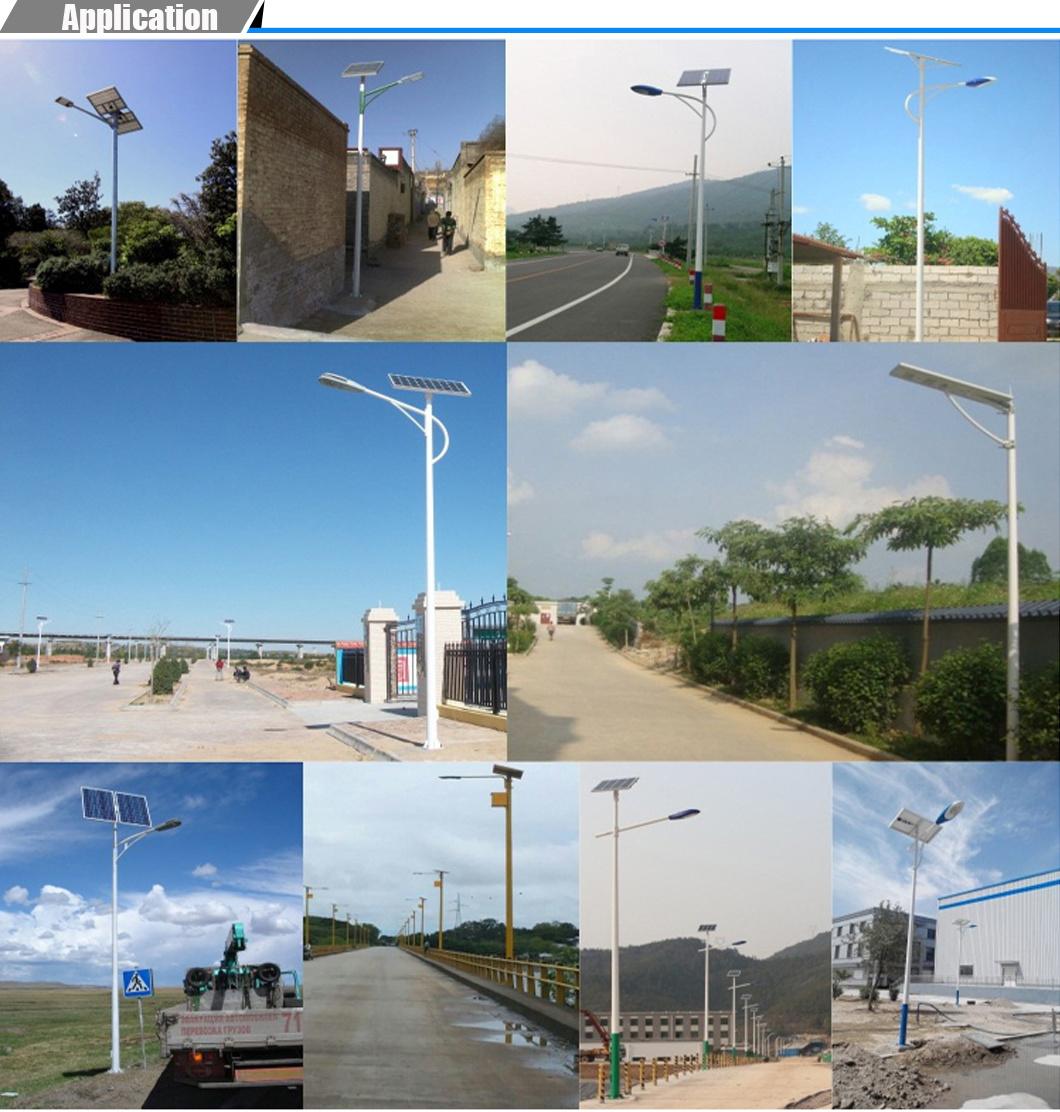

3.Can be installed in public road,private garden,villiage road,parking lot,walkway etc.
4.High illumination flux up to 180lm/watt.
5.MPPT Controller  built in PIR motion sensor.

Model NO.	SMLN-100W	Battery Type:	LiFePO4 30Ah/25.6V
Power:	100W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1593*450*45mm
Viewing Angle:	120	Packing Dimension:	1640*505*150mm
Working temperature :	,-20 ~ +70	Product Weight	28.74kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	9-12 m
Solar Panel:	18V 130W Mono-crystalalline	Warranty:	3 years
