• Model NO.：SMLN-100W
• Illumination Time：12h
• Cell Type：LiFePO4 Lithium
• Charging Time (H)：8
• Usage：Garden
• IP Rating：IP65
• Certification：CE, RoHS, IEC Soncap
• Voltage：12,24V
• With Light Source：With Light Source
• Lamp Luminous Flux(Lm)：18000
• Distance Between Poles：10-15m
• Pole Height：8m
• Power Supply：Solar, Wind Power or Grid Power Hybrid Availabel
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• OEM/ODM/Customized：Available
• Warranty(Year)：5 Years
• CRI (Ra>)：90
• Working Lifetime(Hour)：10000
• Beam Angle：145*100°
• Working Mode：Full Power and Dim Mode
• Lighting Area：100m²
• Lighting Time：Over 5 Nights
• Controller：PWM,MPPT
• Transport Package：Carton, Pallet
• Specification：1144*450*470mm
• Trademark：Sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：200000

Basic Info.

Model NO. SMLN-100W Illumination Time 12h Cell Type LiFePO4 Lithium Charging Time (H) 8 Usage Garden IP Rating IP65 Certification CE, RoHS, IEC Soncap Voltage 12/24V With Light Source With Light Source Lamp Luminous Flux(Lm) 18000 Distance Between Poles 10-15m Pole Height 8m Power Supply Solar, Wind Power or Grid Power Hybrid Availabel Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 5 Years CRI (Ra>) 90 Working Lifetime(Hour) 10000 Beam Angle 145*100° Working Mode Full Power and Dim Mode Lighting Area 100m² Lighting Time Over 5 Nights Controller PWM/MPPT Transport Package Carton, Pallet Specification 1144*450*470mm Trademark Sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 200000

Product Description

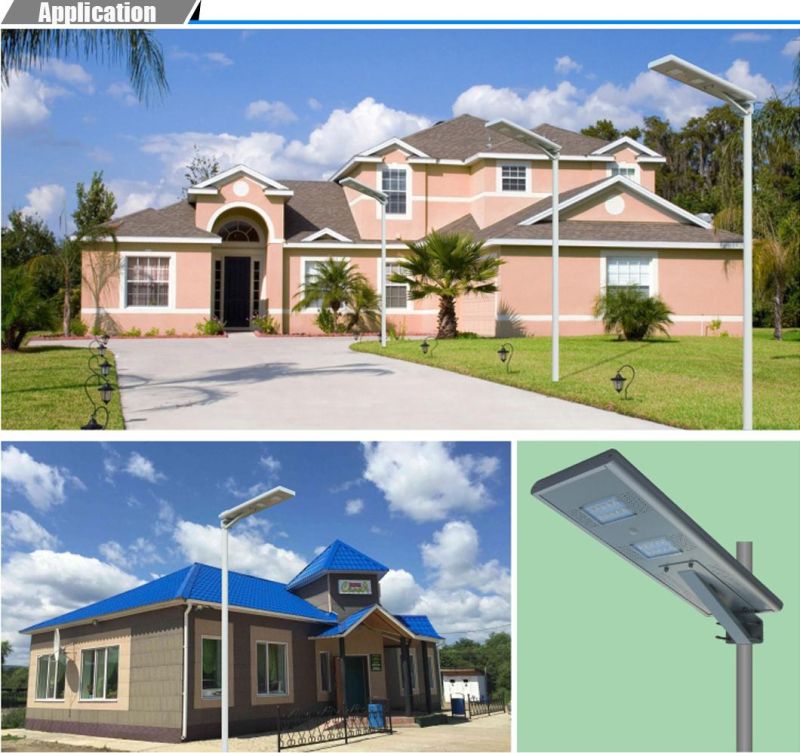

1.Can be mounted on pole or  wall.
2.Proffesional lighting distribution to enlarge the lighting area.

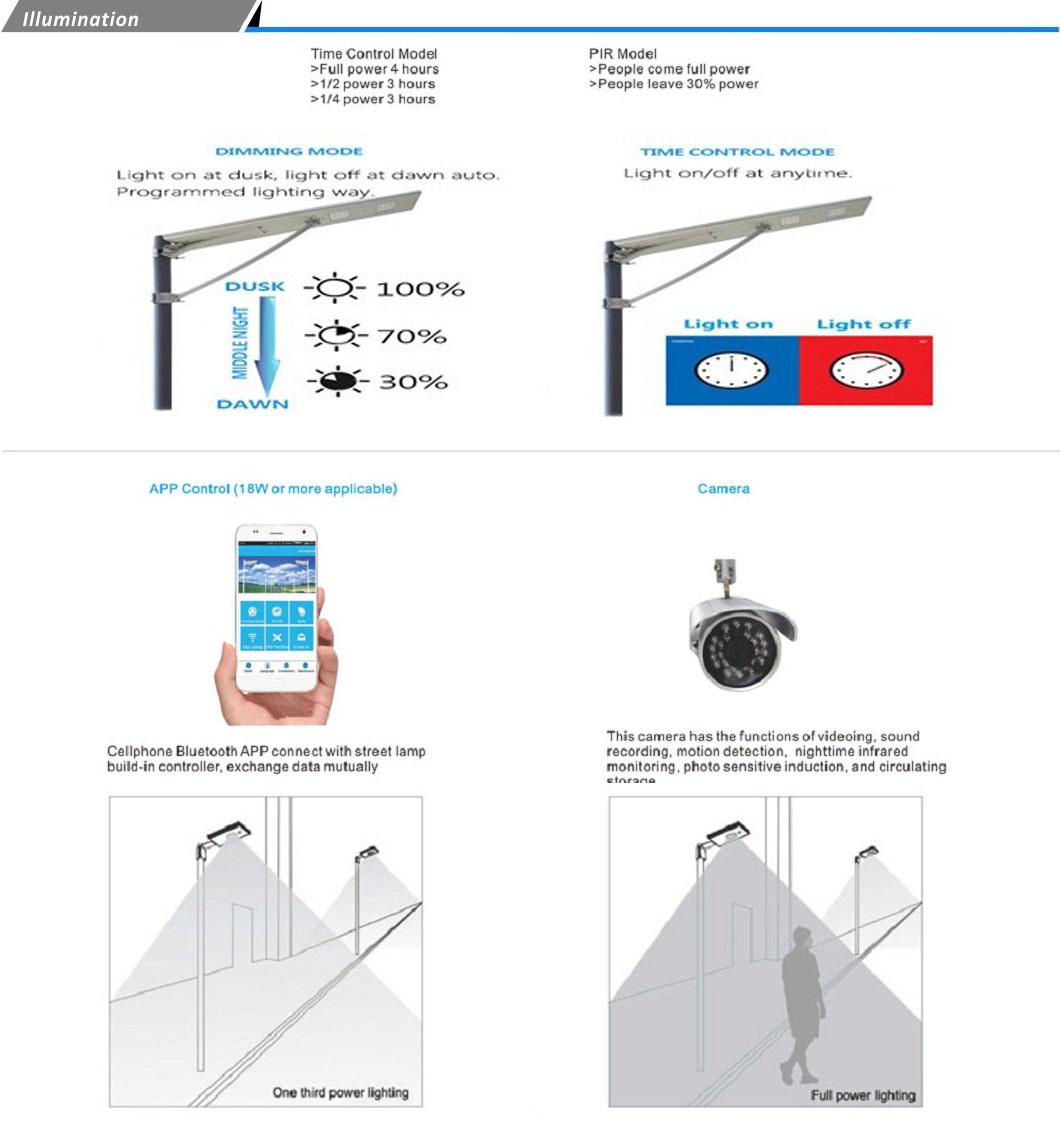

3.PIR remote control to setting the timer/brightness,ON/OFF.
4.Easy for home use install,super bright LED light.
5.Sensitive PIR Motion Sensor with wide detective distance,waterproof IP65

Model NO.	SMLN-100W	Battery Type:	LiFePO4 30Ah/25.6V
Power:	100W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1593*450*45mm
Viewing Angle:	120	Packing Dimension:	1640*505*150mm
Working temperature :	,-20 ~ +70	Product Weight	28.74kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	9-12 m
Solar Panel:	18V 130W Mono-crystalalline	Warranty:	3 years
