• Model NO.：SMLN-110W,120W
• Color Temperature：3500K-6500K
• Power：120W
• Technics：Die Cast
• Illumination Time：12h
• Cell Type：LiFePO4 Lithium
• Charging Time (H)：12
• Usage：Garden, Street, out Door Court, Road
• IP Rating：IP67
• Certification：CE, RoHS, TUV
• Voltage：12,24V
• With Light Source：With Light Source
• Warranty(Year)：10 Years
• CRI (Ra>)：90
• Working Lifetime(Hour)：50000
• Beam Angle：145*100°
• Working Mode：Full Power and Dim Mode
• Lighting Time：Over 6 Nights
• Controller：Light+ Time Control
• Back up Days：6 Days
• Maintenance：10 Years Free Maintenance
• Mounting Height：6m
• Battery：60ah
• Solar Panel：130W
• Lamp Luminous Flux(Lm)：21600
• LED Chip Brand：USA Bridgelux 210lm,W
• Distance Between Poles：9-14m
• Transport Package：Carton, Pallet
• Specification：1593X450X45mm
• Trademark：SunMaster
• Origin：Zhejiang China
• HS Code：9405409000
• Production Capacity：20000,Year
• Package size per unit product：110.00cm * 50.00cm * 20.00cm
• Gross weight per unit product：3200.000kg

Basic Info.

Model NO. SMLN-110W/120W Color Temperature 3500K-6500K Power 120W Technics Die Cast Illumination Time 12h Cell Type LiFePO4 Lithium Charging Time (H) 12 Usage Garden, Street, out Door Court, Road IP Rating IP67 Certification CE, RoHS, TUV Voltage 12/24V With Light Source With Light Source Warranty(Year) 10 Years CRI (Ra>) 90 Working Lifetime(Hour) 50000 Beam Angle 145*100° Working Mode Full Power and Dim Mode Lighting Time Over 6 Nights Controller Light+ Time Control Back up Days 6 Days Maintenance 10 Years Free Maintenance Mounting Height 6m Battery 60ah Solar Panel 130W Lamp Luminous Flux(Lm) 21600 LED Chip Brand USA Bridgelux 210lm/W Distance Between Poles 9-14m Transport Package Carton, Pallet Specification 1593X450X45mm Trademark SunMaster Origin Zhejiang China HS Code 9405409000 Production Capacity 20000/Year

Packaging & Delivery

Package size per unit product 110.00cm * 50.00cm * 20.00cm Gross weight per unit product 3200.000kg

Product Description

1.2000 cycle Li-ion battery,10 years  life.
2.Support more than 10 rainy days with the best technology
3.210lm/W super bright led chip

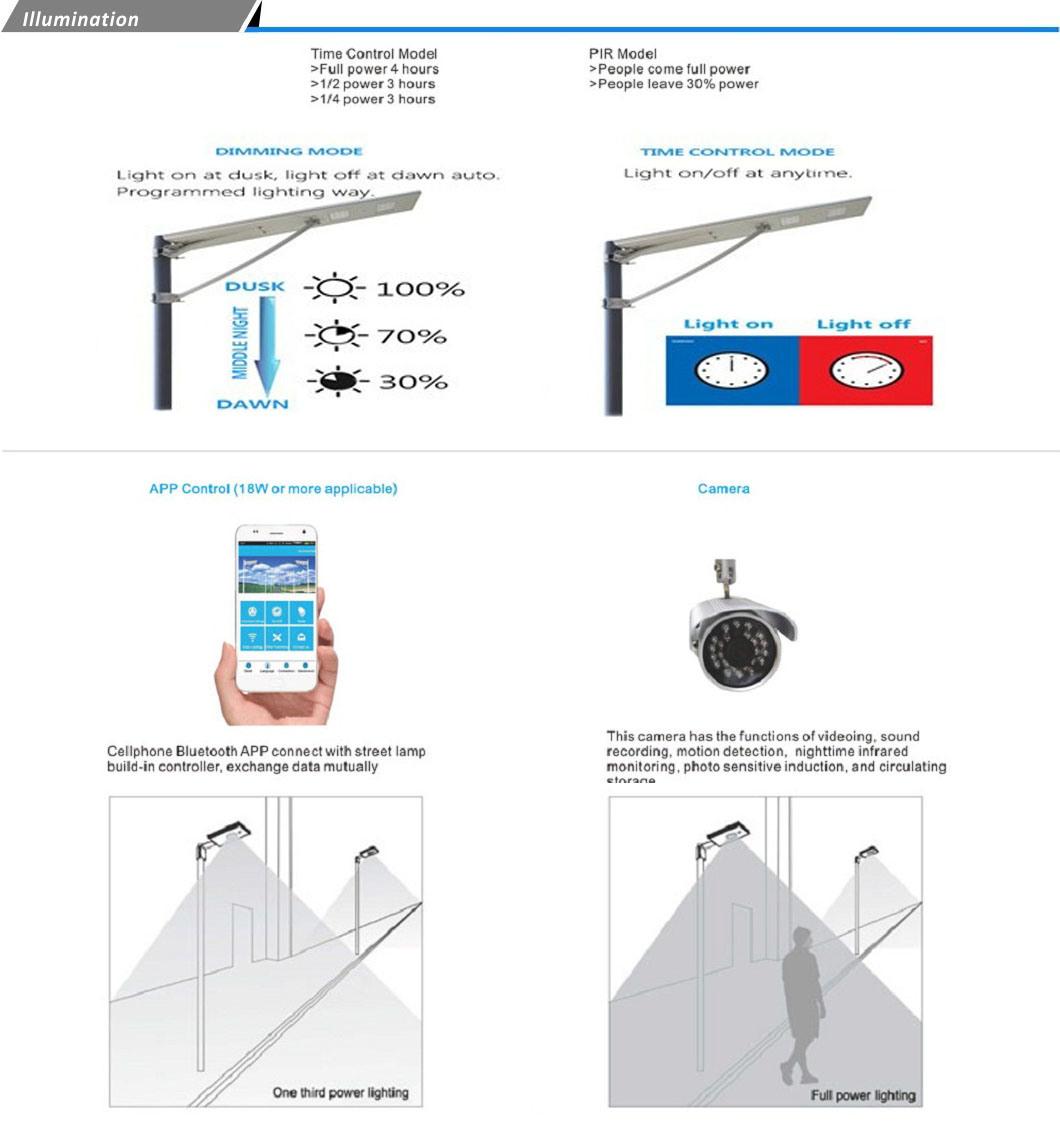

4. 3 Lighting Mode for choosing, motion sensor for energy saving.
5.Detachable design of battery pack and led chip,easy to maintenance.
6. All in one design with patent,Aluminum alloy case,Waterproof IP65.
7.Turn on at dusk and tun off at dawn automatically.

Model NO.	SMLN-120W	Battery Type:	LiFePO4 32Ah/25.6V
Power:	120W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1593*450*45mm
Viewing Angle:	120	Packing Dimension:	1640*505*150mm
Working temperature :	,-20 ~ +70ºC	Product Weight	29.74kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	9-12 m
Solar Panel:	18V 130W Mono-crystalalline	Warranty:	3 years
