• Model NO.：STL12-60W
• Lamp Power：60W
• Power Supply：Solar
• Average Life：>8000h
• Application：Highway, Square, Garden
• IP Rating：IP65
• Certification：CE, RoHS, CCC, ISO, GS
• Voltage：DC12V
• Solar Panel Type：Mono or Poly
• Controller：Smart MPPT
• Charging Time：5-8hrs Depends on Local Solar Radiation
• Working Mode：Full Power and Dim Mode
• Lighting Space：>17m
• Back up Days：5 Days
• Mounting Height：3m 4m 5m 6m 7m
• Lighting Time：Dusk-to-Dawn 12 Hours with Dim Energy Saving Mode
• Distance Between Poles：15-22m
• Battery Type：Gel Battery
• Transport Package：Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric
• Specification：A Grade
• Trademark：SunMaster
• Origin：Zhejiang, China.
• HS Code：9405409000
• Production Capacity：3, 000PCS ,Month
• Package size per unit product：110.00cm * 50.00cm * 20.00cm
• Gross weight per unit product：3200.000kg

Basic Info.

Model NO. STL12-60W Lamp Power 60W Power Supply Solar Average Life >8000h Application Highway, Square, Garden IP Rating IP65 Certification CE, RoHS, CCC, ISO, GS Voltage DC12V Solar Panel Type Mono or Poly Controller Smart MPPT Charging Time 5-8hrs Depends on Local Solar Radiation Working Mode Full Power and Dim Mode Lighting Space >17m Back up Days 5 Days Mounting Height 3m 4m 5m 6m 7m Lighting Time Dusk-to-Dawn 12 Hours with Dim Energy Saving Mode Distance Between Poles 15-22m Battery Type Gel Battery Transport Package Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric Specification A Grade Trademark SunMaster Origin Zhejiang, China. HS Code 9405409000 Production Capacity 3, 000PCS /Month

Packaging & Delivery

Package size per unit product 110.00cm * 50.00cm * 20.00cm Gross weight per unit product 3200.000kg

Product Description

1.Super bright LED lamp,patent Integrated Design,IP66 Aluminum alloy case,plug and play waterproof connectors.
2. Mono crystalalline solar panel and LiFeP04 Lithium battery,easy installation.
3.lighting control and  time control with Intelligent  smart system.
4.3 to 5 days backup without sunshine.
5.Expandable components

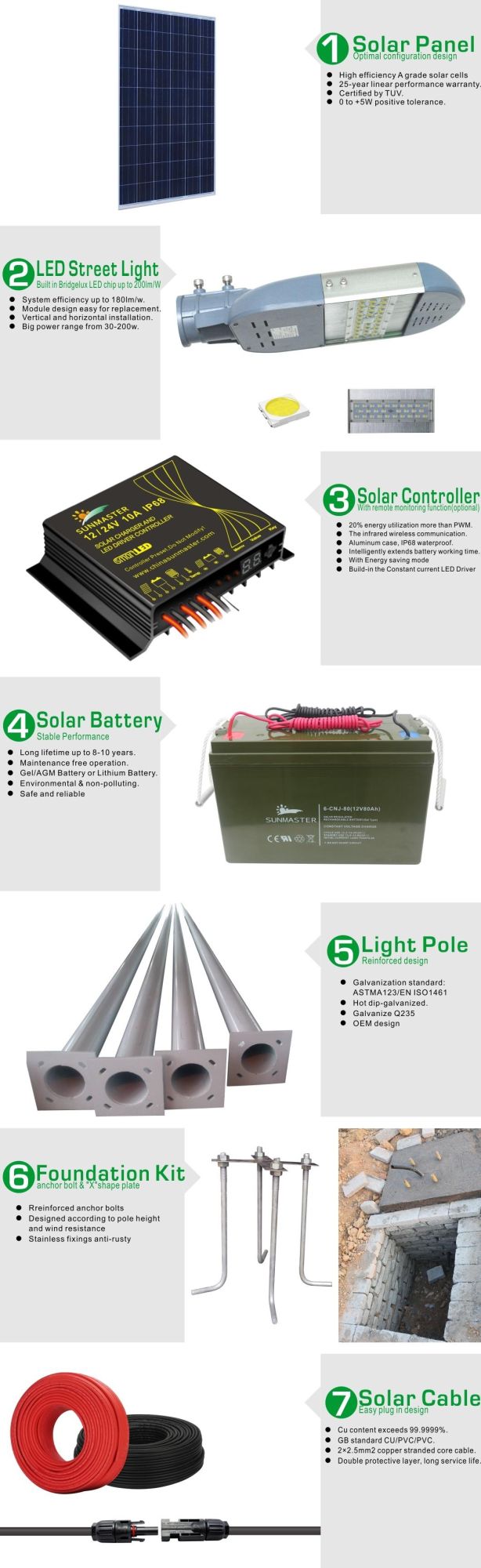

Specification



Lighting Time	10-14hrs/day(adjustable),3-7 rainy days back-up
Solar Panel	Poly solar panel 150W(optional)*1pcs,high efficiency,life span >25years 80% rated output power
Gel Battery	Capacity 60Ah/12v(optional)*2pcs,free maintenance,better weather-ability(-20ºC to +55ºC) Deep cycle 3500 times @ 30% DOD,low self discharge rate,life span>8 years
Solar Controller	MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP68 over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years
LED Lamp	LED power 60w,USA Bridgelux LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w, IP65 or higher,CRI>70Ra,C.T. 3000-6500k(optional),life span>100,000hrs
Light Pole	Q235 steel material,hot-dip galvanized and powder coating,equipped with lamp arm/solar panel mounting bracket/flange/fittings/foundation kit,wind resistance>150km/h,life span>20 years



Solar Battery Installtion Position



Working Mode



Product Benefits

Recommended configurations



Lamp	Pole	Solar Panel	GEL Battery	Lighting Space	Controller	Working Hours	Backup
20w	3-4m	50w*1pcs	40Ah*1pcs	>12m	MPPT	10-14 hours	3-5days
30w	4-5m	80w*1pcs	60Ah*1pcs	>14m	MPPT	10-14 hours	3-5days
40w	5-6m	100w*1pcs	80Ah*1pcs	>15m	MPPT	10-14hours	3-5 days
50w	6-7m	120w*1pcs	50Ah*2pcs	>17m	MPPT	10-14 hours	3-5days
60w	7-8m	150w*1pcs	60Ah*2pcs	>20m	MPPT	10-14 hours	3-5 days
70w	7-8m	180w*1pcs	70Ah*2pcs	>22m	MPPT	10-14 hours	3-5 days
80w	8-9m	200w*1pcs	80Ah*2pcs	>24m	MPPT	10-14 hours	3-5 days
90w	8-9m	120w*2pcs	90Ah*2pcs	>24m	MPPT	10-14 hours	3-5 days
100w	9-10m	130w*2pcs	100Ah*2pcs	>27m	MPPT	10-14 hours	3-5 days
120w	10-11m	150w*2pcs	120Ah*2pcs	>30m	MPPT	10-14 hours	3-5 days
140w	11-12m	180w*2pcs	140Ah*2pcs	>33m	MPPT	10-14 hours	3-5 days
150w	11-12m	200w*2pcs	150Ah*2pcs	>33m	MPPT	10-14 hours	3-5 days
180w	12-13m	250w*2pcs	180Ah*2pcs	>35m	MPPT	10-14 hours	3-5 days
200w	12-13m	280w*2pcs	200Ah*2pcs	>35m	MPPT	10-14 hours	3-5 days
