• Model NO.：JP-95591
• Application：Swimming Pool, Fountain, Pond, Aquarium and Other Underwater Illumination
• Certification：CE, RoHS, EMC, IP68 Test Report
• Voltage：12,24VDC
• With Light Source：With Light Source
• Style：Modern Simplism Style
• LED Source：9X1w Single Color
• LED Color：Cw,Ww,Pw,R,G,B,Yellow Is Avaliable
• LED Chip：Bridgelux,CREE,Epistar
• Beam Angle：8,15,25,30,45,60 Degrees
• Driver：Built-in Constant Current Output
• Life Span：>30000hrs
• Body Size：Dia152*H89mm
• Power Cable：Rubber
• Other Models：9W,18W,27W,36W Single Color, RGB 3in1, RGBW 4in1
• Transport Package：Shockproof Carton Box
• Specification：4PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：2000 PCS,Months

Basic Info.

Model NO. JP-95591 Application Swimming Pool, Fountain, Pond, Aquarium and Other Underwater Illumination Certification CE, RoHS, EMC, IP68 Test Report Voltage 12/24VDC With Light Source With Light Source Style Modern Simplism Style LED Source 9X1w Single Color LED Color Cw/Ww/Pw/R/G/B/Yellow Is Avaliable LED Chip Bridgelux/CREE/Epistar Beam Angle 8/15/25/30/45/60 Degrees Driver Built-in Constant Current Output Life Span >30000hrs Body Size Dia152*H89mm Power Cable Rubber Other Models 9W/18W/27W/36W Single Color, RGB 3in1, RGBW 4in1 Transport Package Shockproof Carton Box Specification 4PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 2000 PCS/Months

Product Description

IP68 9W LED Underwater Light,LED Underwater Spot light,9W LED Fountain Light,9W LED Underwater Bracket Light,LED Underwater Spotlight,LED Swimming Pool Light, Swimming Pool Light, LED Pool Light

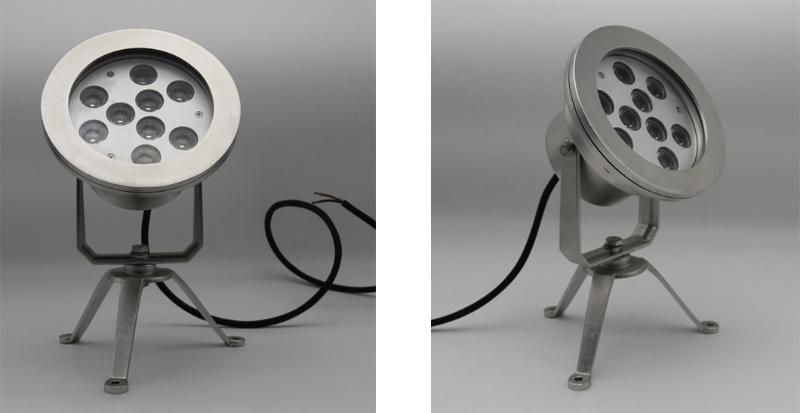

The underwater spot light has 9 SMD LEDs, high power and ultra bright. RGB or RGB 3in1 can form a variety of colors and could be easily controlled via a DMX decoder/driver. It includes easy-to-mount stainless steel tripod, with mounting holes located in the tripod feet for screwing down the unit.

Main Features

1. Stainless steel 304# or 316# housing, bracket and front cover, super corrosion resistance.
2. Step tempered glass 8mm thickness, clear and high light transmittance.
3. Structural waterproof grade IP68, not afraid of any water or wet environment.
4. Constant current driver, no flash, fast response to reach the current, safe use.
5. Single color and RGB color are available to fit your requirements.
6. CE and RoHS proved, IP68 test report.
7. CREE/BRIDGELUX/OSRAM LEDs, high efficient light source, low power consumption.
8. Long life up to 50,000 hours.

Main Specifications
Front Cover & Housing: Molding shaped stainless steel 304#/316# (316L# available as special order)
Bracket: Stainless steel 304# or 316#
LED Source: 9*1W / 2W / 1W RGB / 2W RGB / 3W RGB3in1
Lens: Optical lens, efficiency ≥85%
Glass: Tempered glass T=8mm
Cable gland: IP-68 PG-11 copper and nickel coated
Light Color: Single color/ RGB
Working temperature: -20ºC to 40ºC
PCB: Excellent heat conductivity Aluminum, coefficient of heat conductivity≥2.0w/mk
Gasket: Molding shaped silicone seal
Power cable: H05RN-F 2x0.75mm² L=2m (for Single color)
H05RN-F 4x0.75mm² L=2m (for RGB)

Product Models

Item No.	Lighting Source	Lens Beam Angle (°)	Consumption(Watt)	Input Voltage(V)	IK Rate
95591	9x1W LED	8°/15°/25°/30°/45°/60°/90°	9.1	DC24V/DC12V	08
95592	9x2W LED	8°/15°/25°/30°/45°/60°/90°	18.5	DC24V/DC12V	08
95593	9x1W RGB LED (3R, 3G, 3B)	8°/15°/25°/30°/45°/60°/90°	8.9	DC24V/DC12V	08
95594	9x2W RGB LED (3R, 3G, 3B)	8°/15°/25°/30°/45°/60°/90°	18.2	DC24V/DC12V	08
95596	9x3W RGB 3in1 LED	25°/30°/45°/60°/90°	25.2	DC24V	08
95599	9x4W RGB 4in1 LED	25°/30°/45°/60°/90°	36	DC24V	08

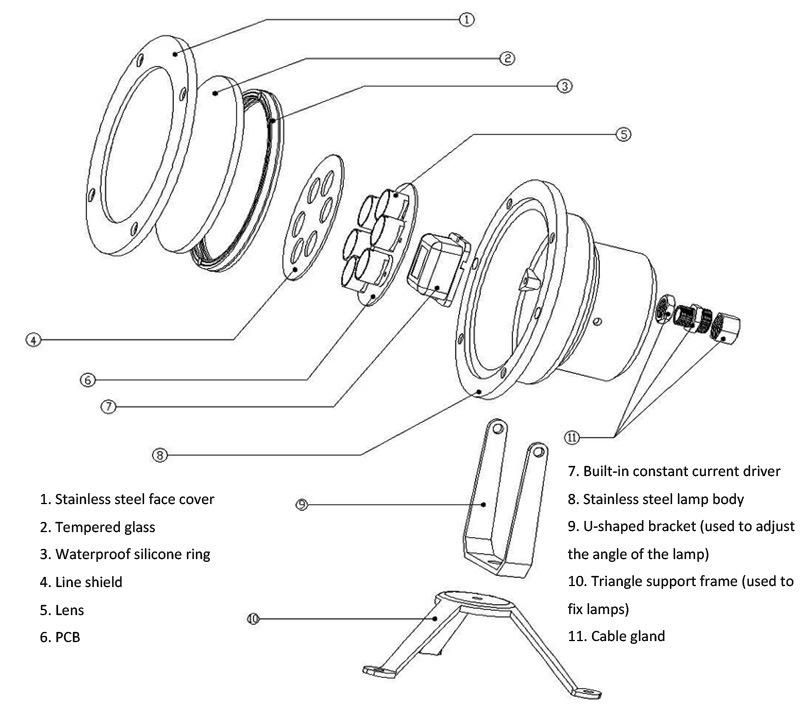

Product Dimension

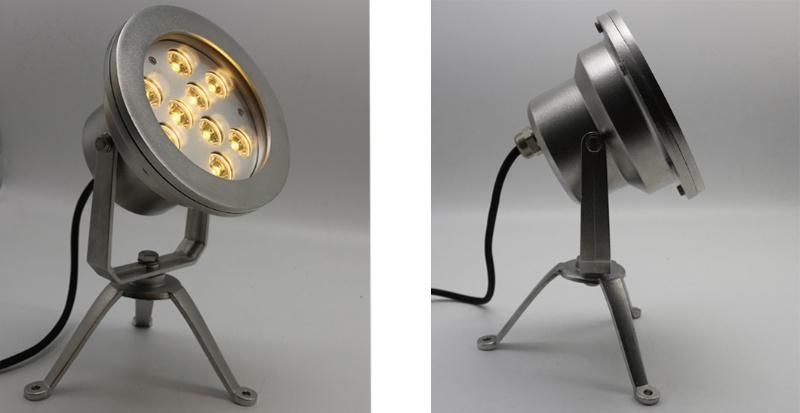

Product Image

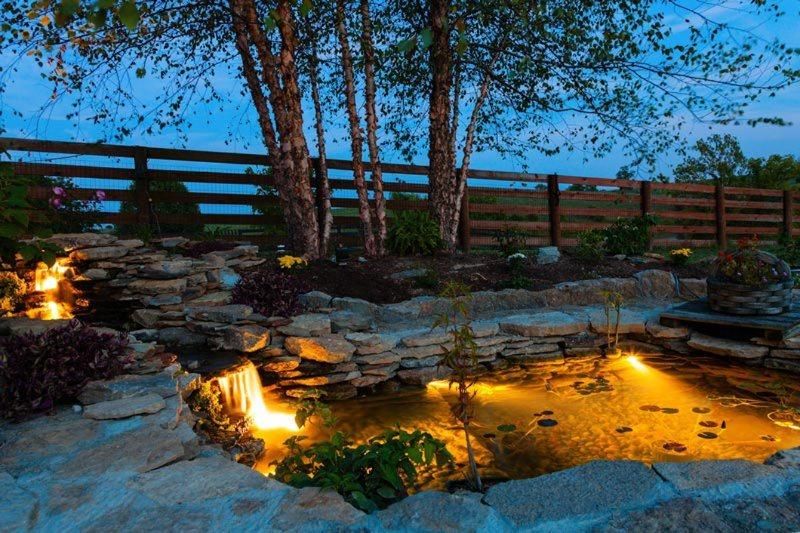

Product Application
This series of LED underwater spot lights are bright, energy efficient, and modern design, they are ideal for installation in fish ponds,
hotel pools, water shows, park fountains, waterfalls, shopping centers, amusement parks, sea aquariums...Suitable for the lighting
construction of anywhere there is water.

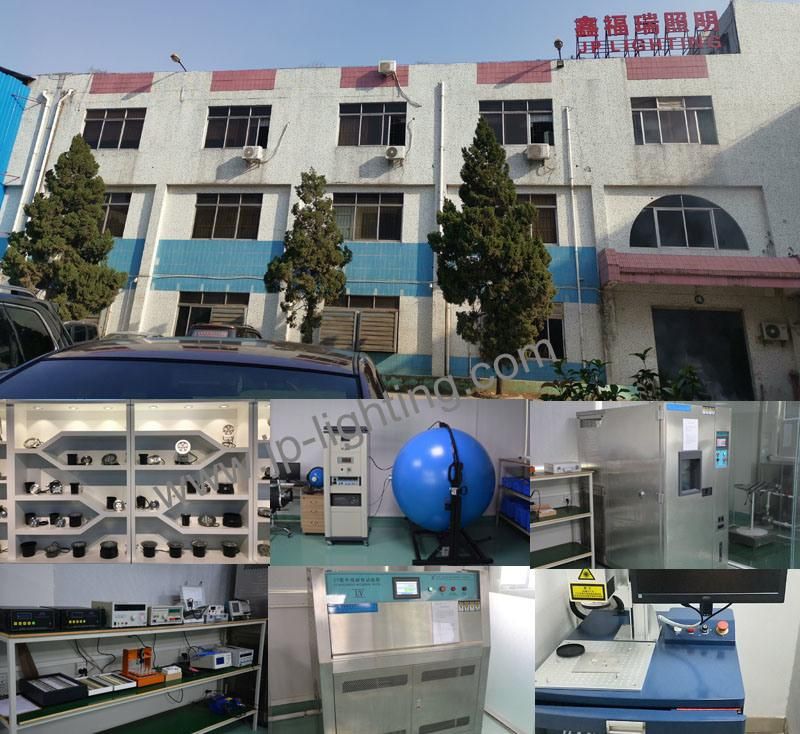

Factory Picture

Packaging and shipping

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What are your main products?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 working days for sample making.
2.15-30 working days for mass products production time. It is up to the quantity.

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long do you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle do you need?
6.What's the quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
