• Model NO.：XT-LSL-001
• Technics：Electroplating
• Illumination Time：12h
• Cell Type：Gel Battery
• Charging Time (H)：12
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Keyword：Solar Street Light
• Charge Time：6-8 Hours
• Working Temperature：-20 - 60
• Service Life (Hours)：80000h
• Color Rendering Index (Ra>)：75
• Power Supply：Solar DC
• Solar Panel：Monocrystalline Silicon
• LED Chip：Bridgelux Chip 45mil
• Dimension：640*250*70mm
• Sensor：Motion Sensor + Light Sensor
• LED Power：40W,60W,80W,100W,150W,200W
• Pole：Hot-DIP Galvanized
• Transport Package：Carton Box
• Specification：14 LM,W
• Trademark：XINTONG
• Origin：Jiangsu, Yangzhou
• HS Code：9405409000
• Production Capacity：200000

Basic Info.

Model NO. XT-LSL-001 Technics Electroplating Illumination Time 12h Cell Type Gel Battery Charging Time (H) 12 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Keyword Solar Street Light Charge Time 6-8 Hours Working Temperature -20 - 60 Service Life (Hours) 80000h Color Rendering Index (Ra>) 75 Power Supply Solar DC Solar Panel Monocrystalline Silicon LED Chip Bridgelux Chip 45mil Dimension 640*250*70mm Sensor Motion Sensor + Light Sensor LED Power 40W/60W/80W/100W/150W/200W Pole Hot-DIP Galvanized Transport Package Carton Box Specification 14 LM/W Trademark XINTONG Origin Jiangsu, Yangzhou HS Code 9405409000 Production Capacity 200000

Product Description

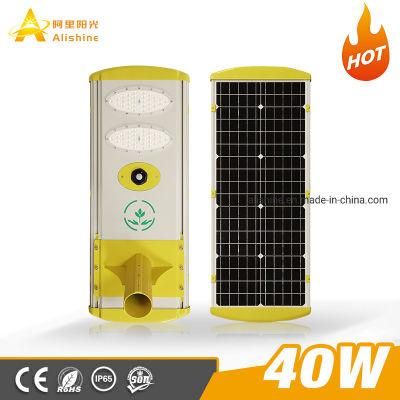

 ALL IN ONE INTEGRATED SOLAR STREET LIGHT DETAILS SPECIFICATION
30W 40W 50W 60W 80W 100W
Product description:

PAD series put high efficiency mono solar panel,intelligent MPPT charge controller,deep cycle long life LifePO4battery,high lumen led bridgelux 3030 led chip all in one box,easy to install and transportation.


Product features:

1.Put solar panelled chip,charge controller and battery are in one box,professional industrial design team design.
2.Use High end die-cast aluminum forming,with high-end, atmosphere, andic oxidation treatment desi appearance,lmpact and high temperature resistance,excellent corrosion resistance.
3.With Intelligent power regulation, automatic judgment of weather, reasonable planning of discharge discipline.
4.With intelligent remote control,UVA technology,long distance remote control,Wearable obstacle,have 4 modes lightingmode for choose,adjust brightness function and so on.
5.With intelligent discharge management,Charge and discharge soft and hard dual protection and intelligent equalizationtechnology,deep cycle more than 2000times.
6.For total lamp can reach 17OLM/W,More than twice the average brightness of ordinary LED sources,view angle is 140degree,lighting more area.
7.With lP65 waterproof IP grade,can work in water in a short time.8.Very easy disassemble,install and transportation

Working characters:

The solar panel converts sunlight into electricity and stored in lithium battery via controller, the LED light will work at nightautomatically by light sensor control, and provide lighting for the darkness area, the intelligence induction system cansave the energy when the high-brightness lighting is not necessary.

User-friendly design, easy to assemble:

PAD series is integrated design,lamp body without glue.Compared with any other design light which Non-removablereplacement product,PAD design all in one solar lights each parts very easy to maintain and replacement.cut cost also.All the connector have label,all cables use waterproof male and female plug connectors,avoid connect wrong.Stylingdesign,Reflect the rigorous and humane custom spirit of lamps.

Intelligent microwave induction:

PAD desig all in one solar street lights use intelligent microwave induction,sensor more than 12M distance,lt's two tothree times than traditional PlR motion senor,Have solved traditional microwave induction is easily disturbed.Microwavesensor ensure effective lighting,environmental and energy saving.
